Lamborghini Murcielago Roadster - Front Suspension

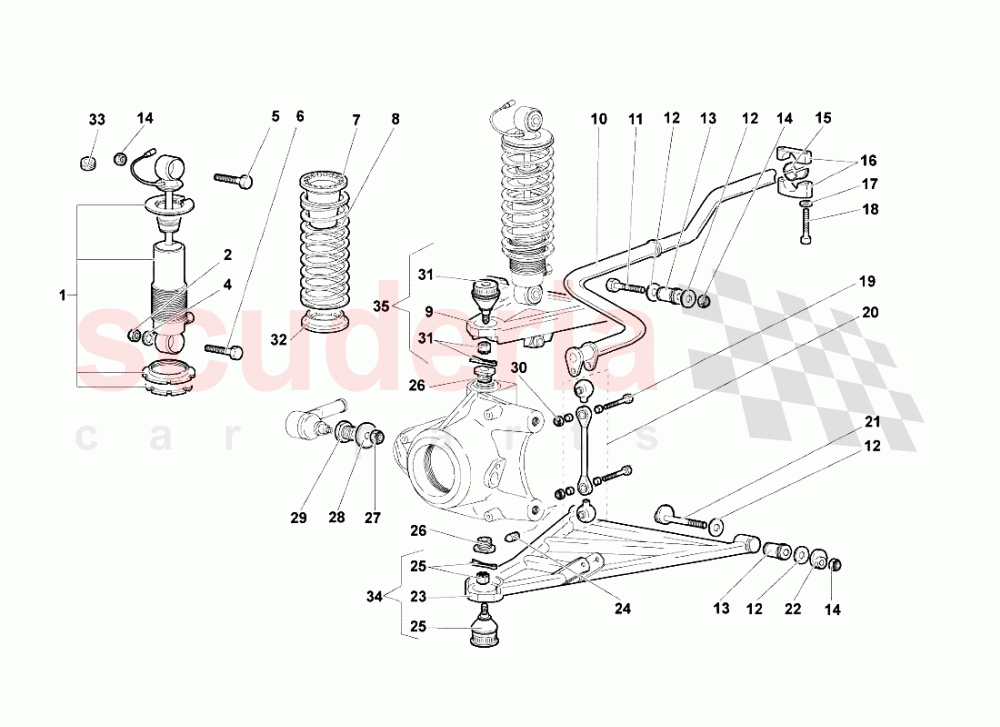

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410412031B	SHOCK ABSORBER (FROM VIN 1547)	410412031B SHOCK ABSORBER (FROM VIN 1547)	-	2	Enquire
002	N90323704	NUT	N90323704 NUT	-	2	Enquire
005	8101269	SCREW	8101269 SCREW	-	2	Enquire
006	N10592401	SCREW	N10592401 SCREW	-	2	Enquire
007	410512108	PANEL	410512108 PANEL	-	2	Enquire
008	51015536	SPRING	51015536 SPRING	-	2	Enquire
010	410411309	STABILIZER BAR	410411309 STABILIZER BAR	-	1	Enquire
011	8101269	SCREW	8101269 SCREW	-	4	Enquire
012	410407295D	WASHER	410407295D WASHER	-	4	Enquire
012	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	-	4	Enquire
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	-	4	Enquire
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	-	4	Enquire
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	-	4	Enquire
014	N10725301	NUT 12X1,25X14,8	N10725301 NUT 12X1,25X14,8	-	2	Enquire
014	N10725301	NUT 12X1,25X14,8	N10725301 NUT 12X1,25X14,8	-	4	Enquire
015	400511324C	BUSH	400511324C BUSH	-	2	Enquire
016	400411031D	U-BOLT	400411031D U-BOLT	-	2	Enquire
017	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
018	WHT000923	SCREW M6X52	WHT000923 SCREW M6X52	-	4	Enquire
020	410411317	CONNECTING ROD	410411317 CONNECTING ROD	-	2	Enquire
021	410407127A	BOLT	410407127A BOLT	-	4	Enquire
022	410407127A	BOLT	410407127A BOLT	-	4	Enquire
024	8700606	SCREW	8700606 SCREW	-	2	Enquire
026	410407171C	BUSH	410407171C BUSH	-	2	Enquire
027	WHT000915	NUT	WHT000915 NUT	-	2	Enquire
028	WHT000919	WASHER	WHT000919 WASHER	-	2	Enquire
029	410419121B	BUSH	410419121B BUSH	-	1	Enquire
030	8200804	NUT M8	8200804 NUT M8	-	4	Enquire
032	410512385	RUBBER RING	410512385 RUBBER RING	-	2	Enquire
033	61005393	FAIRLEAD	61005393 FAIRLEAD	-	2	Enquire
034	410407152	RH LOWER ARM	410407152 RH LOWER ARM	-	1	Enquire
034	410407151	LH LOWER ARM	410407151 LH LOWER ARM	-	1	Enquire
035	410407506A	RH UPPER ARM (CERAMIC BRAKE)	410407506A RH UPPER ARM (CERAMIC BRAKE)	-	1	Enquire
035	410407505	LH UPPER ARM	410407505 LH UPPER ARM	-	1	Enquire
035	410407505A	LH UPPER ARM (CERAMIC BRAKE)	410407505A LH UPPER ARM (CERAMIC BRAKE)	-	1	Enquire
035	410407506	RH UPPER ARM	410407506 RH UPPER ARM	-	1	Enquire
