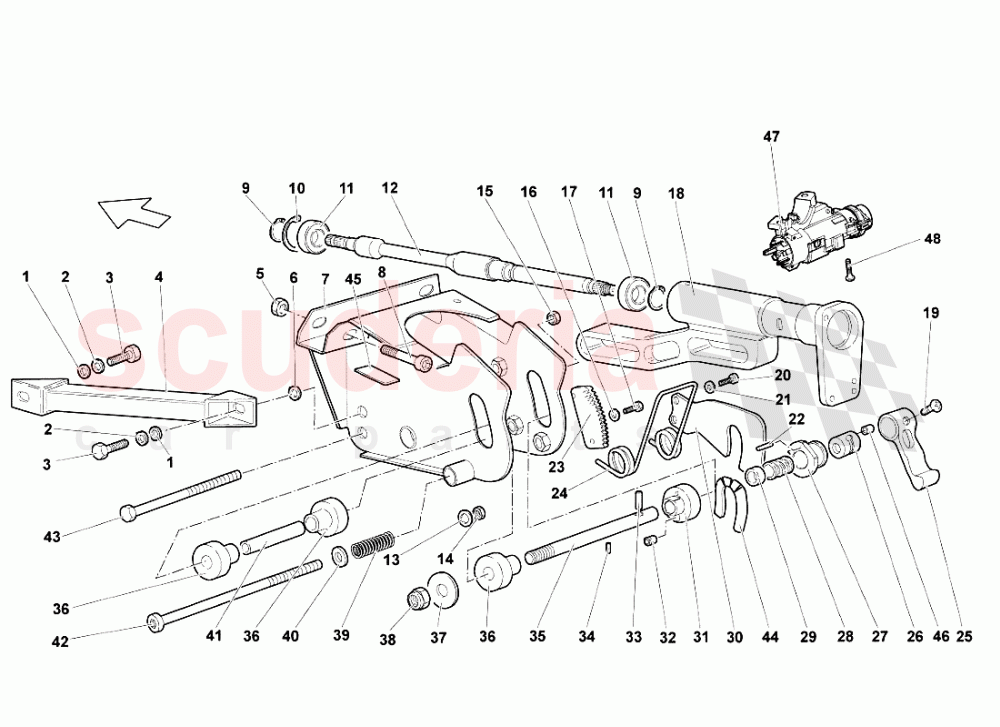

Lamborghini Murcielago Roadster - Steering 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	2	Enquire
002	WHT000771	WASHER	WHT000771 WASHER	-	2	Enquire
003	8100830	SCREW	8100830 SCREW	-	2	Enquire
004	43003444	STRUT	43003444 STRUT	-	1	Enquire
005	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	2	Enquire
006	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	-	1	Enquire
007	43014108	SUPPORT	43014108 SUPPORT	-	1	Enquire
008	N10651701	SCREW	N10651701 SCREW	-	2	Enquire
009	WHT002646	RETAINING RING	WHT002646 RETAINING RING	-	2	Enquire
010	8573701	RETAINING RING	8573701 RETAINING RING	-	1	Enquire
011	8502011	BEARING	8502011 BEARING	-	2	Enquire
012	410419967	SHAFT	410419967 SHAFT	-	1	Enquire
013	WHT000771	WASHER	WHT000771 WASHER	-	1	Enquire
014	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
015	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
016	WHT001187	WASHER	WHT001187 WASHER	-	2	Enquire
017	8700522	SCREW	8700522 SCREW	-	2	Enquire
018	410419561A	STEERING COLUMN SUPPORT (E-GEAR)	410419561A STEERING COLUMN SUPPORT (E-GEAR)	-	1	Enquire
018	410419561	STEERING COLUMN SUPPORT (MANUAL GEARBOX)	410419561 STEERING COLUMN SUPPORT (MANUAL GEARBOX)	-	1	Enquire
019	8700472	SCREW	8700472 SCREW	-	2	Enquire
020	8700532	SCREW	8700532 SCREW	-	2	Enquire
021	N10612001	WASHER	N10612001 WASHER	-	2	Enquire
022	4338318	PIN	4338318 PIN	-	1	Enquire
023	4337941	TOOTHED STRIKER	4337941 TOOTHED STRIKER	-	1	Enquire
024	43004084	SPRING	43004084 SPRING	-	1	Enquire
025	43009425	LEVER	43009425 LEVER	-	1	Enquire
026	43005387	SLEEVE	43005387 SLEEVE	-	1	Enquire
027	4337948	TOOTHED TAPPET	4337948 TOOTHED TAPPET	-	1	Enquire
028	4337947	SPRING	4337947 SPRING	-	1	Enquire
029	4337952	WASHER	4337952 WASHER	-	1	Enquire
030	43006655	COVER	43006655 COVER	-	1	Enquire
031	4337946	SPACER	4337946 SPACER	-	1	Enquire
032	4338060	POSITION BALL	4338060 POSITION BALL	-	1	Enquire
033	4338065	PIN	4338065 PIN	-	1	Enquire
034	WHT003591	PIN	WHT003591 PIN	-	1	Enquire
035	410419645	JOURNAL	410419645 JOURNAL	-	1	Enquire
036	4337939	SPACER	4337939 SPACER	-	1	Enquire
037	410407295D	WASHER	410407295D WASHER	-	1	Enquire
038	8201231	NUT	8201231 NUT	-	1	Enquire
039	410419598	SPRING	410419598 SPRING	-	1	Enquire
040	8400606	WASHER	8400606 WASHER	-	1	Enquire
041	4337944	BUSHING	4337944 BUSHING	-	1	Enquire
042	8700694	SCREW	8700694 SCREW	-	1	Enquire
043	8100824	SCREW	8100824 SCREW	-	1	Enquire
044	410419780	GASKET	410419780 GASKET	-	1	Enquire
045	400422850	RUBBER SHIM	400422850 RUBBER SHIM	-	1	Enquire
046	9907111	POSITION BALL	9907111 POSITION BALL	-	1	Enquire
047	4B0905851Q	IGNITION SWITCH SET	4B0905851Q IGNITION SWITCH SET	-	1	Enquire
048	43015513	SCREW	43015513 SCREW	-	2	Enquire
