Main Shaft

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Main Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

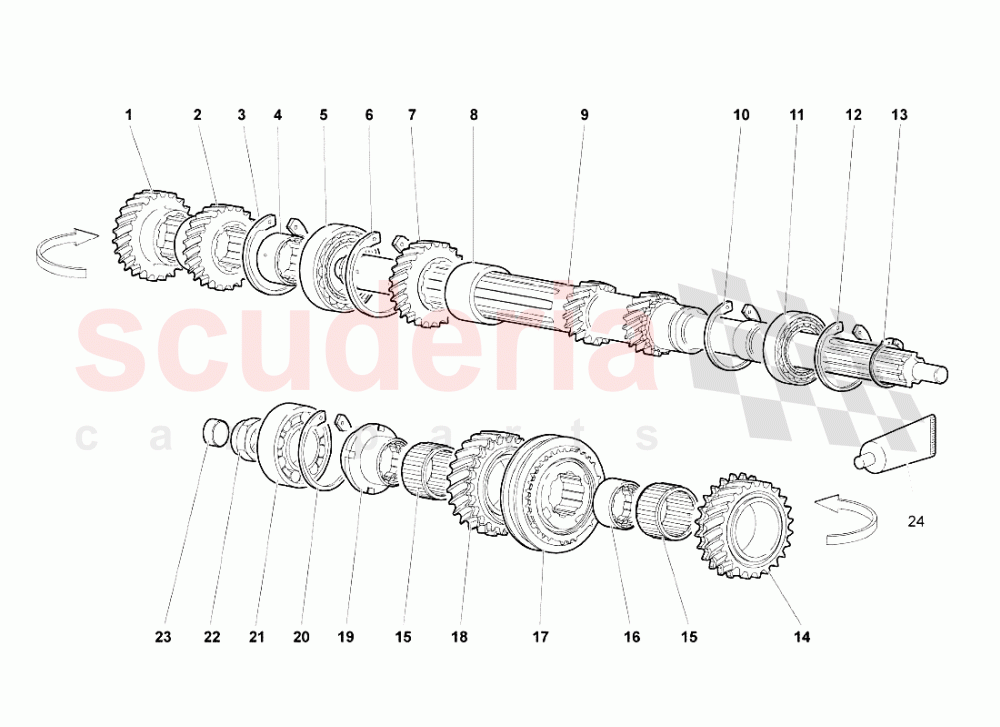

Main Shaft of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 86311149B
FOURTH GEAR 		$638.45 1
002 86311131C
THIRD GEAR 		$559.14 1
003 WHT003584
SEAL RING 		$31.85 1
004 86311187B
INNER RING 		$349.46 1
005 86301133
BEARING 080 		$119.36 1
006 WHT003584
SEAL RING 		$31.85 1
007 86311261A
SECOND GEAR 		$4,999.99 1
008 86311357A
SPACER 		$205.66 1
009 86311105C
MAIN SHAFT (To order together with the ref. 2 of the table 24.06.00) 		$2,271.52 1
010 WHT002544
SEAL RING 		$28.69 1
011 86301897
BEARING 		$540.33 1
012 WHT002544
SEAL RING 		$28.69 1
013 8583501
SEAL RING 		$0.92 (87.3% off) 1
014 86311361E
FIFTH GEAR ASSEMBLY + CROWN GEAR 		$749.99 1
015 86311228A
Roller Bearing 		$106.60 1
016 86301374A
BUSHING 		$327.29 1
017 86311309B
SYNCHRONIZING GEAR D.71/76 + CROWN GEAR 		$1,438.18 1
018 86311389C
SIXTH GEAR ASSEMBLY WITH CROWN GEAR 		$766.14 1
019 24007182
INNER RING 		$518.82 1
020 WHT003584
SEAL RING 		$31.85 1
021 86301845
BEARING 		$75.27 1
022 86301618
RING NUT 		$285.62 1
023 86311599
PLUG 		$27.43 1
024 900000130
GREASE 		$39.88 1
