Gearbox Oil Pump of Lamborghini Lamborghini Murcielago Roadster

View All

Lamborghini Murcielago Roadster - Gearbox Oil Pump

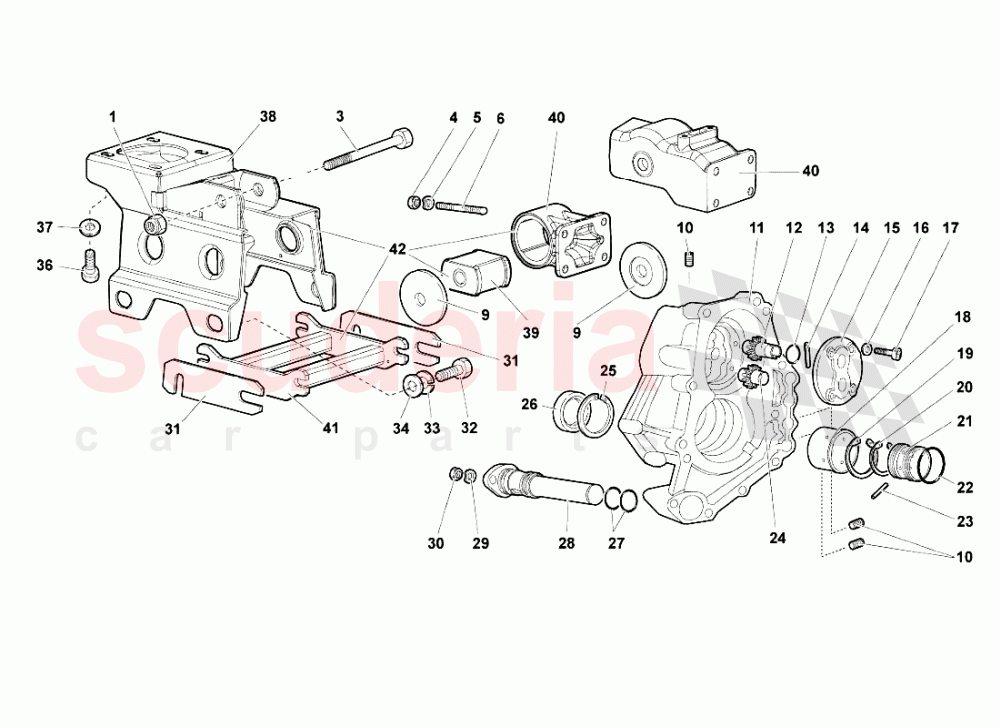

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8201414	NUT	8201414 NUT	-	1	Enquire
003	8101411	SCREW	8101411 SCREW	-	1	Enquire
004	8200806	NUT	8200806 NUT	-	4	Enquire
006	8300822	STUD BOLT	8300822 STUD BOLT	-	4	Enquire
009	8401415	WASHER	8401415 WASHER	-	2	Enquire
010	8931415	PLUG	8931415 PLUG	-	3	Enquire
011	86301271	FRONT GEARBOX BODY	86301271 FRONT GEARBOX BODY	-	1	Enquire
012	86315021	GEAR	86315021 GEAR	-	1	Enquire
013	WHT003523	SEAL RING	WHT003523 SEAL RING	-	1	Enquire
014	WHT003690	PIN	WHT003690 PIN	-	1	Enquire
015	86315141	COVER	86315141 COVER	-	1	Enquire
016	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
017	8700614	SCREW	8700614 SCREW	-	4	Enquire
018	86301155	BUSHING	86301155 BUSHING	-	1	Enquire
019	WHT003581	SEAL RING	WHT003581 SEAL RING	-	1	Enquire
020	8575201	RETAINING RING	8575201 RETAINING RING	-	1	Enquire
021	86315167	BUSHING	86315167 BUSHING	-	1	Enquire
022	86323135	PISTON RING	86323135 PISTON RING	-	4	Enquire
023	WHT003583	JOURNAL	WHT003583 JOURNAL	-	1	Enquire
024	86315127	GEAR	86315127 GEAR	-	1	Enquire
025	8575201	RETAINING RING	8575201 RETAINING RING	-	1	Enquire
026	86311321	SEAL RING	86311321 SEAL RING	-	1	Enquire
027	WHT003524	SEAL RING	WHT003524 SEAL RING	-	2	Enquire
028	86301516	OIL FILTER	86301516 OIL FILTER	-	1	Enquire
029	WHT000771	WASHER	WHT000771 WASHER	-	2	Enquire
030	8200821	NUT	8200821 NUT	-	2	Enquire
032	8700810	SCREW	8700810 SCREW	-	4	Enquire
033	N0152785	WASHER	N0152785 WASHER	-	4	Enquire
034	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
036	WHT002951	Hexagon Head Bolt M8x1.25x23	WHT002951 Hexagon Head Bolt M8x1.25x23	-	4	Enquire
037	N90840802	WASHER	N90840802 WASHER	-	4	Enquire
038	410713292	SUPPORT	410713292 SUPPORT	-	1	Enquire
039	410399663	SILENTBLOC (WITH 0024013586)	410399663 SILENTBLOC (WITH 0024013586)	-	1	Enquire
040	86399213	SUPPORT (WITH 0024013586 - MANUAL GEARBOX)	86399213 SUPPORT (WITH 0024013586 - MANUAL GEARBOX)	-	1	Enquire
040	86399213B	SUPPORT (E-GEAR)	86399213B SUPPORT (E-GEAR)	-	1	Enquire
041	410399115	GEARBOX BRACKET (WITH 0024013586)	410399115 GEARBOX BRACKET (WITH 0024013586)	-	1	Enquire
042	R1470001	NEW KIT SUPPORT (WITH 0024008024)	R1470001 NEW KIT SUPPORT (WITH 0024008024)	-	1	Enquire
