Front Differential Case of Lamborghini Lamborghini Murcielago Roadster

View All

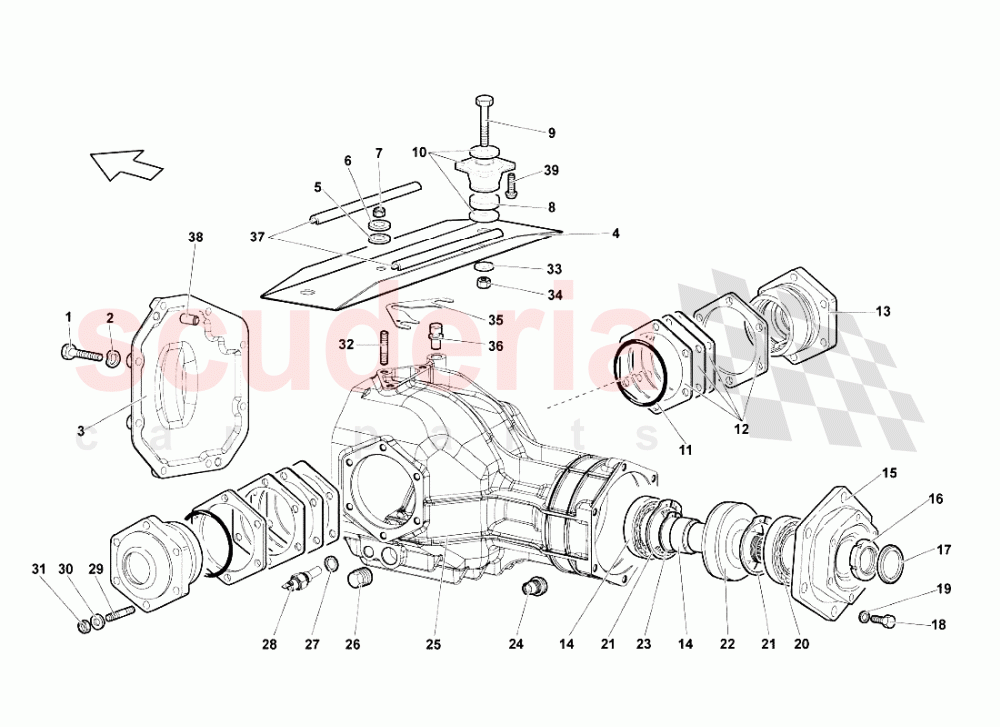

Lamborghini Murcielago Roadster - Front Differential Case

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8100827	SCREW M8X25	8100827 SCREW M8X25	$0.40 MSRP: ~~7.33~~ (94.5% off)	8
002	WHT001514	WASHER	WHT001514 WASHER	$24.95 MSRP: ~~64.00~~ (61% off)	8
003	1S409410A	COVER	1S409410A COVER	$353.52	1
004	410805153	SUPPORT	410805153 SUPPORT	$53.12	1
005	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	3
006	8410820	WASHER	8410820 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	3
007	8200804	NUT M8	8200804 NUT M8	$1.16 MSRP: ~~7.28~~ (84.1% off)	3
008	410801499	SPACER	410801499 SPACER	$71.11	2
009	8101276	SCREW M12X70	8101276 SCREW M12X70	$2.23 MSRP: ~~7.03~~ (68.3% off)	2
010	410805991	SUPPORT	410805991 SUPPORT	$184.81	2
011	WHT002158	SEAL RING	WHT002158 SEAL RING	$20.84	2
012	1S409448A	1.0 MM ADJUSTMENT SHIM	1S409448A 1.0 MM ADJUSTMENT SHIM	$40.68	1
012	1S409448B	2.0 MM ADJUSTMENT SHIM	1S409448B 2.0 MM ADJUSTMENT SHIM	$100.41	2
012	1S409448	2.0 MM ADJUSTMENT SHIM	1S409448 2.0 MM ADJUSTMENT SHIM	$49.13	2
012	1S409448E	ADJUSTMENT SHIM	1S409448E ADJUSTMENT SHIM	$87.76	6
012	1S409448D	0.050 MM ADJUSTMENT SHIM	1S409448D 0.050 MM ADJUSTMENT SHIM	$22.92	3
012	1S409448C	0.075 MM ADJUSTMENT SHIM	1S409448C 0.075 MM ADJUSTMENT SHIM	$34.96	3
013	1S409828A	FLANGE	1S409828A FLANGE	$873.67	2
014	1S409770	BEARING	1S409770 BEARING	$336.04	1
015	1S409129A	FLANGE	1S409129A FLANGE	$1,182.80	1
016	1S409761	RING NUT	1S409761 RING NUT	$231.85	1
017	1S409887	SEAL RING	1S409887 SEAL RING	$71.11	1
018	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25	$0.51 MSRP: ~~7.31~~ (93% off)	6
019	WHT001514	WASHER	WHT001514 WASHER	$24.95 MSRP: ~~64.00~~ (61% off)	6
020	1S409561	BEARING	1S409561 BEARING	$64.91	1
021	N0123501	RETAINING RING	N0123501 RETAINING RING	$7.27	2
021	N0123191	RETAINING RING	N0123191 RETAINING RING	$5.94	2
022	1S409435B	VISCOUS COUPLING	1S409435B VISCOUS COUPLING	$5,994.63	1
023	1S409297	SEAL RING	1S409297 SEAL RING	$18.84	1
024	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG	$4.28	1
025	1S409149A	FRONT DIFFERENTIAL CASE	1S409149A FRONT DIFFERENTIAL CASE	$11,955.59	1
026	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG	$37.19	1
027	N0138492	WASHER	N0138492 WASHER	$3.16 MSRP: ~~7.21~~ (56.2% off)	1
028	1S919529	SENSOR	1S919529 SENSOR	$282.28	1
029	8300923	STUD BOLT M8X35	8300923 STUD BOLT M8X35	$8.35	12
030	WHT001514	WASHER	WHT001514 WASHER	$24.95 MSRP: ~~64.00~~ (61% off)	12
031	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	12
032	8300923	STUD BOLT M8X35	8300923 STUD BOLT M8X35	$8.35	3
034	8201219	NUT M12	8201219 NUT M12	$3.85 MSRP: ~~3.95~~ (2.5% off)	2
035	1S409267B	SPACER	1S409267B SPACER	$42.15	4
036	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE	$69.10	1
037	400133338	GASKET	400133338 GASKET	$67.60	2
038	WHT003078	DOWEL	WHT003078 DOWEL	$43.68	2
039	N90929202	SCREW M10X20.0	N90929202 SCREW M10X20.0	$3.64	8
