Electrical System 5

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Electrical System 5

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

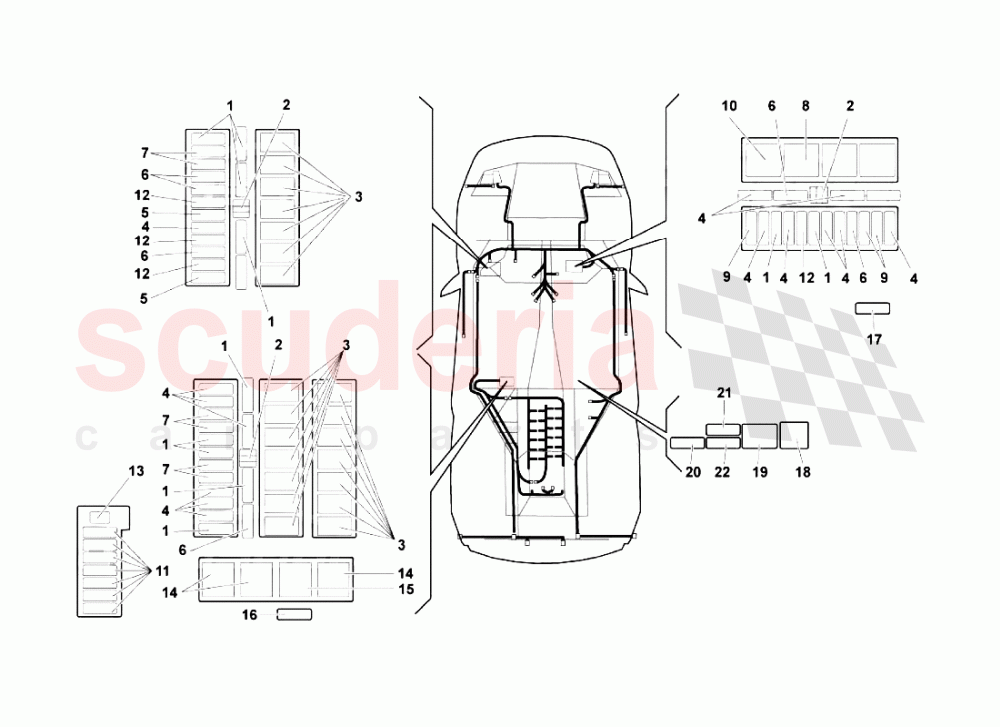

Electrical System 5 of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N1713112
15A FUSE (E-GEAR) 		- 11 Enquire
002 410012231
PLIERS FOR FUSE REMOVAL 		- 3 Enquire
003 4H0951253C
RELAY 		- 21 Enquire
004 N1713111
10A FUSE 		- 13 Enquire
005 N1713117
7.5A FUSE 		- 1 Enquire
006 N1713116
5A FUSE 		- 6 Enquire
007 N1713113
20A FUSE 		- 6 Enquire
008 61010037
MINI-RELAY BITRON 23102 		- 1 Enquire
009 N1713115
30A FUSE (E-GEAR) 		- 3 Enquire
010 431951253D
MINI-RELAY VW/AUDI 		- 1 Enquire
011 N10525502
50A FUSE 		- 7 Enquire
012 N1713117
7.5A FUSE 		- 4 Enquire
013 N10525601
100A FUSE 		- 1 Enquire
014 7M0951253A
MINI-RELAY BITRON 		- 3 Enquire
015 4H0951253A
RELAY 		- 1 Enquire
016 N1713120
40A FUSE 		- 1 Enquire
018 7L905107
RELAY (E-GEAR)
Alternative: 155437 		- 1 Enquire
019 4H0951253C
RELAY 		- 1 Enquire
020 N1713115
30A FUSE (E-GEAR) 		- 1 Enquire
021 N1713112
15A FUSE (E-GEAR) 		- 1 Enquire
022 N1713118
7.5A FUSE (E-GEAR) 		- 1 Enquire
