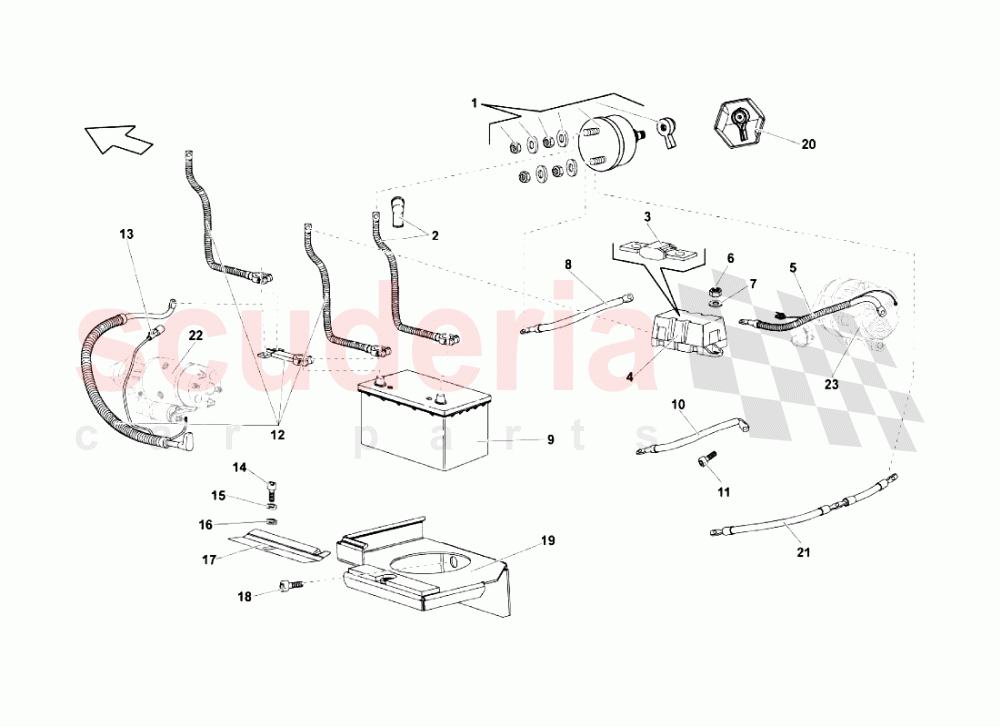

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410915519	BATTERY ISOLATOR	410915519 BATTERY ISOLATOR	-	1	Enquire
002	410971235D	CABLE (-) FROM BATTERY TO MAIN BATTERY SWITCH	410971235D CABLE (-) FROM BATTERY TO MAIN BATTERY SWITCH	-	1	Enquire
003	400937629	250A FUSE	400937629 250A FUSE	-	1	Enquire
004	4B3937505	MEGA FUSE HOLDER BOX	4B3937505 MEGA FUSE HOLDER BOX	-	1	Enquire
005	410971134F	CABLE FROM ALTERNATOR TO FUSE CONNECTION	410971134F CABLE FROM ALTERNATOR TO FUSE CONNECTION	-	1	Enquire
006	N211963	NUT M5	N211963 NUT M5	-	5	Enquire
007	WHT001187	WASHER	WHT001187 WASHER	-	1	Enquire
009	7L0915105	BATTERY	7L0915105 BATTERY	-	1	Enquire
011	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	1	Enquire
012	410971097A	CABLE	410971097A CABLE	-	1	Enquire
013	410971347A	CABLE (+50) STARTER MOTOR EXCITATION	410971347A CABLE (+50) STARTER MOTOR EXCITATION	-	1	Enquire
014	N10285602	SCREW	N10285602 SCREW	-	1	Enquire
015	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5	-	1	Enquire
016	WHT001397	WASHER	WHT001397 WASHER	-	1	Enquire
017	7L6915138A	BRACKET	7L6915138A BRACKET	-	1	Enquire
018	N10005207	SCREW M8X18	N10005207 SCREW M8X18	-	1	Enquire
019	410915517A	BRACKET	410915517A BRACKET	-	1	Enquire
021	410971237A	CABLE (-) BATTERY ISOLATOR - ENGINE - CHASSIS	410971237A CABLE (-) BATTERY ISOLATOR - ENGINE - CHASSIS	-	1	Enquire
