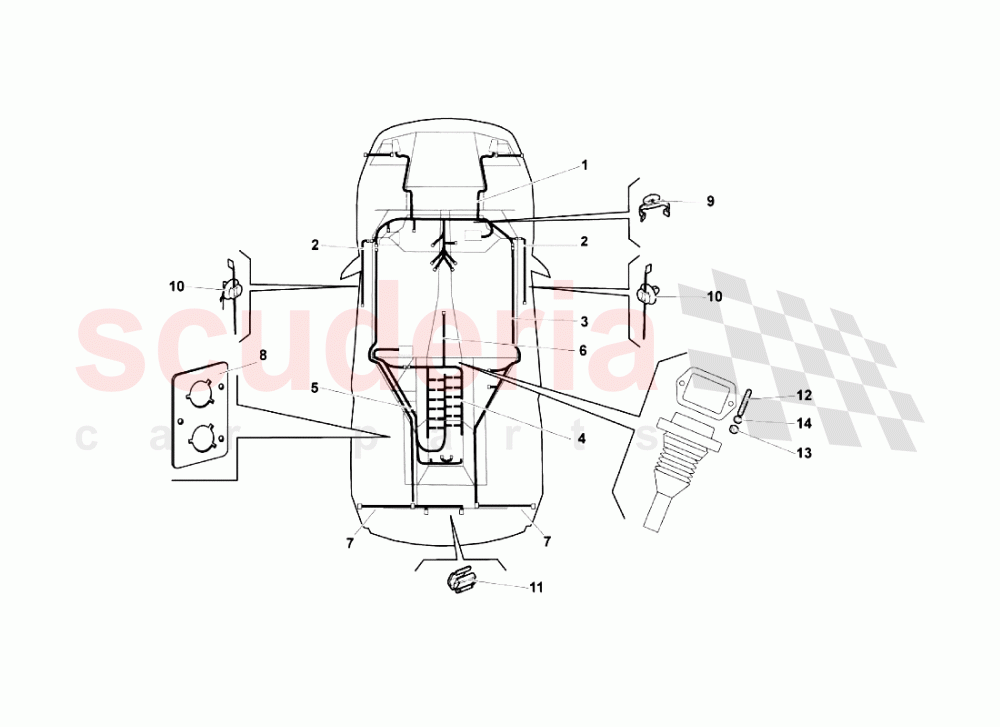

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	418971135AB	CENTRAL WIRING HARNESS	418971135AB CENTRAL WIRING HARNESS	$7,829.28	1
001	418971135AA	CENTRAL WIRING HARNESS	418971135AA CENTRAL WIRING HARNESS (USA version)	$2,802.43	1
002	418971035A	DOOR WIRING HARNESS	418971035A DOOR WIRING HARNESS	$950.29	2
003	410971174J	RIGHT REAR WIRING HARNESS	410971174J RIGHT REAR WIRING HARNESS	$869.63	1
005	7M905532P	INJECTION WIRING HARNESS (MANUAL GEARBOX)	7M905532P INJECTION WIRING HARNESS (MANUAL GEARBOX)	$2,668.02	1
005	7M905532Q	INJECTION WIRING HARNESS (E-GEAR)	7M905532Q INJECTION WIRING HARNESS (E-GEAR)	$2,748.66	1
006	410971771F	E-GEAR WIRING	410971771F E-GEAR WIRING	$1,302.41	1
008	410971303C	SUPPORT	410971303C SUPPORT	$32.81	1
009	701971899G	CLAMP	701971899G CLAMP	$0.85 MSRP: ~~2.70~~ (68.5% off)	1
010	3D0971818	CABLE TIES	3D0971818 CABLE TIES	$2.84	4
011	1H0971842B	CLAMP	1H0971842B CLAMP	$9.35	4
012	N443954	STUD BOLT M6X30.0 (E-GEAR)	N443954 STUD BOLT M6X30.0 (E-GEAR)	-	2	Enquire
013	N1118312	NUT M6	N1118312 NUT M6	-	2	Enquire
014	WHT002961	WASHER	WHT002961 WASHER	$0.42	2
