Lamborghini Murcielago LP640 - Brake System

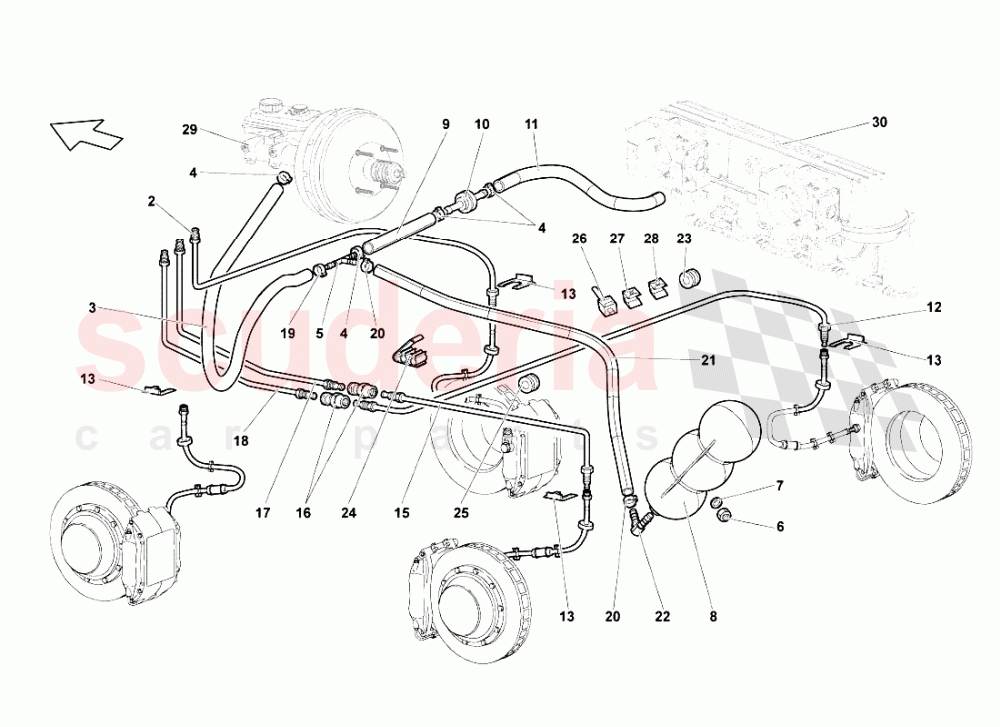

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	410611724B	RIGHT PIPE	410611724B RIGHT PIPE	-	1	Enquire
003	413611971A	BRAKE BOOSTER/VACUUM FLEXIBLE HOSE	413611971A BRAKE BOOSTER/VACUUM FLEXIBLE HOSE	-	1	Enquire
004	N10201901	CLAMP	N10201901 CLAMP	-	4	Enquire
005	400611921	CONNECTOR	400611921 CONNECTOR	-	1	Enquire
006	WHT003112	NUT M5	WHT003112 NUT M5	-	2	Enquire
007	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	2	Enquire
008	443131541	VACUUM TANK ASSEMBLY	443131541 VACUUM TANK ASSEMBLY	-	1	Enquire
009	401611971A	PIPE FROM VALVE VACUUM TANK	401611971A PIPE FROM VALVE VACUUM TANK	-	1	Enquire
010	410616807	VALVE	410616807 VALVE	-	1	Enquire
011	410611937A	VACUUM MANIFOLD BRANCH	410611937A VACUUM MANIFOLD BRANCH	-	1	Enquire
012	410611748B	RIGHT CALIPER FLEXIBLE/CONNECTION	410611748B RIGHT CALIPER FLEXIBLE/CONNECTION	-	1	Enquire
013	191611715	HOSE BRACKET	191611715 HOSE BRACKET	-	4	Enquire
015	410611747B	LEFT CALIPER FLEXIBLE/CONNECTION	410611747B LEFT CALIPER FLEXIBLE/CONNECTION	-	1	Enquire
016	400611809	CONNECTING PIECE	400611809 CONNECTING PIECE	-	2	Enquire
017	410611745B	LEFT CENTRAL/CONNECTION PIPE	410611745B LEFT CENTRAL/CONNECTION PIPE	-	1	Enquire
018	410611746B	RIGHT CENTRAL/CONNECTION PIPE	410611746B RIGHT CENTRAL/CONNECTION PIPE	-	1	Enquire
019	N0245097	CLAMP	N0245097 CLAMP	-	1	Enquire
020	400251189E	CLAMP	400251189E CLAMP	-	1	Enquire
021	410611939	HOSE	410611939 HOSE	-	1	Enquire
022	400612173	CONNECTOR	400612173 CONNECTOR	-	1	Enquire
023	400820287	FAIRLEAD 18,5X25X1,5	400820287 FAIRLEAD 18,5X25X1,5	-	1	Enquire
024	1H0611797	SUPPORT	1H0611797 SUPPORT	-	1	Enquire
025	410801988	FAIRLEAD 12X20X1,5	410801988 FAIRLEAD 12X20X1,5	-	1	Enquire
026	400611757	JOURNAL	400611757 JOURNAL	-	25	Enquire
027	400611799	BRACKET 0 5 MM	400611799 BRACKET 0 5 MM	-	21	Enquire
028	400971848	BRACKET 0 6 MM	400971848 BRACKET 0 6 MM	-	4	Enquire
