Hand Brake

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Hand Brake

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

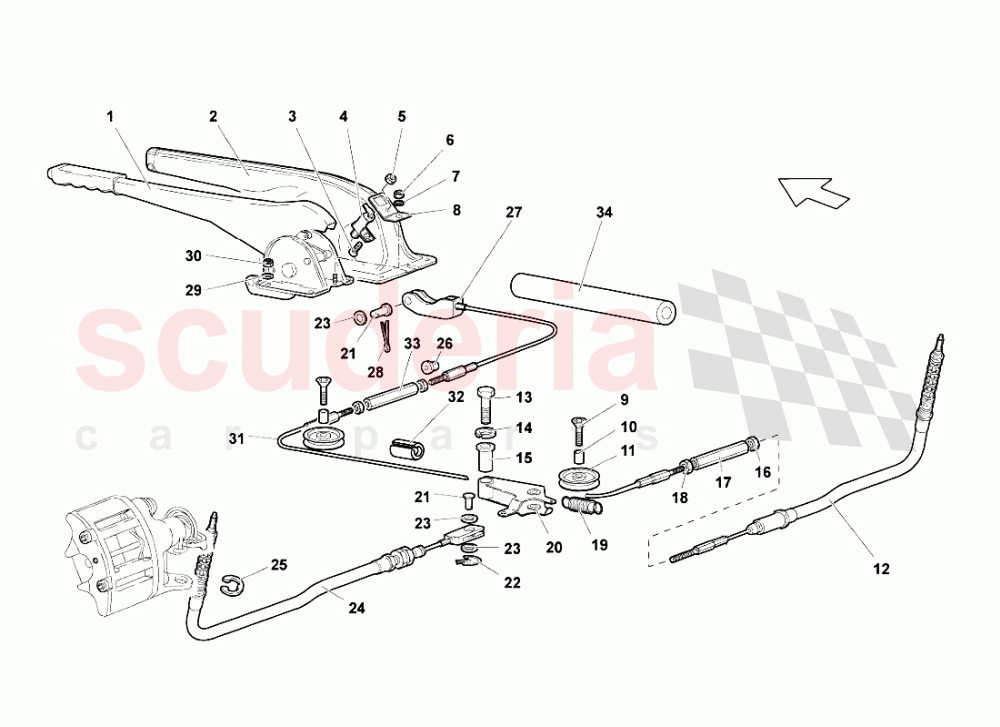

Hand Brake of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410711305B
HAND BRAKE LEVER (KLAVIERLACK INTERIOR) 		- 1 Enquire
001 410711305A
HAND BRAKE LEVER (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
001 410711305
HAND BRAKE LEVER (STANDARD) 		- 1 Enquire
002 418711115A
COVERING (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
002 418711115B
COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
002 418711115
COVERING (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
003 WHT002956
SCREW 4X10 		- 1 Enquire
004 410711323
BUTTON 		- 1 Enquire
005 WHT002959
CLAMPING NUT 		- 1 Enquire
006 N0211963
NUT 		- 1 Enquire
007 WHT001187
WASHER 		- 1 Enquire
008 410711403A
SUPPORT 		- 1 Enquire
009 N10561802
SCREW M8X35 		- 3 Enquire
010 410711342A
BUSHING 		- 3 Enquire
011 410711340
PULLEY 		- 3 Enquire
012 410609701A
Cable 		- 1 Enquire
013 N10723901
SCREW M14X55 		- 1 Enquire
014 WHT002633
WASHER 		- 1 Enquire
015 410609815
SPACER 		- 1 Enquire
016 N01100638
NUT M6 		- 1 Enquire
017 410609206
ADJUSTING SLEEVE (CERAMIC BRAKE) 		- 1 Enquire
018 N01100632
NUT M6 		- 1 Enquire
019 410609707A
SPRING 		- 1 Enquire
020 410711347A
SUPPORT 		- 1 Enquire
021 410609789A
JOURNAL 		- 1 Enquire
022 410713299
CLIP 		- 1 Enquire
023 N0122094
WASHER 		- 3 Enquire
024 410609702A
TIE ROD 		- 1 Enquire
025 WHT003586
RETAINING RING 		- 2 Enquire
026 410609155
RUBBER BUSHING 		- 1 Enquire
027 413609722A
TIE ROD 		- 1 Enquire
028 N0125152
SPLIT PIN 		- 1 Enquire
029 N01152427
WASHER 		- 4 Enquire
030 N01118312
HEXAGON NUT, SELF-LOCKING 		- 4 Enquire
032 410609774
BUSHING 		- 1 Enquire
034 10600150
PROTECTION (ORDER BY THE METRE) 		- 1 Enquire
