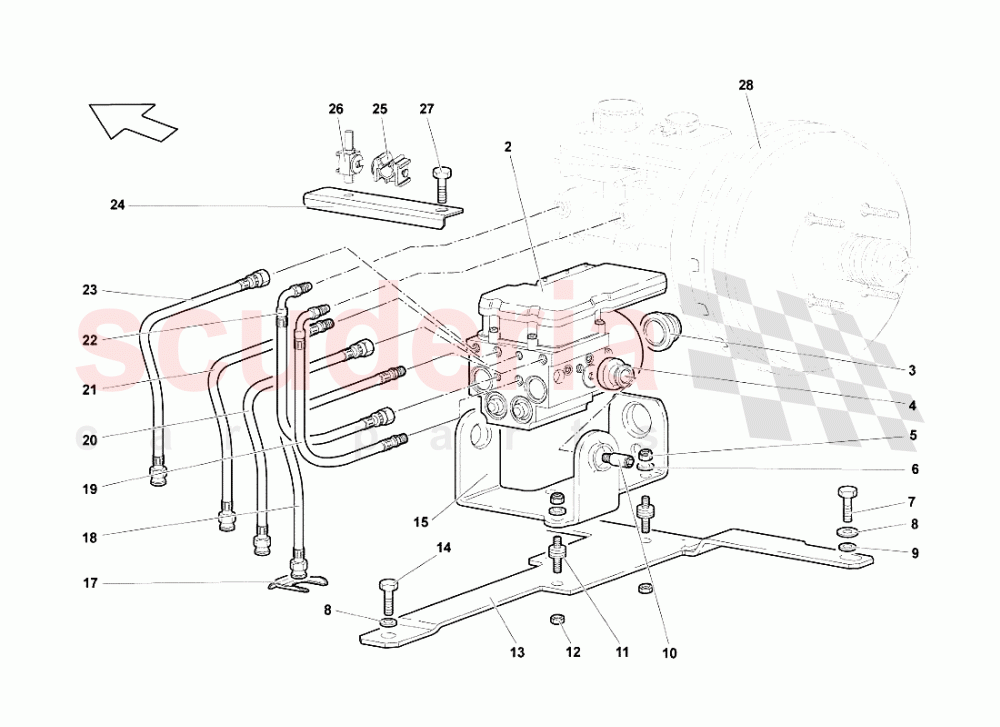

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	410614517	ABS CONTROL UNIT	410614517 ABS CONTROL UNIT	-	1	Enquire
003	410614128	FLEXIBLE SUPPORT	410614128 FLEXIBLE SUPPORT	-	1	Enquire
004	410614125	FLEXIBLE SUPPORT	410614125 FLEXIBLE SUPPORT	-	2	Enquire
005	N01100637	NUT M6	N01100637 NUT M6	-	3	Enquire
006	WHT003213	WASHER	WHT003213 WASHER	-	3	Enquire
007	N10517304	SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.	N10517304 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.	-	2	Enquire
008	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	3	Enquire
009	N0152785	WASHER	N0152785 WASHER	-	2	Enquire
010	410614187	JOURNAL	410614187 JOURNAL	-	2	Enquire
011	400972081C	FLEXIBLE SUPPORT	400972081C FLEXIBLE SUPPORT	-	3	Enquire
012	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING	-	3	Enquire
013	413614138A	SUPPORT	413614138A SUPPORT	-	1	Enquire
014	N10536103	SCREW M8X16	N10536103 SCREW M8X16	-	1	Enquire
015	410614143A	BRACKET	410614143A BRACKET	-	1	Enquire
017	191611715	HOSE BRACKET	191611715 HOSE BRACKET	-	1	Enquire
018	413611761C	LEFT FRONT FLEXIBLE HOSE	413611761C LEFT FRONT FLEXIBLE HOSE	-	1	Enquire
019	413614739B	HOSE	413614739B HOSE	-	1	Enquire
020	413611762B	RIGHT FRONT FLEXIBLE HOSE	413611762B RIGHT FRONT FLEXIBLE HOSE	-	1	Enquire
021	413611763C	LEFT REAR FLEXIBLE HOSE	413611763C LEFT REAR FLEXIBLE HOSE	-	1	Enquire
022	413614740B	HOSE	413614740B HOSE	-	1	Enquire
023	413611764C	RIGHT REAR FLEXIBLE HOSE	413611764C RIGHT REAR FLEXIBLE HOSE	-	1	Enquire
