Engine Oil Pump 2

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Engine Oil Pump 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

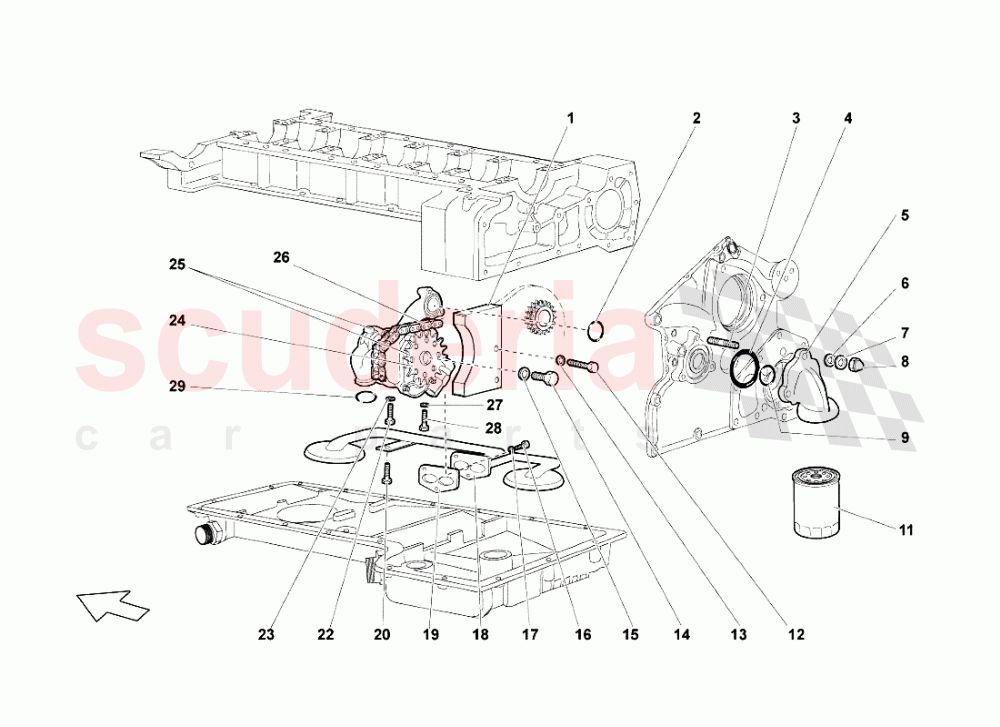

Engine Oil Pump 2 of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7M109507
CHAIN TIGHTENER OIL PUMP ASSEMBLY 		$793.03 1
002 WHT003062
SEAL RING
IN STOCK 		$6.61 1
003 WHT003028
THREADED PIN 		$22.30 3
004 WHT003064
SEAL RING 		$33.01 1
005 7M115407
SUPPORT 		$780.92 1
006 WHT003045
WASHER 		$25.69 3
007 WHT000771
WASHER
IN STOCK 		$1.19 3
008 N0111849
NUT
IN STOCK 		$2.15 (70.3% off) 3
009 WHT003063
SEAL RING
IN STOCK 		$3.92 1
012 N10510301
SCREW M6X35 		$1.19 (90.3% off) 2
013 N90840802
WASHER
IN STOCK 		$0.40 (94.5% off) 2
014 N01024230
SCREW M8X25
IN STOCK 		$1.55 (78.4% off) 1
015 N90840802
WASHER
IN STOCK 		$0.40 (94.5% off) 1
016 N91084801
HEXAGON SOCKET HEAD BOLT
IN STOCK 		$0.83 (88.6% off) 3
017 WHT001197A
WASHER
IN STOCK 		$0.30 3
018 7M115665A
PIPE 		$543.02 1
019 7M115359
GASKET 		$17.47 1
020 N10049308
HEXAGON HEAD BOLT (COMBI)
IN STOCK 		$1.74 1
022 WHT001416
SCREW M6X70 		$25.08 1
023 WHT001197A
WASHER
IN STOCK 		$0.30 1
024 7M109570
GEARWHEEL 		$772.85 1
025 7M115103A
COMPLETE OIL PUMP 		$8,293.00 1
026 7M109120
CHAIN 		$707.00 1
027 WHT003053
WASHER 		$3.24 2
028 WHT003070
SCREW M6X90 		$2.84 2
029 WHT003062
SEAL RING
IN STOCK 		$6.61 2
