Air Conditioning System 3

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Air Conditioning System 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

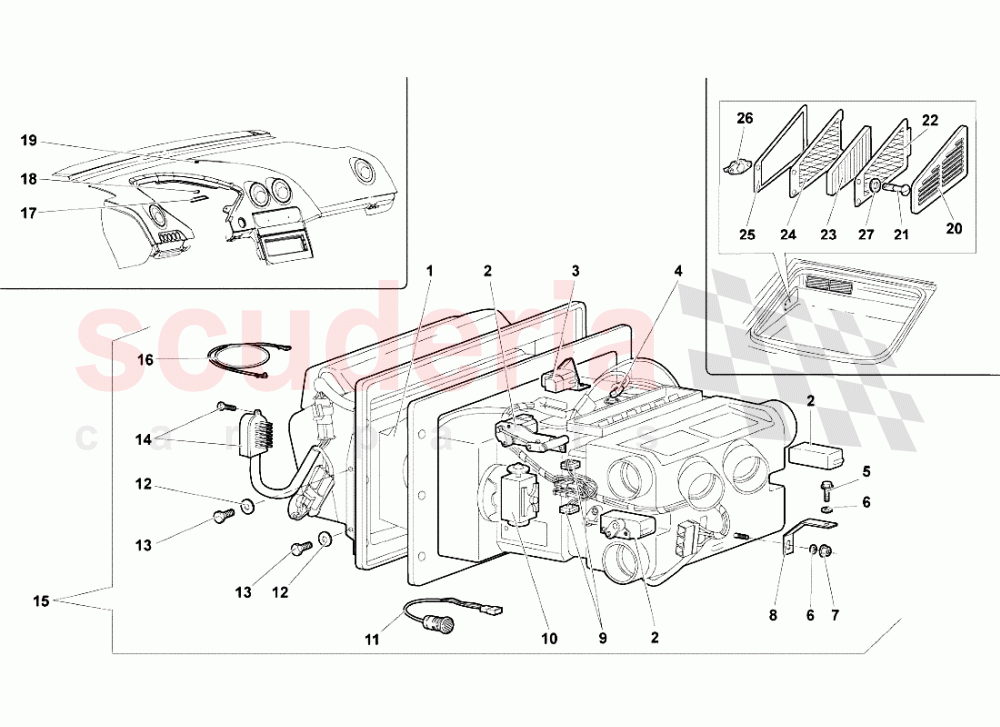

Air Conditioning System 3 of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 45006734
ELECTRIC FAN 		- 1 Enquire
002 45006737
ACTUATOR 		- 3 Enquire
003 45006736
ACTUATOR 		- 1 Enquire
004 45006731
SENSOR 		- 1 Enquire
005 N90319404
SCREW 		- 1 Enquire
006 WHT002961
WASHER 		- 1 Enquire
007 N01508213
HEXAGON COLLAR NUT 		- 1 Enquire
008 410804949
BRACKET 		- 1 Enquire
009 45006730
CA.0005430.C TEMPERATURE SENSOR 		- 1 Enquire
010 45006735
VALVE 		- 1 Enquire
011 410820539
INTERNAL TEMPERATURE SENSOR 		- 1 Enquire
012 N01152427
WASHER 		- 1 Enquire
013 8100501
SCREW 		- 1 Enquire
014 45006742
REGULATOR 		- 1 Enquire
015 413820155A
HVAC UNIT 		- 1 Enquire
016 410820535
EXTERNAL TEMPERATURE SENSOR 		- 1 Enquire
017 410820200
0681762 SOLAR SENSOR BRACKET 		- 1 Enquire
018 410820530
RING 		- 1 Enquire
019 410907539
SENSOR 		- 1 Enquire
020 410806230A
RIGHT COVERING 		- 1 Enquire
020 410806229A
LEFT COVERING 		- 1 Enquire
021 410805083A
JOURNAL 		- 1 Enquire
022 410805391
LEFT CLOSING GRID 		- 1 Enquire
022 410805392
RIGHT CLOSING GRID 		- 1 Enquire
023 410820367A
Pollen Filter 		- 1 Enquire
024 410805396
LEFT SUPPORT 		- 1 Enquire
024 410805395
RIGHT SUPPORT 		- 1 Enquire
025 410805230
LH GASKET 		- 1 Enquire
025 410805349
RH GASKET 		- 1 Enquire
026 410805084
Fastener 		- 4 Enquire
027 410805964
Washer 		- 4 Enquire
