Water Cooling System 3 of Lamborghini Lamborghini Murcielago LP640

View All

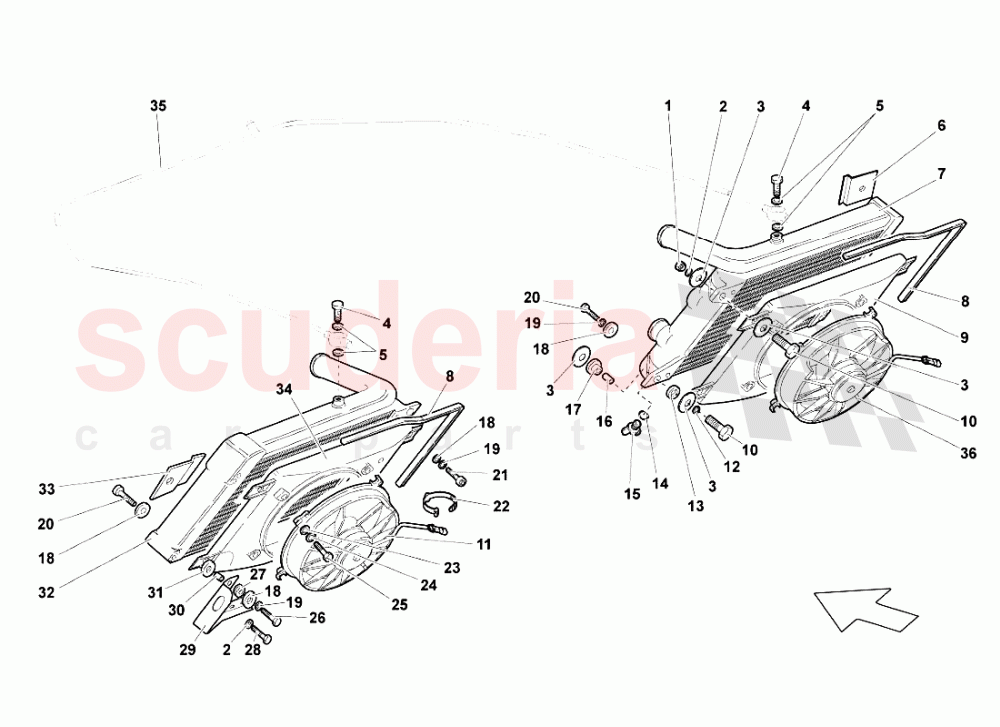

Lamborghini Murcielago LP640 - Water Cooling System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0111849	NUT	N0111849 NUT	-	2	Enquire
002	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	2	Enquire
003	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	-	2	Enquire
005	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	6	Enquire
006	410121235	BRACKET	410121235 BRACKET	-	1	Enquire
007	410121252B	RH Complete Water Radiator	410121252B RH Complete Water Radiator	-	1	Enquire
008	410121539	GASKET	410121539 GASKET	-	2	Enquire
009	410121334A	RH CONVEYOR	410121334A RH CONVEYOR	-	1	Enquire
010	N01034518	SCREW M8X45	N01034518 SCREW M8X45	-	4	Enquire
011	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	-	1	Enquire
012	N0152785	WASHER	N0152785 WASHER	-	4	Enquire
013	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	2	Enquire
014	WHT003058	SEAL RING	WHT003058 SEAL RING	-	1	Enquire
015	410121299	PLUG	410121299 PLUG	-	2	Enquire
016	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	-	2	Enquire
017	400121268	RUBBER BUSH	400121268 RUBBER BUSH	-	2	Enquire
018	WHT002961	WASHER	WHT002961 WASHER	-	8	Enquire
019	WHT002963	WASHER	WHT002963 WASHER	-	8	Enquire
020	N10546402	SCREW M6X16	N10546402 SCREW M6X16	-	4	Enquire
021	N10650701	HEXAGON SOCKET HEAD BOLT	N10650701 HEXAGON SOCKET HEAD BOLT	-	8	Enquire
022	N0206026	CLAMP	N0206026 CLAMP	-	1	Enquire
023	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	4	Enquire
024	WHT000769A	WASHER	WHT000769A WASHER	-	4	Enquire
025	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
026	N91051101	SCREW M6X30	N91051101 SCREW M6X30	-	2	Enquire
027	7L121585	RUBBER BUSHING	7L121585 RUBBER BUSHING	-	2	Enquire
028	N10536103	SCREW M8X16	N10536103 SCREW M8X16	-	2	Enquire
029	410813685	LH BRACKET	410813685 LH BRACKET	-	1	Enquire
029	410813686	RH BRACKET	410813686 RH BRACKET	-	1	Enquire
030	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	-	2	Enquire
031	N0154045	WASHER	N0154045 WASHER	-	8	Enquire
032	410121253B	LH COMPLETE WATER RADIATOR	410121253B LH COMPLETE WATER RADIATOR	-	1	Enquire
033	410121214	BRACKET	410121214 BRACKET	-	1	Enquire
034	410121333A	LH CONVEYOR	410121333A LH CONVEYOR	-	1	Enquire
036	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	-	1	Enquire
