Air Intake of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Air Intake

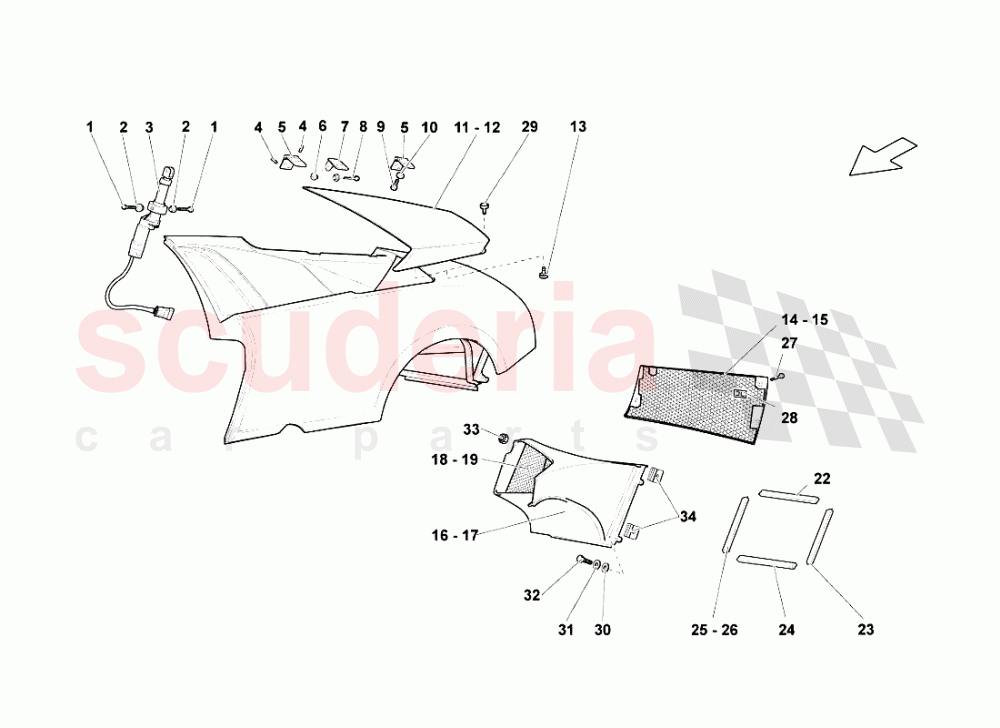

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	WHT003293	SCREW	WHT003293 SCREW	$28.84	2
002	410810967	BUSHING	410810967 BUSHING	$22.92	2
003	410901119A	POWER STEERING MOTOR	410901119A POWER STEERING MOTOR	$2,616.94	2
004	N10073601	PIN 3X14	N10073601 PIN 3X14	$0.53 MSRP: ~~7.31~~ (92.7% off)	8
005	410814525	MOVABLE AIR INTAKE HINGE ASSEMBLY	410814525 MOVABLE AIR INTAKE HINGE ASSEMBLY	$251.36	4
006	410827547	BUSHING	410827547 BUSHING	$7.47	2
007	410119185	BRACKET	410119185 BRACKET	$487.89	1
008	410827855	JOURNAL	410827855 JOURNAL	$36.36	1
009	N01020717	SCREW M5X12	N01020717 SCREW M5X12	$0.67 MSRP: ~~7.31~~ (90.8% off)	8
010	N10612001	WASHER	N10612001 WASHER	$0.48	8
011	418119361	LEFT MOVABLE AIR INTAKE ASSEMBLY	418119361 LEFT MOVABLE AIR INTAKE ASSEMBLY	$11,458.30	1
012	418119362	RIGHT MOVABLE AIR INTAKE ASSEMBLY	418119362 RIGHT MOVABLE AIR INTAKE ASSEMBLY	$11,458.30	1
013	410853809	MOUNTING BUFFER	410853809 MOUNTING BUFFER	$42.61	2
014	410807684	RIGHT REAR GRID ON BUMPERS	410807684 RIGHT REAR GRID ON BUMPERS	$215.06	1
015	410807683	LEFT REAR GRID ON BUMPERS	410807683 LEFT REAR GRID ON BUMPERS	$1,827.95	1
016	410121282	WATER RADIATOR RIGHT CONVEYOR ASSEMBLY	410121282 WATER RADIATOR RIGHT CONVEYOR ASSEMBLY	$747.31	1
017	410121281	WATER RADIATOR LEFT CONVEYOR ASSEMBLY	410121281 WATER RADIATOR LEFT CONVEYOR ASSEMBLY	$622.30	1
018	410121556	RH NET	410121556 RH NET	$349.46	1
019	410121555	LH NET	410121555 LH NET	$365.61	1
022	410121221A	GASKET TOP CONVEYOR	410121221A GASKET TOP CONVEYOR	$5.11	1
022	410121221D	LEFT GASKET TOP CONVEYOR	410121221D LEFT GASKET TOP CONVEYOR	$5.24	1
023	410121221C	GASKET CONVEYOR	410121221C GASKET CONVEYOR	$3.92	2
024	410121221B	GASKET BOTTOM CONVEYOR	410121221B GASKET BOTTOM CONVEYOR	$4.16	2
025	410121221	GASKET LEFT CONVEYOR	410121221 GASKET LEFT CONVEYOR	$3.71	1
026	410121221E	GASKET RIGHT CONVEYOR	410121221E GASKET RIGHT CONVEYOR	$3.55	1
027	WHT003574	SCREW	WHT003574 SCREW	$0.89 MSRP: ~~7.25~~ (87.7% off)	8
028	WHT000916A	CLIP	WHT000916A CLIP	$15.41	8
029	410807895	PLUG	410807895 PLUG	$31.93	3
030	WHT002961	WASHER	WHT002961 WASHER	$0.42	4
031	WHT002963	WASHER	WHT002963 WASHER	$0.13 MSRP: ~~7.38~~ (98.2% off)	6
032	N90612002	SCREW M6X14	N90612002 SCREW M6X14	$0.80 MSRP: ~~7.29~~ (89% off)	6
033	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	2
