Oil System Radiator 1 of Lamborghini Lamborghini Murcielago LP640

View All

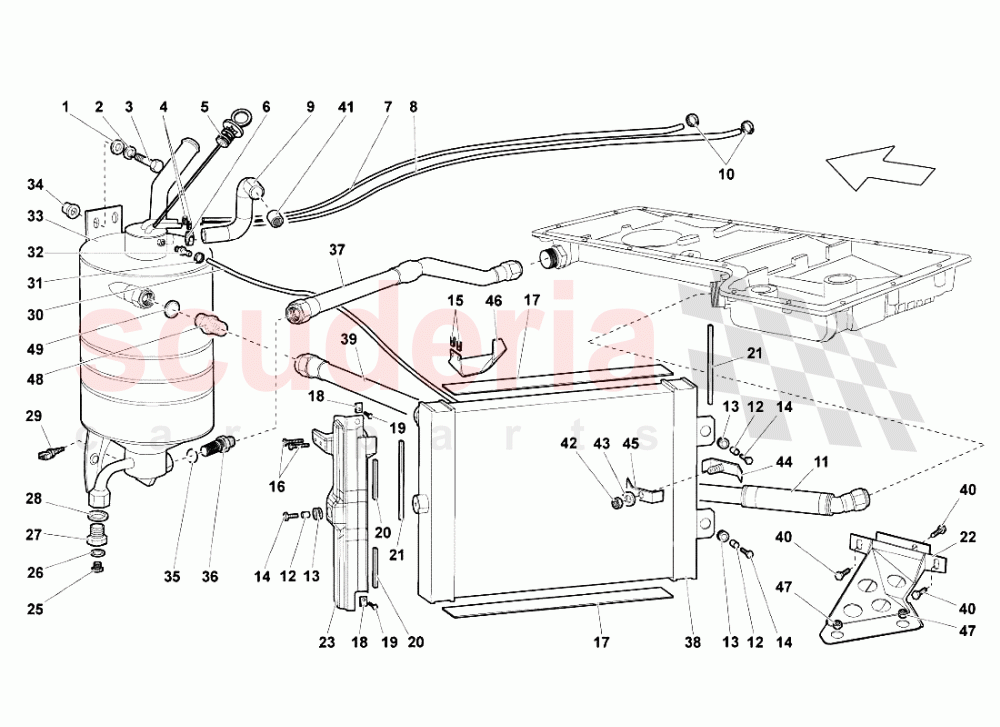

Lamborghini Murcielago LP640 - Oil System Radiator 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N90840802	WASHER IN STOCK	N90840802 WASHER IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	3
002	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	3
003	N10545402	SCREW M8X25.00-S1-N	N10545402 SCREW M8X25.00-S1-N	$4.06 MSRP: ~~7.17~~ (43.4% off)	3
004	N90293002	CLAMP	N90293002 CLAMP	$1.89 MSRP: ~~7.09~~ (73.3% off)	2
005	7M115311D	PLUG	7M115311D PLUG	$1,834.69	1
006	N91054301	CLAMP	N91054301 CLAMP	$5.85	2
007	7M115278F	PIPE (LEFT CYLINDER	7M115278F PIPE (LEFT CYLINDER	$35.95	1
008	7M115278E	PIPE (RIGHT CYLINDER	7M115278E PIPE (RIGHT CYLINDER	$45.21	1
009	7M115657	PIPE	7M115657 PIPE	$147.86	1
010	400251189E	CLAMP	400251189E CLAMP	$14.38	2
011	7M117413B	PIPE	7M117413B PIPE	$2,506.74	1
012	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	$15.47	3
013	7L121585	RUBBER BUSHING	7L121585 RUBBER BUSHING	$18.96	3
014	N90533003	BOLT, HEX. HD. (COMBI.) SELF-LOCKING IN STOCK	N90533003 BOLT, HEX. HD. (COMBI.) SELF-LOCKING IN STOCK	$3.05	3
015	N0154523	CLIP ST4.2X13.00X11.00	N0154523 CLIP ST4.2X13.00X11.00	$0.28 MSRP: ~~7.36~~ (96.2% off)	2
016	N90986803	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.01	2
017	7M117025	GASKET	7M117025 GASKET	$11.83	2
018	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$0.94	2
019	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	2
020	410853669	GASKET	410853669 GASKET	$9.08	2
021	7M117070	GASKET	7M117070 GASKET	$11.17	2
022	410117095A	BRACKET	410117095A BRACKET	$592.77	1
023	410853343	BRACKET	410853343 BRACKET	$602.16	1
025	N0297042	PLUG M18X1.50 IN STOCK	N0297042 PLUG M18X1.50 IN STOCK	$10.76	1
026	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	1
027	7M115707A	CONNECTOR	7M115707A CONNECTOR	$126.35	1
028	WHT003050	WASHER IN STOCK	WHT003050 WASHER IN STOCK	$6.77	1
029	7L919501A	Water Temperature Sensor IN STOCK	7L919501A Water Temperature Sensor IN STOCK	$359.56	1
030	7M115655	PIPE	7M115655 PIPE	$154.58	1
031	N91054301	CLAMP	N91054301 CLAMP	$5.85	2
032	7M115458	CONNECTOR	7M115458 CONNECTOR	$51.88	1
033	7M115373	OIL TANK	7M115373 OIL TANK	$2,170.69	1
034	410814939	BUSHING	410814939 BUSHING	$8.35	1
035	WHT003309	WASHER	WHT003309 WASHER	$30.67	1
036	7M115157	CONNECTOR	7M115157 CONNECTOR	$3,004.05	1
037	7M115688A	PIPE	7M115688A PIPE	$1,095.44	1
038	7M117021A	OIL RADIATOR	7M117021A OIL RADIATOR	$4,112.88	1
039	7M115689A	PIPE	7M115689A PIPE	$904.58	1
040	N10005207	SCREW M8X18	N10005207 SCREW M8X18	$7.53	1
041	7L129793	FLAME TRAP IN STOCK	7L129793 FLAME TRAP IN STOCK	$116.14	1
042	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	1
043	WHT003407	WASHER IN STOCK	WHT003407 WASHER IN STOCK	$0.53 MSRP: ~~7.31~~ (92.7% off)	1
044	7M115633A	BRACKET	7M115633A BRACKET	$29.11	1
045	7M115634A	BRACKET	7M115634A BRACKET	$25.21	1
046	410853595	BRACKET	410853595 BRACKET	$76.08	1
047	WHT003112	NUT M5	WHT003112 NUT M5	$0.70	1
048	400115707	CONNECTOR	400115707 CONNECTOR	$34.14	1
049	WHT000674	WASHER IN STOCK	WHT000674 WASHER IN STOCK	$2.69 MSRP: ~~7.04~~ (61.8% off)	1
