Lamborghini Murcielago LP640 - Secondary Air System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

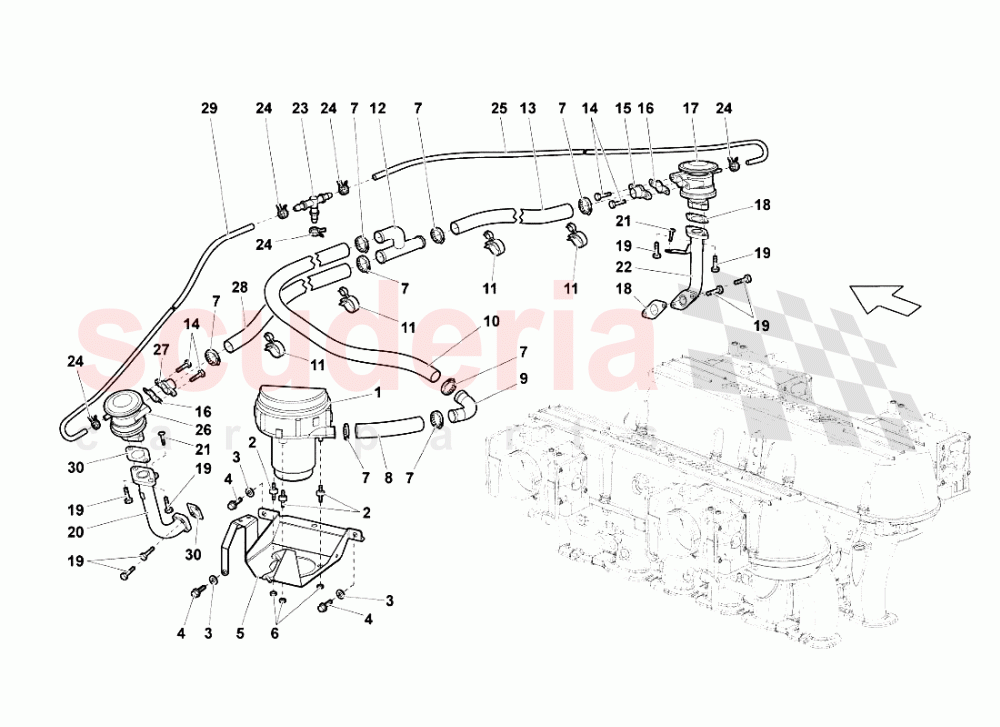

Secondary Air System of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 78906601F
PUMP 		- 1 Enquire
002 400972081C
FLEXIBLE SUPPORT 		- 3 Enquire
003 WHT002961
WASHER 		- 3 Enquire
004 N10718801
HEX COLLARED BOLT 		- 3 Enquire
005 410906613B
BRACKET 		- 1 Enquire
006 N01508213
HEXAGON COLLAR NUT 		- 3 Enquire
007 N10255601
CLAMP 		- 8 Enquire
008 7M131371A
PIPE 		- 1 Enquire
009 7M131163
CONNECTOR 		- 1 Enquire
010 7M131149B
PIPE 		- 1 Enquire
011 N10291602
CLAMP 		- 4 Enquire
012 7M131598
CONNECTOR 		- 1 Enquire
013 7M131611C
PIPE (RIGHT-HAND) 		- 1 Enquire
014 N10338903
SCREW M6X16 		- 4 Enquire
015 7L131585
PIPE FITTING 		- 1 Enquire
016 7L131358
GASKET 		- 2 Enquire
017 78131102N
PNEUMATIC VALVE 		- 1 Enquire
018 7M131354
GASKET (RIGHT-HAND) 		- 2 Enquire
019 N10338903
SCREW M6X16 		- 8 Enquire
020 7M131584A
RH PIPE 		- 1 Enquire
021 N90638102
ROUND HD. SCREW 		- 2 Enquire
022 7M131583A
LH PIPE 		- 1 Enquire
023 7L133579
T-PIECE 		- 1 Enquire
024 400127217
CLAMP 		- 5 Enquire
025 7M131145A
PIPE 		- 1 Enquire
026 78131102N
PNEUMATIC VALVE 		- 1 Enquire
027 7L131585
PIPE FITTING 		- 1 Enquire
028 7M131611C
PIPE (RIGHT-HAND) 		- 1 Enquire
029 7M131145A
PIPE 		- 1 Enquire
030 7M131354
GASKET (RIGHT-HAND) 		- 2 Enquire
