Lamborghini Murcielago - HAND BRAKE

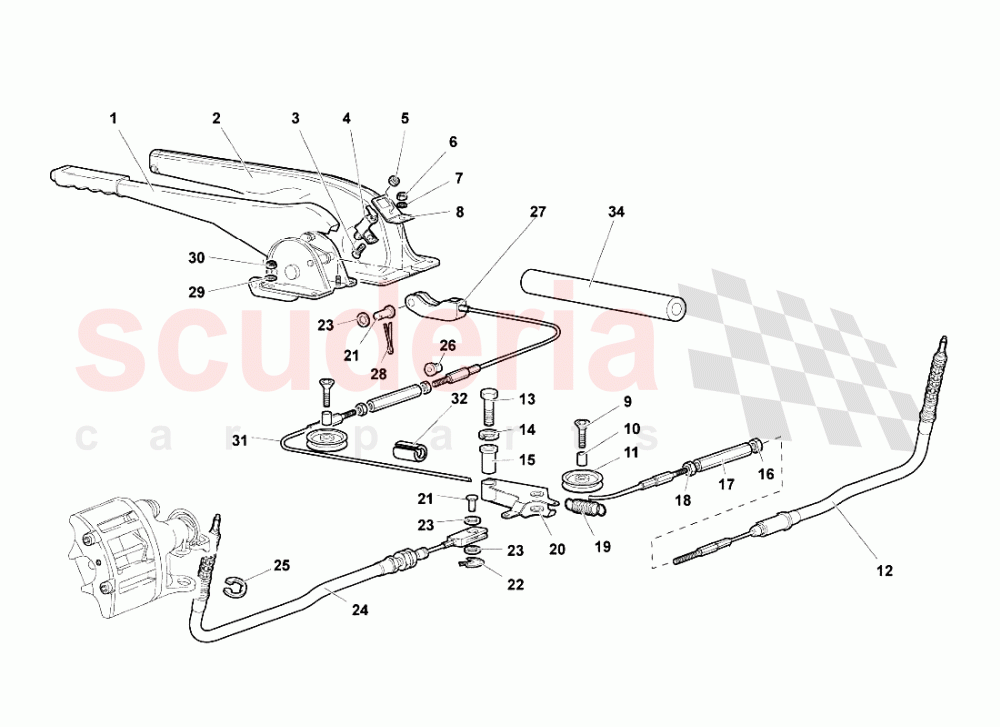

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410711305A	HAND BRAKE LEVER (CARBON INTERIOR - SUPPLY VIN)	410711305A HAND BRAKE LEVER (CARBON INTERIOR - SUPPLY VIN)	$6,545.68	1
001	410711305	HAND BRAKE LEVER (STANDARD)	410711305 HAND BRAKE LEVER (STANDARD)	$1,861.57	1
002	418711115	COVERING (LEATHER INTERIOR - SUPPLY VIN)	418711115 COVERING (LEATHER INTERIOR - SUPPLY VIN)	$396.51	1
003	WHT002756	SCREW	WHT002756 SCREW	-	1	Enquire
004	410711323	BUTTON	410711323 BUTTON	$19.91	1
005	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	1
006	N0211963	NUT IN STOCK	N0211963 NUT IN STOCK	$0.76	1
007	WHT001187	WASHER IN STOCK	WHT001187 WASHER IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	1
008	410711403	SUPPORT	410711403 SUPPORT	$43.03	1
009	8700851	SCREW	8700851 SCREW	$0.82 MSRP: ~~7.26~~ (88.7% off)	3
010	410711342	BUSHING	410711342 BUSHING	$32.14	3
011	410711340	PULLEY	410711340 PULLEY	$689.52	3
012	410609701A	Cable	410609701A Cable	$287.62	1
013	8101407	SCREW M14X55	8101407 SCREW M14X55	$5.33 MSRP: ~~5.45~~ (2.2% off)	1
014	8411404	WASHER	8411404 WASHER	$0.49 MSRP: ~~7.32~~ (93.3% off)	1
015	410609815	SPACER	410609815 SPACER	$47.84	1
016	8200607	NUT M6	8200607 NUT M6	$12.78 MSRP: ~~13.30~~ (3.9% off)	1
017	410609206	ADJUSTING SLEEVE (CERAMIC BRAKE)	410609206 ADJUSTING SLEEVE (CERAMIC BRAKE)	$239.25	1
017	414609206	ADJUSTING SLEEVE	414609206 ADJUSTING SLEEVE	$193.56	1
018	N01100632	NUT M6	N01100632 NUT M6	$4.52 MSRP: ~~7.33~~ (38.3% off)	1
019	410609707A	SPRING	410609707A SPRING	$18.29	1
020	410711347	SUPPORT	410711347 SUPPORT	$119.62	1
021	410609789	JOURNAL	410609789 JOURNAL	$30.59	2
022	8820203	CLIP	8820203 CLIP	-	1	Enquire
023	N0122094	WASHER IN STOCK	N0122094 WASHER IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	3
024	410609702A	TIE ROD	410609702A TIE ROD	$372.33	1
025	WHT003586	RETAINING RING IN STOCK	WHT003586 RETAINING RING IN STOCK	$0.68 MSRP: ~~7.35~~ (90.7% off)	2
026	410609155	RUBBER BUSHING	410609155 RUBBER BUSHING	$16.86	1
027	413609722A	TIE ROD	413609722A TIE ROD	$540.33	1
028	8820201	SPLIT PIN	8820201 SPLIT PIN	$6.52 MSRP: ~~6.60~~ (1.2% off)	1
029	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	4
030	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	4
032	410609774	BUSHING	410609774 BUSHING	$107.12	1
034	10600150	PROTECTION (ORDER BY THE METRE)	10600150 PROTECTION (ORDER BY THE METRE)	$57.99	1
