REAR BRAKES of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - REAR BRAKES

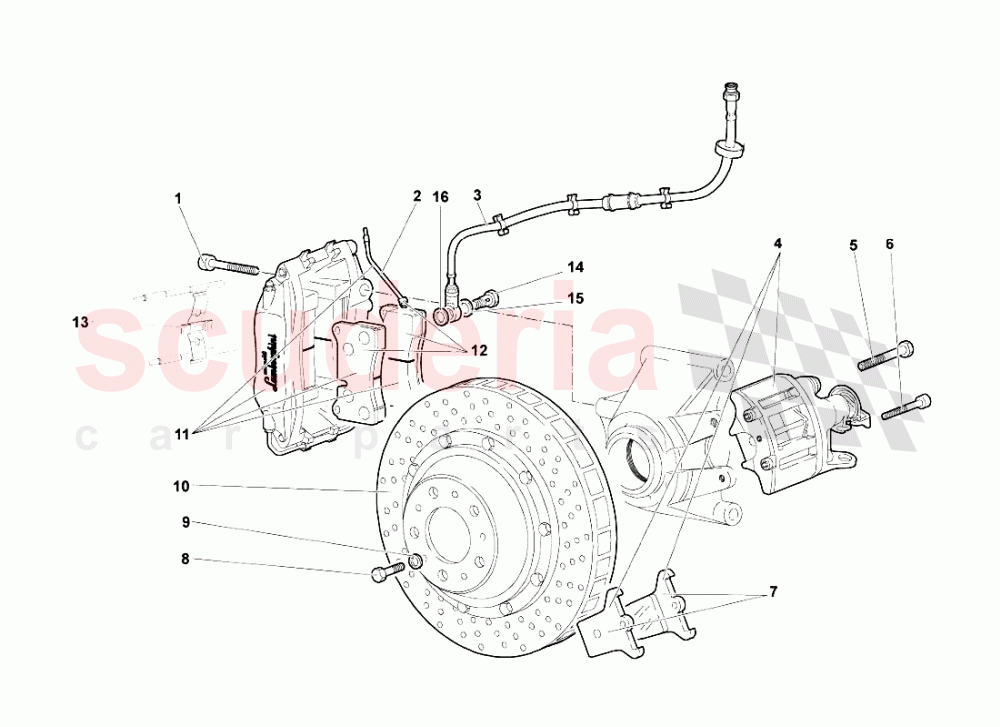

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT001330	SCREW	WHT001330 SCREW	-	4	Enquire
003	400611775A	HOSE	400611775A HOSE	-	2	Enquire
004	410615403A	LH BRAKE CALIPER	410615403A LH BRAKE CALIPER	-	1	Enquire
004	410615404A	RH BRAKE CALIPER	410615404A RH BRAKE CALIPER	-	1	Enquire
005	WHT002636	SCREW	WHT002636 SCREW	-	2	Enquire
006	WHT003311	SCREW	WHT003311 SCREW	-	2	Enquire
007	410615115D	Hand Brake Pads ARRIVING SOON	410615115D Hand Brake Pads (4 pcs. required ) ARRIVING SOON	-	4	Enquire
008	N10572401	SCREW	N10572401 SCREW	-	6	Enquire
009	WHT000771	WASHER	WHT000771 WASHER	-	6	Enquire
010	410615601	BRAKE DISK	410615601 BRAKE DISK	-	2	Enquire
011	410615406B	YELLOW RH REAR BRAKE CALIPER	410615406B YELLOW RH REAR BRAKE CALIPER	-	1	Enquire
011	410615406A	GREY RH REAR BRAKE CALIPER	410615406A GREY RH REAR BRAKE CALIPER	-	1	Enquire
011	410615406	BLACK RH REAR BRAKE CALIPER	410615406 BLACK RH REAR BRAKE CALIPER	-	1	Enquire
011	410615405	BLACK LH REAR BRAKE CALIPER	410615405 BLACK LH REAR BRAKE CALIPER	-	1	Enquire
011	410615405B	YELLOW LH REAR BRAKE CALIPER	410615405B YELLOW LH REAR BRAKE CALIPER	-	1	Enquire
011	410615405A	GREY LH REAR BRAKE CALIPER	410615405A GREY LH REAR BRAKE CALIPER	-	1	Enquire
012	400698451	BRAKE PAD SET	400698451 BRAKE PAD SET	-	1	Enquire
013	400698135A	JOURNAL AND CLIP	400698135A JOURNAL AND CLIP	-	2	Enquire
014	WHT003303	SCREW WITH HOLE	WHT003303 SCREW WITH HOLE	-	2	Enquire
015	WHT001191	WASHER	WHT001191 WASHER	-	2	Enquire
016	WHT001191	WASHER	WHT001191 WASHER	-	2	Enquire
