BRAKE SYSTEM

Find Your Part

Lamborghini Murcielago - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

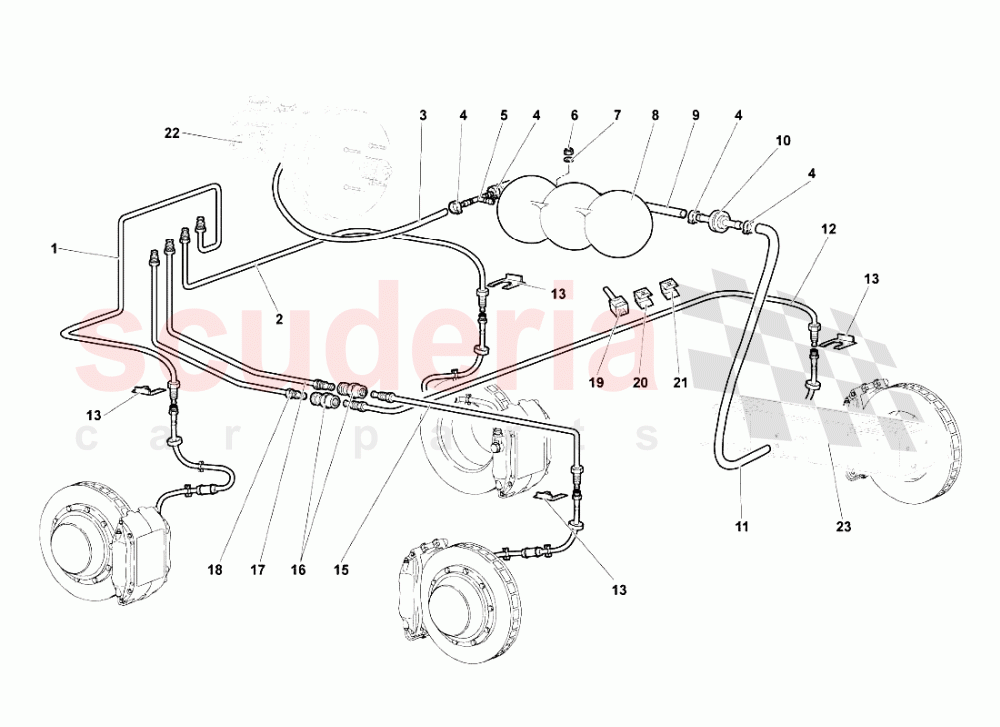

BRAKE SYSTEM of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410611723
LEFT PIPE 		$63.17 1
002 410611724
RIGHT PIPE 		$186.83 1
003 413611971
BRAKE BOOSTER/VACUUM FLEXIBLE HOSE 		$256.05 1
004 N0245097
CLAMP 		$18.10 4
005 400611921
CONNECTOR 		$2.02 (71.3% off) 1
006 WHT000760
NUT M5 		$0.13 2
007 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.53 2
008 443131541
VACUUM TANK ASSEMBLY 		$34.69 1
009 410611936
PIPE FROM VALVE TO VACUUM TANK 		$38.84 1
010 410616807
VALVE 		$35.78 1
011 410611937
VACUUM MANIFOLD BRANCH PIPE 		$86.02 1
012 410611748
RIGHT CALIPER FLEXIBLE/CONNECTION HOSE 		$106.99 1
013 400611949
PLATE 		$29.39 4
015 410611747
LEFT CALIPER FLEXIBLE/CONNECTION HOSE 		$93.16 1
016 410611809
CONNECTOR 		$51.97 2
017 410611746
LEFT CENTRAL/CONNECTION PIPE 		$93.16 1
018 410611745
RIGHT CENTRAL/CONNECTION PIPE 		$93.16 1
019 400611757
JOURNAL 		$2.08 (70.5% off) 25
020 400611799
BRACKET 0 5 MM 		$0.79 (89.1% off) 21
021 400971848
BRACKET 0 6 MM 		$0.62 (91.5% off) 4
