Air Conditioning System

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

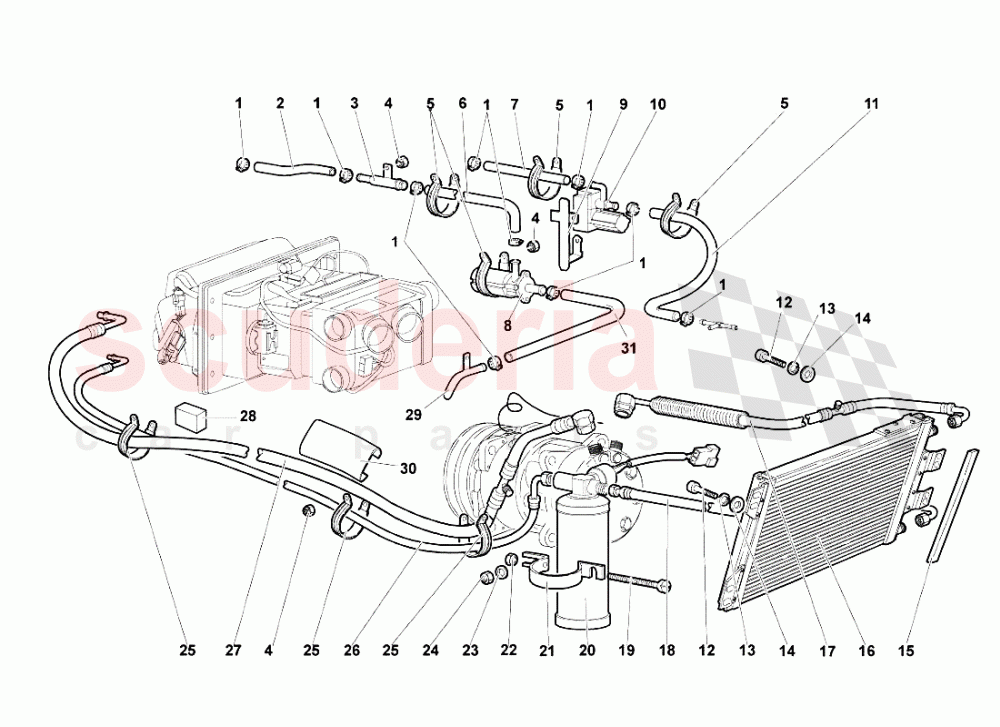

AIR CONDITIONING SYSTEM of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8832003
CLAMP 		- 10 Enquire
002 7M121127
SLEEVE 		- 1 Enquire
003 410819377
CONNECTOR 		- 1 Enquire
005 8832804
CLAMP 		- 1 Enquire
006 410819370
Sleeve for Auxiliary Water Pump 		- 1 Enquire
007 413819371
SLEEVE 		- 1 Enquire
008 410819025
PUMP 		- 1 Enquire
009 410260761
SUPPORT 		- 1 Enquire
010 410260155
SOLENOID VALVE 		- 1 Enquire
011 410819372
SLEEVE 		- 1 Enquire
012 8700644
SCREW 		- 4 Enquire
013 WHT001197A
WASHER 		- 4 Enquire
014 WHT002961
WASHER 		- 4 Enquire
015 7M119597A
GASKET 		- 2 Enquire
016 410260401
A/C CONDENSER 		- 1 Enquire
017 410260701
PIPE 		- 1 Enquire
018 410260710
PIPE 		- 1 Enquire
019 8700542
SCREW 		- 1 Enquire
020 410820193A
DEHYDRATOR FILTER (FROM VIN 1240) 		- 1 Enquire
021 410820140
CLAMP (FROM VIN 1240) 		- 1 Enquire
022 N0211963
NUT 		- 1 Enquire
023 N90179103
WASHER 18X8,4X2,5 		- 2 Enquire
024 8200804
NUT M8 		- 2 Enquire
025 8832804
CLAMP 		- 3 Enquire
026 413260709
PIPE (FROM VIN 1240) 		- 1 Enquire
027 413260740
PIPE 		- 1 Enquire
028 410817432
PROTECTION 		- 1 Enquire
029 410819159
INTERMEDIATE JOINT 		- 1 Enquire
030 410819818
PROTECTION 		- 2 Enquire
031 410819362
SLEEVE 		- 1 Enquire
