Lamborghini Murcielago - WATER PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

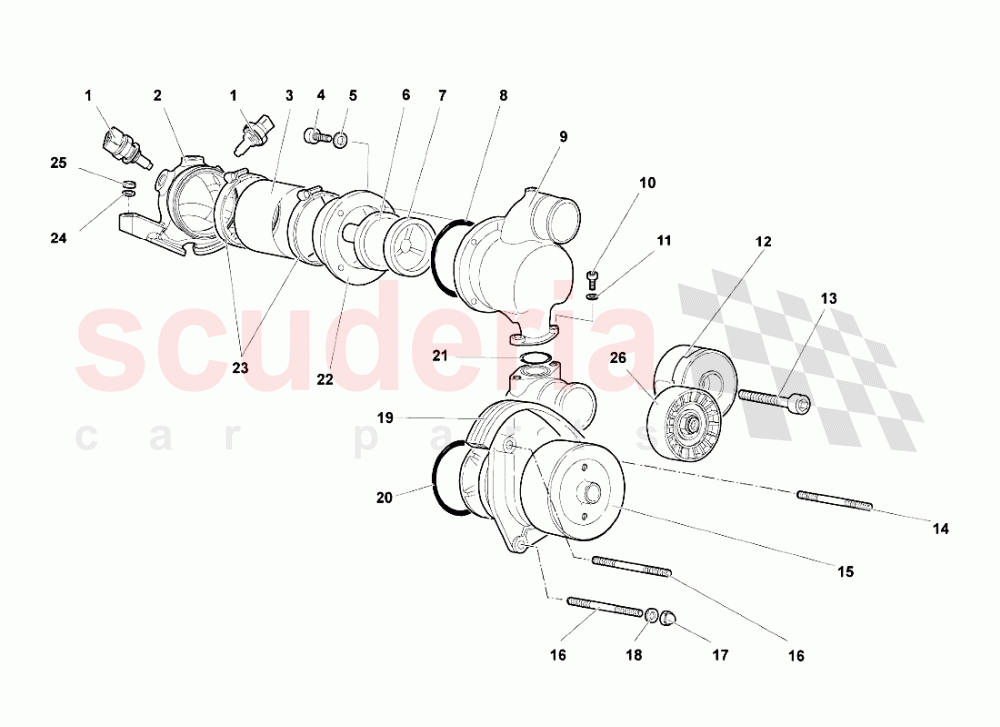

WATER PUMP of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7L919501A
Water Temperature Sensor 		$359.56 2
002 7M121121
WATER COLLECTING BODY FROM HEADS 		$620.96 1
003 7M121118
SLEEVE 		$325.96 1
004 8700614
SCREW 		$0.27 4
005 WHT001197A
WASHER 		$0.30 4
006 7M121113
WATER THERMOSTAT 		$283.60 1
007 7M121041
RING 		$52.43 1
008 8607502
SEAL RING 		$3.54 (3% off) 1
009 7M121115
WATER THERMOSTAT BODY 		$728.50 1
010 8100601
SCREW 		$0.27 2
011 WHT001197A
WASHER 		$0.30 2
012 7M109485
AUTOMATIC BELT TIGHTENER (DAYCO) 		$1,235.59 1
013 N10667901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		$3.05 1
014 8300833
STUD BOLT 		$6.09 (3.3% off) 1
015 7M121011
WATER PUMP 		$6,377.68 1
016 WHT003028
THREADED PIN 		$22.30 2
017 8200809
NUT 		$1.96 3
018 WHT002962
WASHER 14X8.4X1.5 		$0.33 (95.5% off) 3
019 7M903137
Belt 		$149.94 1
020 WHT003018
SEAL RING 		$87.36 1
021 WHT003062
SEAL RING 		$6.61 1
022 7M121147
CONNECTOR 		$518.82 1
023 8836001
CLAMP 		$10.70 2
024 WHT001197A
WASHER 		$0.30 2
025 N02214812
HEXAGON NUT, SELF-LOCKING 		$1.96 (73.1% off) 2
026 7M109477
GUIDE PULLEY 		$447.27 1
