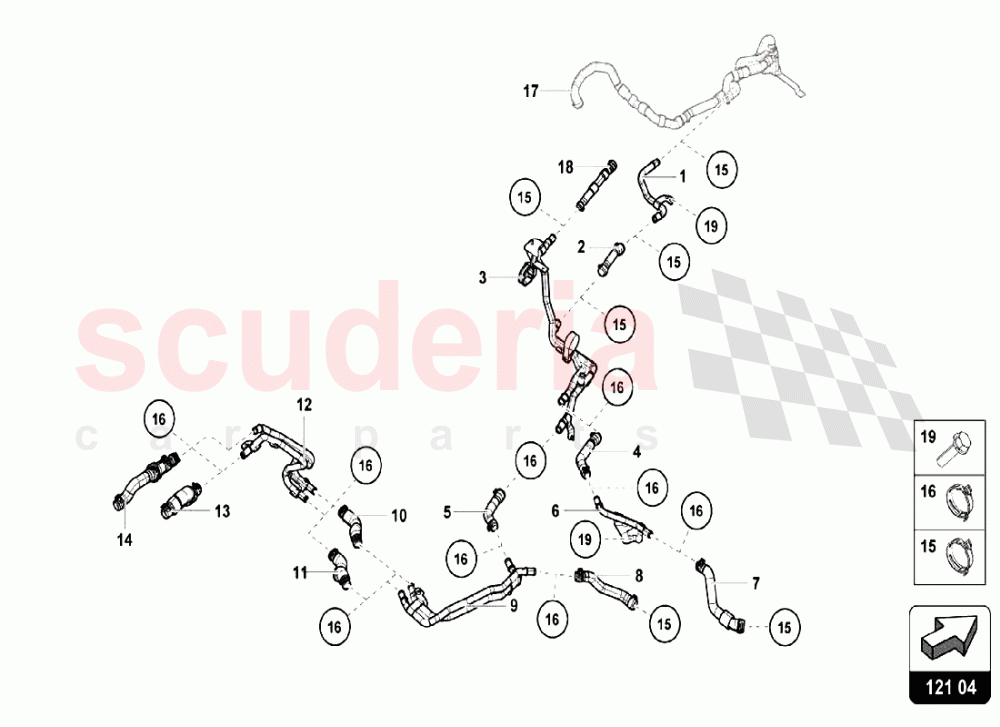

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4S0121487B	COOLANT PIPE	4S0121487B COOLANT PIPE	$48.32	1
002	4S0121058	COOLANT HOSE	4S0121058 COOLANT HOSE	$7.06	1
003	4S0121481C	PIPE	4S0121481C PIPE	$168.04	1
004	4S0121052	COOLANT HOSE	4S0121052 COOLANT HOSE	$12.24	1
005	4S0121056	COOLANT HOSE	4S0121056 COOLANT HOSE	$10.15	1
006	4S0121070A	COOLANT PIPE	4S0121070A COOLANT PIPE	$42.55	1
007	4S0121036A	COOLANT HOSE	4S0121036A COOLANT HOSE	$16.19	1
008	4S0121030D	COOLANT HOSE	4S0121030D COOLANT HOSE	$23.85	1
009	4S0121085E	COOLANT PIPE	4S0121085E COOLANT PIPE	$235.22	1
010	4S0121061B	PIPE	4S0121061B PIPE	$113.18	1
011	4S0121060B	PIPE	4S0121060B PIPE	$11.90	1
012	4S0121050B	PIPE	4S0121050B PIPE	$79.19	1
013	4S0121475D	COOLANT PIPE	4S0121475D COOLANT PIPE	$49.88	1
014	4S0122448A	PIPE	4S0122448A PIPE	$63.71	1
015	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP	$7.56	8
016	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	$0.94	4
018	4S0819371C	COOLANT HOSE WITH QUICK RELEASE COUPLING	4S0819371C COOLANT HOSE WITH QUICK RELEASE COUPLING	$31.53	1
019	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	$1.63	4
