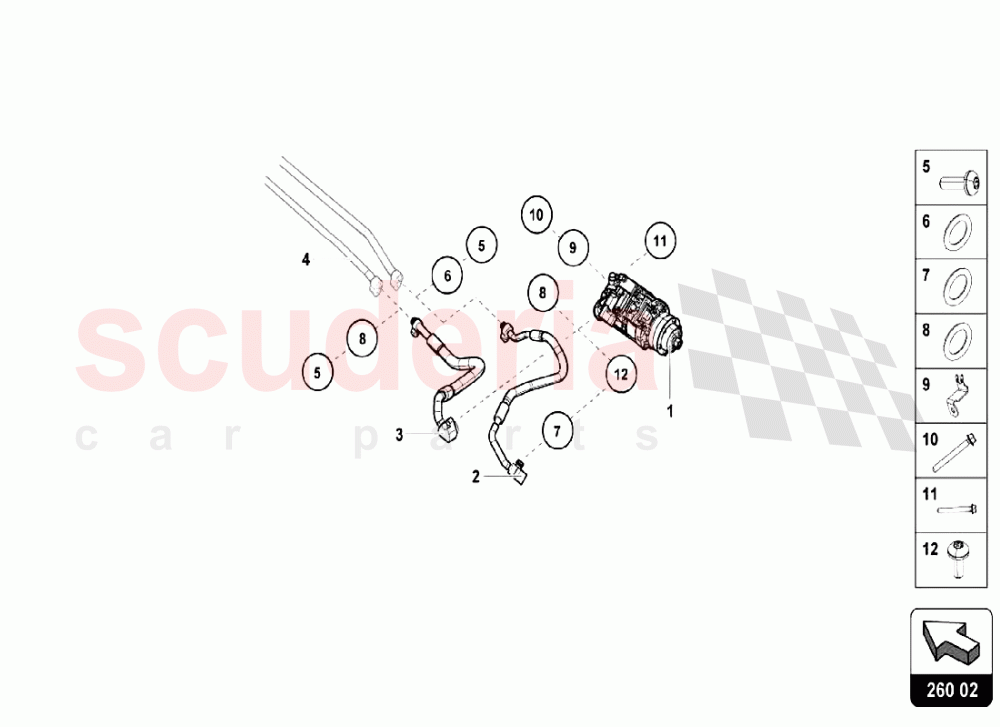

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4S0260805	COMPRESSOR	4S0260805 COMPRESSOR	$3,111.55	1
002	4S0816721C	PIPE	4S0816721C PIPE	$169.36	1
003	4S0816743B	REFRIGERANT LINE	4S0816743B REFRIGERANT LINE	$301.77	1
005	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) IN STOCK	N10347404 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) IN STOCK	$1.08 MSRP: ~~7.25~~ (85.1% off)	4
006	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING IN STOCK	$6.45 MSRP: ~~7.06~~ (8.6% off)	4
007	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.66 MSRP: ~~7.09~~ (20.2% off)	1
008	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING IN STOCK	$6.67 MSRP: ~~7.06~~ (5.5% off)	2
009	420260759C	BRACKET FOR CONNECTOR HOUSING	420260759C BRACKET FOR CONNECTOR HOUSING	$10.15	1
010	N10636601	BOLT,HEX.HD.WITH SHOUL.(COMBI)	N10636601 BOLT,HEX.HD.WITH SHOUL.(COMBI)	$36.64	1
011	N10636501	BOLT,HEX.HD.WITH SHOUL.(COMBI)	N10636501 BOLT,HEX.HD.WITH SHOUL.(COMBI)	$4.10	2
012	N91193003	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N91193003 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$2.84 MSRP: ~~7.24~~ (60.8% off)	8
