Water Cooling System 3

Lamborghini Huracan LP580 Coupe

Find Your Part

Lamborghini Huracan LP580 Coupe - Water Cooling System 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

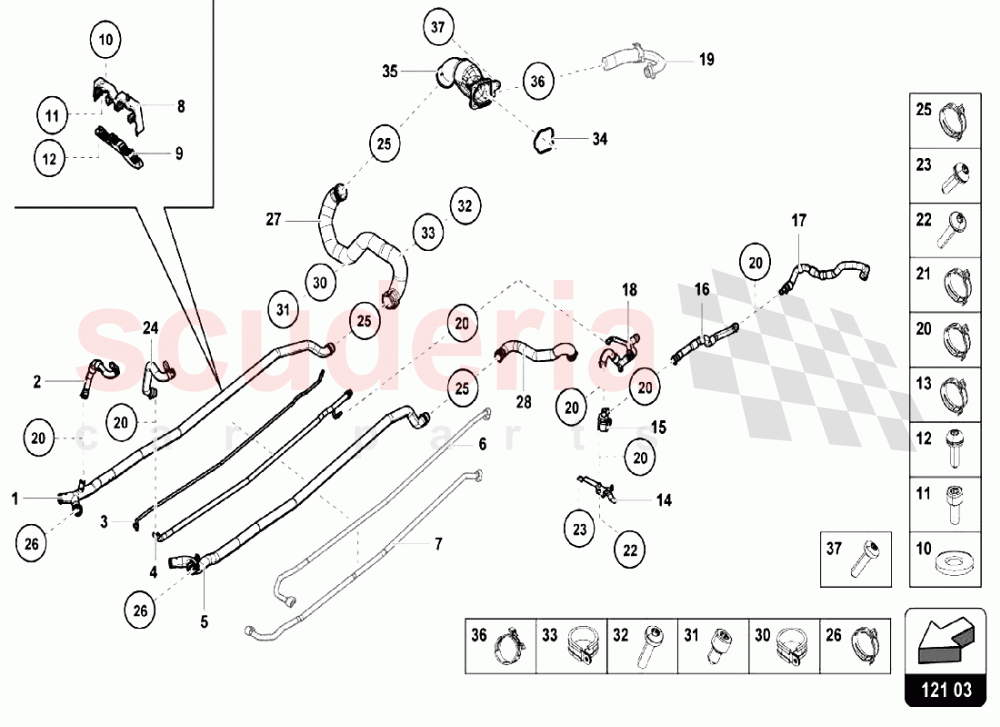

Water Cooling System 3 of Lamborghini Lamborghini Huracan LP580 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4S0121400F
COOLANT PIPE 		- 1 Enquire
002 4S0819372A
COOLANT HOSE 		- 1 Enquire
003 4S0121465F
COOLANT PIPE 		- 1 Enquire
004 4S0819270G
COOLANT PIPE 		- 1 Enquire
005 4S0121485F
COOLANT PIPE 		- 1 Enquire
008 4S0121305B
SUPPORT 		- 1 Enquire
009 4S0121079A
SUPPORT 		- 1 Enquire
011 N10617401
HEXAGON SOCKET HEAD BOLT 		- 8 Enquire
012 N10471803
HEXAGON SOCKET HEAD PANEL BOLT 		- 8 Enquire
013 N90687101
SPRING BAND CLAMP 		- 8 Enquire
014 4S0820536A
BRACKET FOR ADDITIONAL COOLANT PUMP 		- 1 Enquire
015 6H121601N
ADDITIONAL COOLANT PUMP 		- 1 Enquire
016 4S0819375C
COOLANT HOSE 		- 1 Enquire
017 4S0819350C
COOLANT HOSE 		- 1 Enquire
018 4S0819342A
COOLANT PIPE 		- 1 Enquire
020 N90687001
SPRING BAND CLAMP 		- 9 Enquire
021 N90770201
SPRING BAND CLAMP 		- 2 Enquire
022 WHT002306
SELF-TAPPING SCREW 		- 8 Enquire
023 N91096701
OVAL HEXAGON SOCKET HEAD BOLT 		- 8 Enquire
024 4S0819374A
COOLANT PIPE 		- 1 Enquire
025 N90926501
SPRING BAND CLAMP 		- 4 Enquire
026 N90687201
SPRING BAND CLAMP 		- 4 Enquire
027 4S0121101C
COOLANT HOSE 		- 1 Enquire
028 4S0121444B
VENT HOSE 		- 1 Enquire
029 N90926501
SPRING BAND CLAMP 		- 2 Enquire
030 N90687201
SPRING BAND CLAMP 		- 2 Enquire
