EXTERNAL SIDE MEMBER of Lamborghini Lamborghini Huracan LP610 Coupe

View All

Lamborghini Huracan LP610 Coupe - EXTERNAL SIDE MEMBER

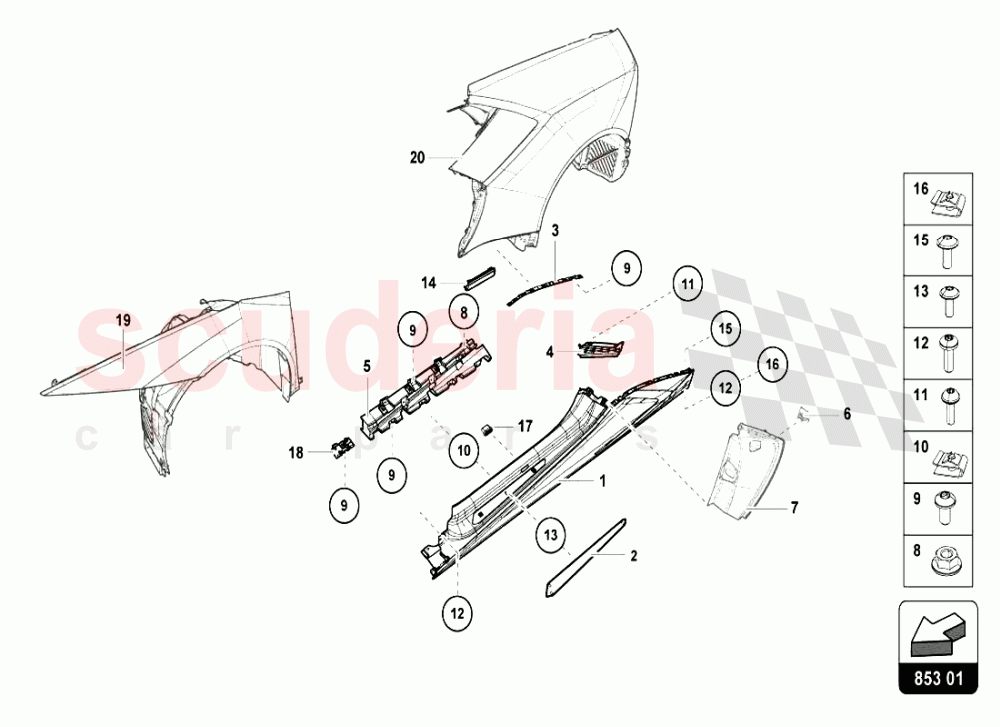

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4T0898308	Side Member (contact Your Area Manager-right Front)	4T0898308 Side Member (contact Your Area Manager-right Front)	$1,727.14	1
001	4T0898307	Side Member (Left Front)	4T0898307 Side Member (Left Front)	$1,727.14	1
002	4T0853373C	SILL TRIM STRIP IN STOCK	4T0853373C SILL TRIM STRIP IN STOCK	$207.57	1
002	4T0853374C	SILL TRIM STRIP	4T0853374C SILL TRIM STRIP	$207.57	1
003	4T0853232A	ARM	4T0853232A ARM	$541.69	1
003	4T0853231A	ARM	4T0853231A ARM	$309.15	1
004	4T0853653	Radiator Grille (left)	4T0853653 Radiator Grille (left)	$65.28	1
004	4T0853654A	RADIATOR GRILLE GRIGLIA BRANCARDO IN STOCK	4T0853654A RADIATOR GRILLE GRIGLIA BRANCARDO IN STOCK	$448.95	1
004	4T0853653B	Radiator Grille (style Package-left)	4T0853653B Radiator Grille (style Package-left)	$448.95	1
004	4T0853654B	Radiator Grille (style Package-right)	4T0853654B Radiator Grille (style Package-right)	$815.85	1
005	4T0853997	Arm (left)	4T0853997 Arm (left)	$130.12	1
005	4T0853998	Arm (right)	4T0853998 Arm (right)	$130.12	1
008	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT IN STOCK	$1.96	2
009	N91042302	OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 IN STOCK	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 IN STOCK	$1.60	22
010	N91042302	OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 IN STOCK	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 IN STOCK	$1.60	4
011	N90698606	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90698606 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.07 MSRP: ~~7.35~~ (85.4% off)	18
012	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$0.76 MSRP: ~~7.27~~ (89.5% off)	16
013	N90944603	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90944603 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.07	6
014	4T0819161	VENT TRIM	4T0819161 VENT TRIM	$31.93	2
015	N91057001	OVAL HEAD PANEL SCREW IN STOCK	N91057001 OVAL HEAD PANEL SCREW IN STOCK	$0.79 MSRP: ~~7.26~~ (89.1% off)	10
016	N90688703	SPEED NUT IN STOCK	N90688703 SPEED NUT IN STOCK	$1.22	6
017	4T0853593A	SEAL	4T0853593A SEAL	$9.21	2
018	4T0853922A	ARM IN STOCK	4T0853922A ARM IN STOCK	$55.64	1
018	4T0853921A	ARM IN STOCK	4T0853921A ARM IN STOCK	$55.64	1
019	4T0821021D	WING	4T0821021D WING	$4,354.85	1
020	4T8809601E	Left Rear Fender Assembly	4T8809601E Left Rear Fender Assembly	$9,831.95	1
