REAR HOOD of Lamborghini Lamborghini Huracan LP610 Coupe

View All

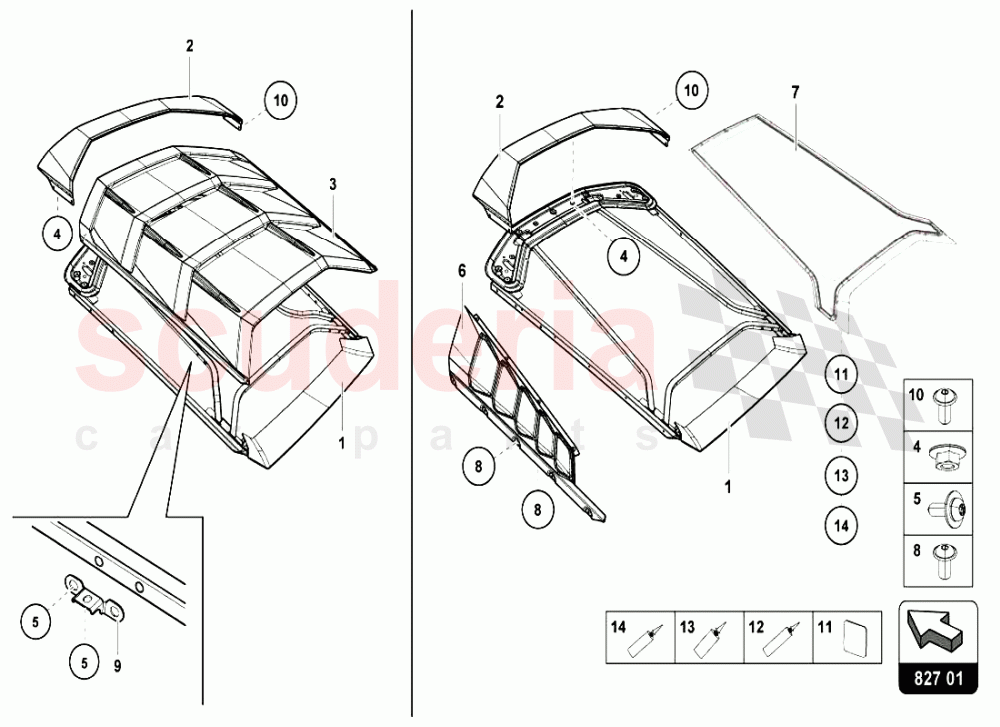

Lamborghini Huracan LP610 Coupe - REAR HOOD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0827023D	ENGINE HOOD (Standard)	4T0827023D ENGINE HOOD (Standard)	-	1	Enquire
001	4T0827023E	ENGINE HOOD (Glass - Optional)	4T0827023E ENGINE HOOD (Glass - Optional)	-	1	Enquire
001	R7240021	Transparent Engine Cover Kit	R7240021 Transparent Engine Cover Kit Style pack (Shiny Black)	-	1	Enquire
001	R7240020	Transparent Engine Cover Kit	R7240020 Transparent Engine Cover Kit	-	1	Enquire
002	4T0853236B	REAR COVERING PANEL UPPER	4T0853236B REAR COVERING PANEL UPPER	-	1	Enquire
003	4T0827270A	REAR COVERING PANEL LOWER (STYLE PACKAGE)	4T0827270A REAR COVERING PANEL LOWER (STYLE PACKAGE)	-	1	Enquire
003	4T0827270	REAR COVERING PANEL LOWER	4T0827270 REAR COVERING PANEL LOWER	-	1	Enquire
004	N90887703	HEXAGON FLANGE NUT, SELF-LOCKING	N90887703 HEXAGON FLANGE NUT, SELF-LOCKING	-	4	Enquire
005	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	N10406504 OVAL HEXAGON SOCKET HEAD BOLT	-	45	Enquire
006	4T0827950A	REAR COVERING PANEL RIGHT (SHINY BLACK)	4T0827950A REAR COVERING PANEL RIGHT (SHINY BLACK)	-	1	Enquire
006	4T0827949D	NOISE INSULATION PLATE	4T0827949D NOISE INSULATION PLATE	-	1	Enquire
006	4T0827949A	REAR COVERING PANEL LEFT (SHINY BLACK)	4T0827949A REAR COVERING PANEL LEFT (SHINY BLACK)	-	1	Enquire
006	4T0827950D	REAR COVERING PANEL RIGHT (MATTE BLACK)	4T0827950D REAR COVERING PANEL RIGHT (MATTE BLACK)	-	1	Enquire
007	4T8827631	VIEW DISC FOR BONNET	4T8827631 VIEW DISC FOR BONNET	-	1	Enquire
008	N90917105	HEX SOCKET OVAL HEAD COLLARED	N90917105 HEX SOCKET OVAL HEAD COLLARED	-	18	Enquire
009	4T8827199	SCREW (M5x18)	4T8827199 SCREW (M5x18)	-	15	Enquire
010	4T8827199	SCREW (M5x18)	4T8827199 SCREW (M5x18)	-	4	Enquire
011	52900112	SCOTCH BRITE RED 3M 7447	52900112 SCOTCH BRITE RED 3M 7447	-	1	Enquire
012	8970161	ISOPROPANOLO ISP 1510 (500 ml)	8970161 ISOPROPANOLO ISP 1510 (500 ml)	-	1	Enquire
013	8967221	Primer EFBOND DV993 (300 ml)	8967221 Primer EFBOND DV993 (300 ml)	-	1	Enquire
014	8967219	SEAL	8967219 SEAL	-	1	Enquire
