REAR BUMPERS of Lamborghini Lamborghini Huracan LP610 Coupe

View All

Lamborghini Huracan LP610 Coupe - REAR BUMPERS

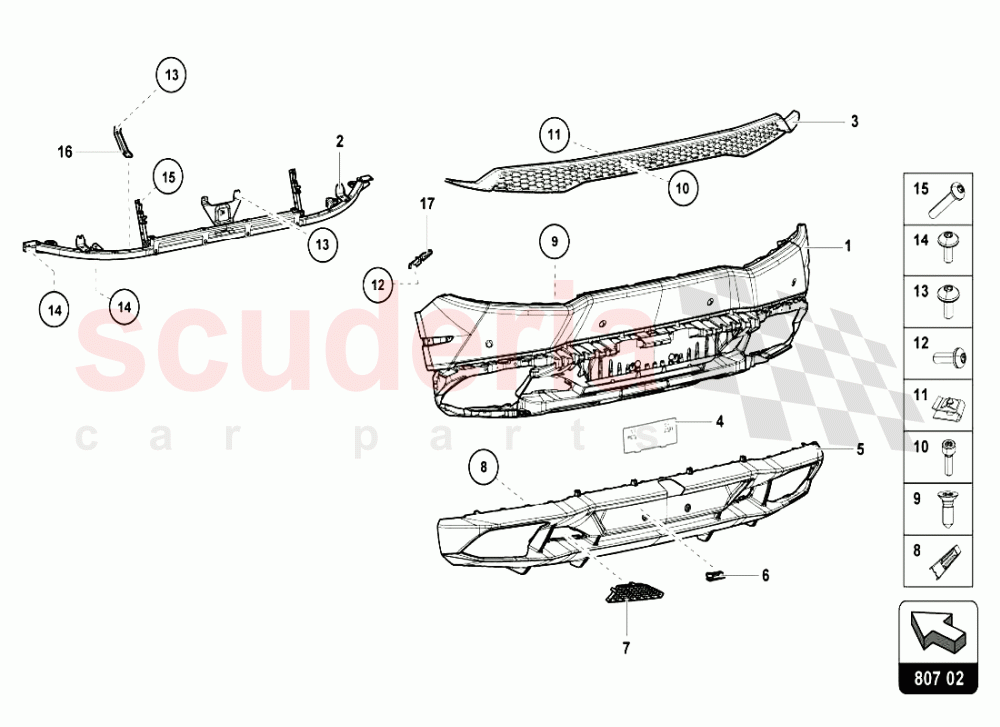

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0807497	REAR BUMPER ASSEMBLY (CONTACT YOUR AREA MANAGER)	4T0807497 REAR BUMPER ASSEMBLY (CONTACT YOUR AREA MANAGER)	-	1	Enquire

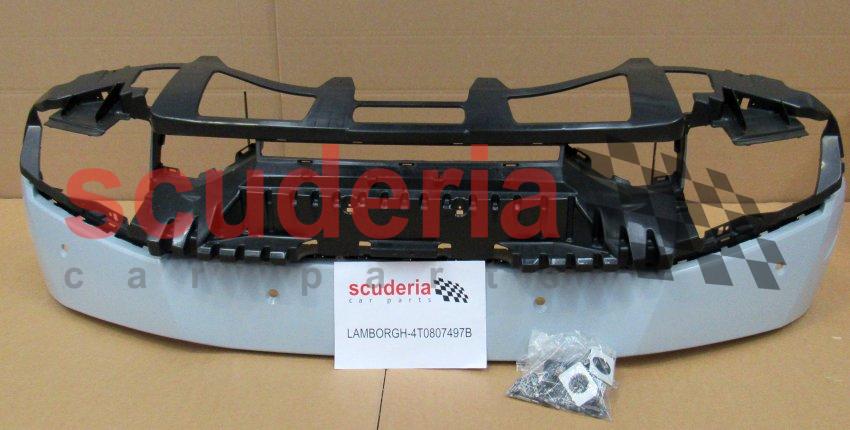

001	4T0807497B	Rear Bumper Assembly (Parking Sensor - Includes Bracket For Parking Sensors)	4T0807497B Rear Bumper Assembly (Parking Sensor - Includes Bracket For Parking Sensors)	-	1	Enquire
002	4T0813753D	REAR BUMPERS CROSS MEMBER	4T0813753D REAR BUMPERS CROSS MEMBER	-	1	Enquire

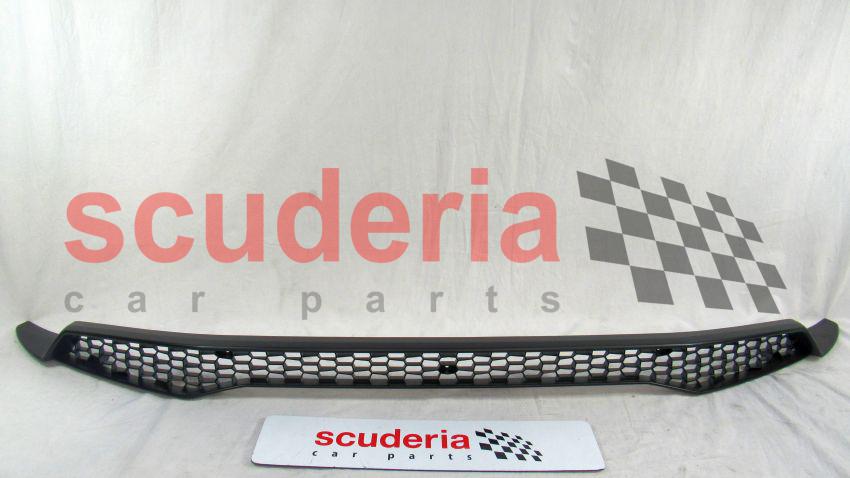

003	4T0807684	GRID	4T0807684 GRID	-	1	Enquire
005	4T0807539D	COVERING (VALID ONLY FOR CHINA-CONTACT YOUR AREA MANAGER)	4T0807539D COVERING (VALID ONLY FOR CHINA-CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	4T0807539	COVERING (CONTACT YOUR AREA MANAGER)	4T0807539 COVERING (CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	4T0807539E	COVERING (RVC - VALID ONLY FOR CHINA-CONTACT YOUR AREA MANAGER)	4T0807539E COVERING (RVC - VALID ONLY FOR CHINA-CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	4T0807539A	COVERING (RVC-CONTACT YOUR AREA MANAGER)	4T0807539A COVERING (RVC-CONTACT YOUR AREA MANAGER)	-	1	Enquire
006	420943021	LICENCE PLATE LIGHT	420943021 LICENCE PLATE LIGHT	-	2	Enquire
007	4T0807698	RIGHT GRID	4T0807698 RIGHT GRID	-	1	Enquire
007	4T0807697	LEFT GRID	4T0807697 LEFT GRID	-	1	Enquire
009	420807739	SHOULDERED BOLT	420807739 SHOULDERED BOLT	-	6	Enquire
011	N90777702	SPEED NUT	N90777702 SPEED NUT	-	10	Enquire
012	N90896301	Hexagon Socket Head Bolt (m6x20)	N90896301 Hexagon Socket Head Bolt (m6x20)	-	4	Enquire
013	N10748001	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N10748001 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	-	6	Enquire
014	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	6	Enquire
015	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	-	4	Enquire
016	4T0813193B	BRACKET	4T0813193B BRACKET	-	2	Enquire
017	4T0807986B	BRACKET	4T0807986B BRACKET	-	1	Enquire
017	4T0807985B	BRACKET ARRIVING SOON	4T0807985B BRACKET ARRIVING SOON	-	1	Enquire
