Electrical System 4

Find Your Part

Lamborghini Gallardo Superleggera - Electrical System 4

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

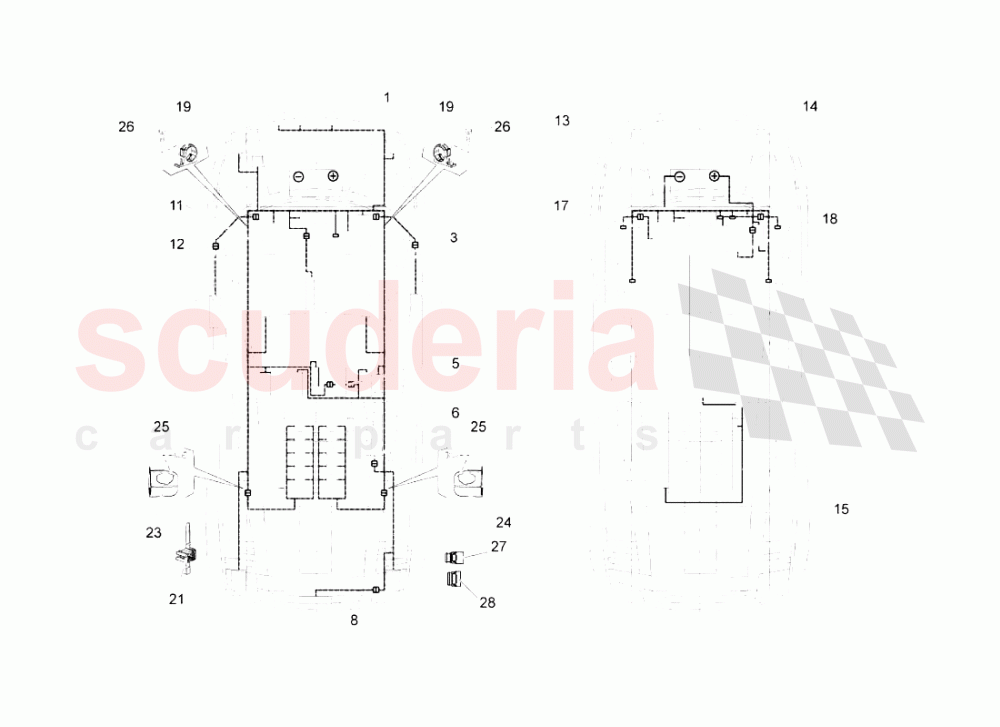

Electrical System 4 of Lamborghini Lamborghini Gallardo Superleggera Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 408971135BK
CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / E-GEAR) 		$14,932.76 1
001 408971135BF
CENTRAL WIRING HARNESS (RNS / CD CHANGER / MANUAL GEARBOX) 		$13,111.50 1
001 408971135BG
CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / MANUAL GEARBOX) 		$13,702.93 1
001 408971135BJ
CENTRAL WIRING HARNESS (RNS / CD CHANGER / E-GEAR) 		$14,919.30 1
003 402971035B
DOOR WIRING HARNESS (DRIVER SIDE) 		$323.25 1
005 408971258D
ENGINE RELAY BOX WIRING HARNESS 		$1,211.03 1
006 408971771
WIRING HARNESS (E-GEAR) 		$198.94 1
008 400971194A
WIRING HARNESS 		$217.75 1
011 400970264
TUNNEL WIRING HARNESS 		$62.89 1
012 400971036A
DOOR WIRING HARNESS (PASSENGER SIDE) 		$200.26 1
013 400971235B
CABLE 		$33.22 1
015 400971793B
CABLE (CABLE STARTER MOTOR EXCITATION) 		$154.58 1
017 408971315L
WIRING HARNESS DASHBOARD (VERSIONS WITH NAVIGATOR) 		$1,141.12 1
017 408971315J
WIRING HARNESS DASHBOARD (VERSIONS WITHOUT NAVIGATOR) 		$1,099.46 1
018 400971679A
WIRING HARNESS (PASSENGER SIDE DRAWER) 		$117.08 1
019 400971899
CLAMP ( - 23 MM) 		$7.68 4
019 400971899
CLAMP ( - 23 MM) 		$7.68 3
021 3D0971838E
CLAMP 		$2.29 2
023 400971503
LH BRACKET 		$28.84 1
024 400971504
RH BRACKET 		$28.84 1
025 N10082911
SCREW M6X16 		$0.68 4
026 N10003703
SCREW M6X17.00 (M6X17) 		$0.70 (90.4% off) 4
027 1J0973803
FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM 		$7.13 1
028 3D0973703
CONNECTOR FOR LICENSE PLATE'S LIGHT'S WIRING 		$9.67 1
