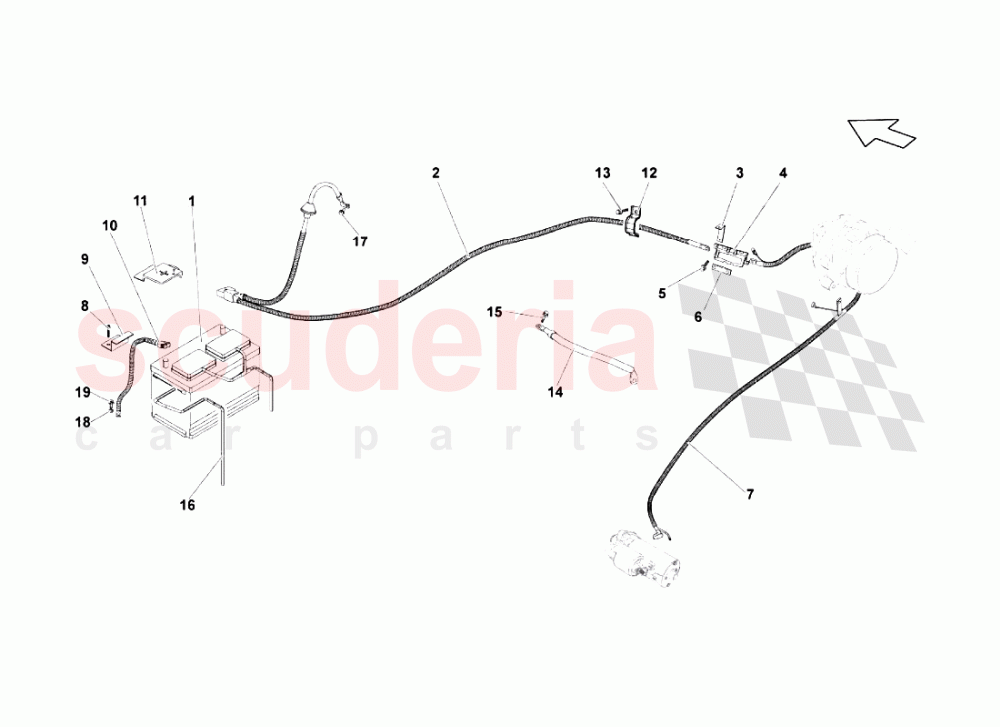

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L0915105	BATTERY	7L0915105 BATTERY	$749.38	1
002	408971225A	CABLE	408971225A CABLE	$148.51	1
003	7L133031	BRACKET	7L133031 BRACKET	$22.05	2
004	400937495	MEGA FUSE HOLDER BOX	400937495 MEGA FUSE HOLDER BOX	$77.56	1
005	N90693702	SCREW M5X20	N90693702 SCREW M5X20	$0.58 MSRP: ~~7.32~~ (92.1% off)	2
006	400915447	BAR	400915447 BAR	$26.89	1
007	400971793B	CABLE (CABLE STARTER MOTOR EXCITATION)	400971793B CABLE (CABLE STARTER MOTOR EXCITATION)	$154.58	1
008	N10347804	HEXAGON SOCKET HEAD BOLT (COMBI)	N10347804 HEXAGON SOCKET HEAD BOLT (COMBI)	$1.68	2
009	400915447B	HOOK	400915447B HOOK	$340.06	1
010	400971235B	CABLE	400971235B CABLE	$33.22	1
012	400971336	BRACKET	400971336 BRACKET	$10.96	3
013	N10082911	SCREW M6X16	N10082911 SCREW M6X16	$0.68	3
014	4D0971237	CABLE (CABLE (-) FROM ENGINE TO CHASSIS)	4D0971237 CABLE (CABLE (-) FROM ENGINE TO CHASSIS)	$52.15	2
015	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	$1.74	2
016	7H0915531A	VENT PIPE	7H0915531A VENT PIPE	$12.99	1
017	N90847903	Screw M6X15	N90847903 Screw M6X15	$1.16	1
018	N01152527	WASHER	N01152527 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	1
019	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	$1.74	1
