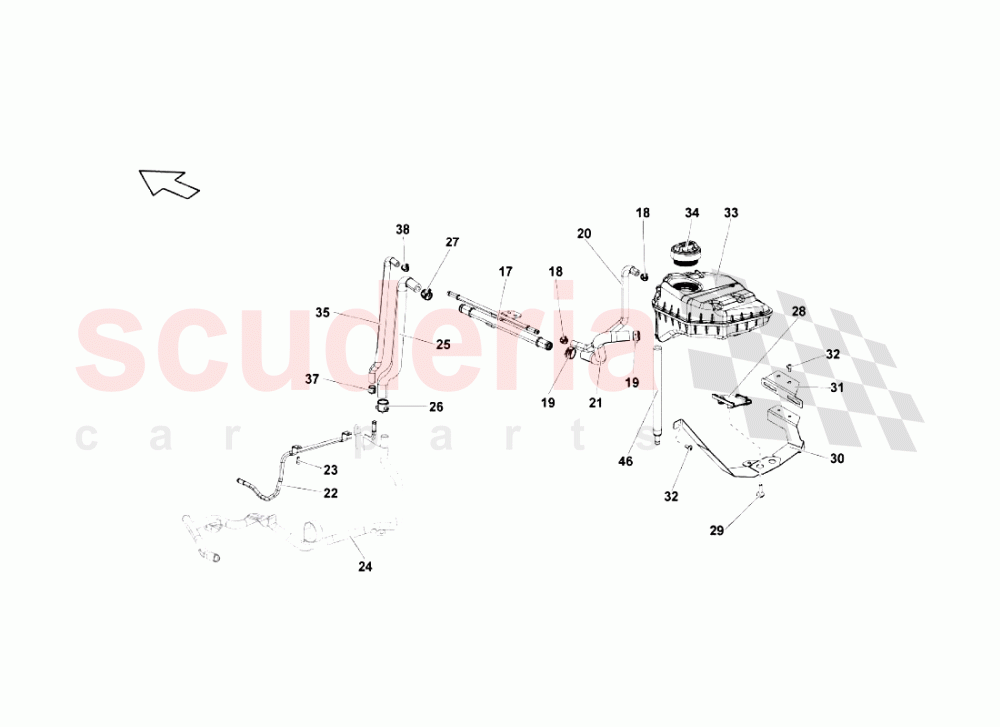

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
017	407121045	PIPE	407121045 PIPE	-	1	Enquire
018	4B0422379A	SPRING BAND CLAMP	4B0422379A SPRING BAND CLAMP	-	2	Enquire
019	N90687002	CLAMP	N90687002 CLAMP	-	2	Enquire
020	407121471	PIPE	407121471 PIPE	-	1	Enquire
021	407121472	PIPE	407121472 PIPE	-	1	Enquire
022	420121486	PIPE	420121486 PIPE	-	1	Enquire
023	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
025	407121109	PIPE	407121109 PIPE	-	1	Enquire
026	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	-	1	Enquire
027	N90686902	SPRING BAND CLAMP	N90686902 SPRING BAND CLAMP	-	1	Enquire
028	7L0121093A	BRACKET	7L0121093A BRACKET	-	1	Enquire
029	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
030	407121409	BRACKET	407121409 BRACKET	-	1	Enquire
031	407121262	BRACKET	407121262 BRACKET	-	1	Enquire
032	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	3	Enquire
033	420121403	WATER TANK	420121403 WATER TANK	-	1	Enquire
034	420121321	END CAP	420121321 END CAP	-	1	Enquire
035	407121107	PIPE	407121107 PIPE	-	1	Enquire
036	N90770201	SPRING BAND CLAMP	N90770201 SPRING BAND CLAMP	-	2	Enquire
037	N90770201	SPRING BAND CLAMP	N90770201 SPRING BAND CLAMP	-	1	Enquire
038	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	-	1	Enquire
046	7L121428A	PIPE	7L121428A PIPE	-	1	Enquire
