Water Cooling System 2

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Water Cooling System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

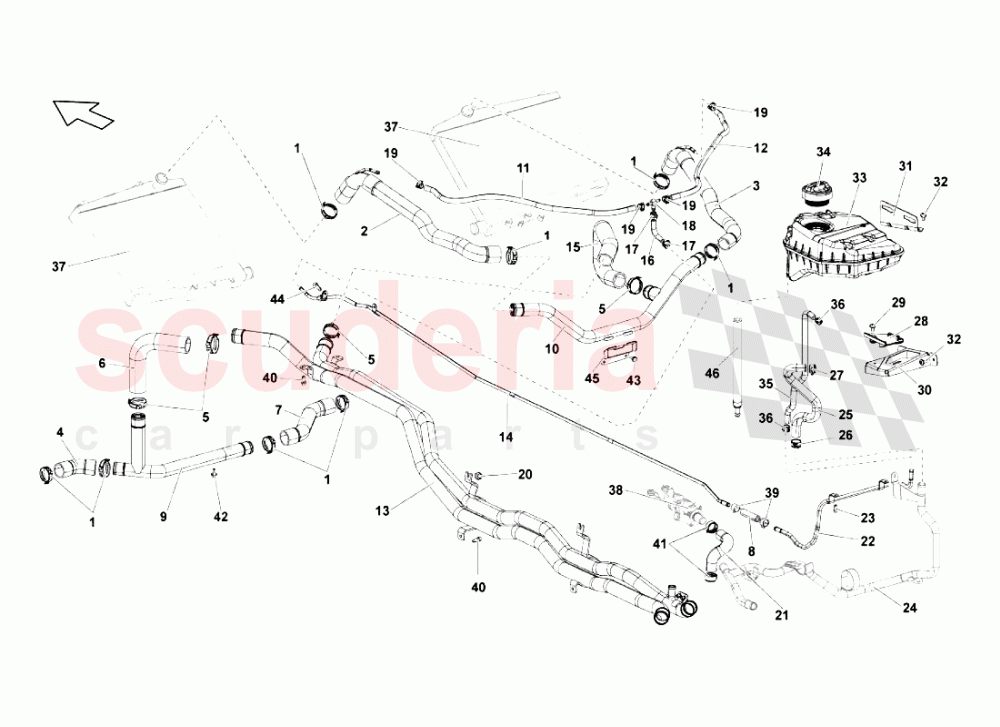

Water Cooling System 2 of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N90687201
SPRING BAND CLAMP 		- 8 Enquire
002 400121057A
FEED PIPE 		- 1 Enquire
003 400121063A
FEED PIPE 		- 1 Enquire
004 400121059A
RETURN HOSE 		- 1 Enquire
005 N90926501
SPRING BAND CLAMP 		- 4 Enquire
006 400121053A
PIPE 		- 1 Enquire
007 400121073A
RETURN HOSE 		- 1 Enquire
008 7L121109D
SLEEVE 		- 1 Enquire
009 400121508A
RETURN HOSE 		- 1 Enquire
010 400121510B
FEED PIPE 		- 1 Enquire
011 7L121102B
VENT PIPE 		- 1 Enquire
012 7L121101A
VENT PIPE 		- 1 Enquire
013 400121050A
PIPE 		- 1 Enquire
014 400121465
VENT PIPE 		- 1 Enquire
015 400121058A
FEED PIPE 		- 1 Enquire
016 7L121337
VENT PIPE 		- 1 Enquire
017 N90986501
SPRING BAND CLAMP 		- 2 Enquire
018 470133794A
T-PIECE 		- 1 Enquire
019 N90986501
SPRING BAND CLAMP 		- 4 Enquire
020 N1508315
NUT M8 		- 2 Enquire
021 400121123
PIPE 		- 1 Enquire
022 420121486
PIPE 		- 1 Enquire
023 N91096701
OVAL HEXAGON SOCKET HEAD BOLT 		- 2 Enquire
039 N90770201
SPRING BAND CLAMP 		- 2 Enquire
040 N10648001
SCREW M8X25 		- 4 Enquire
041 N90687001
SPRING BAND CLAMP 		- 2 Enquire
042 N10653201
HEX COLLARED BOLT 		- 2 Enquire
043 N91096701
OVAL HEXAGON SOCKET HEAD BOLT 		- 4 Enquire
045 400121239
BRACKET 		- 1 Enquire
