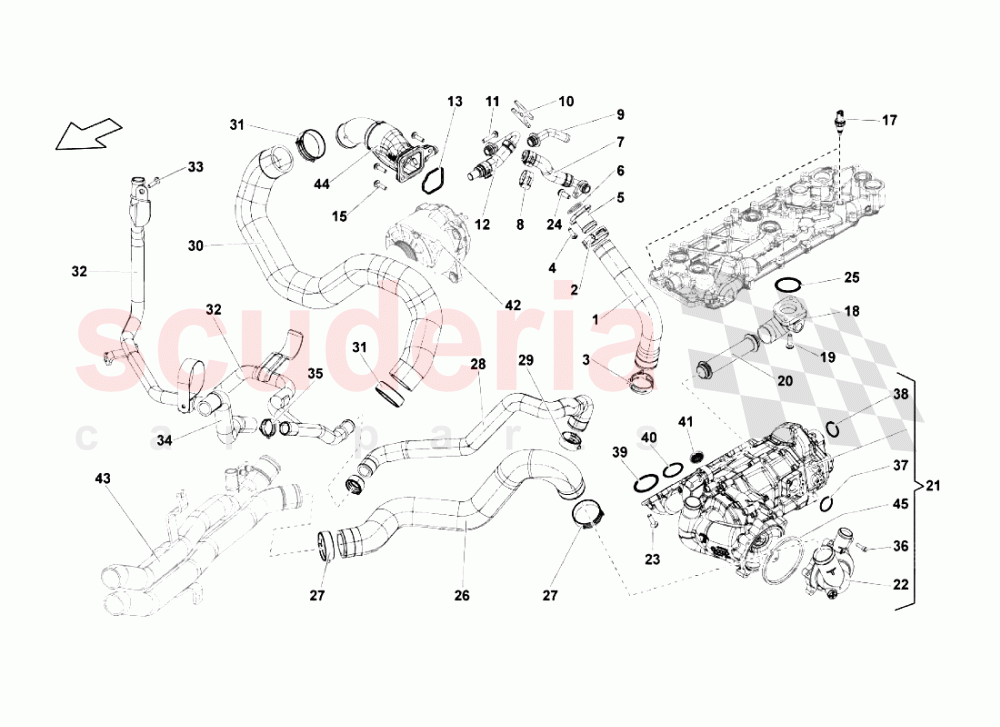

Lamborghini Gallardo LP560 Spyder - Water Cooling System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L121057T	COOLANT HOSE	7L121057T COOLANT HOSE	-	1	Enquire
002	N90687101	SPRING BAND CLAMP	N90687101 SPRING BAND CLAMP	-	1	Enquire
003	6B145917	SPRING BAND CLAMP	6B145917 SPRING BAND CLAMP	-	1	Enquire
004	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	2	Enquire
005	7L121133M	WATER CONNECTION	7L121133M WATER CONNECTION	-	1	Enquire
006	N90544501	O-RING	N90544501 O-RING	-	1	Enquire
007	7L121030C	COOLANT HOSE	7L121030C COOLANT HOSE	-	1	Enquire
008	N90926401	SPRING BAND CLAMP	N90926401 SPRING BAND CLAMP	-	2	Enquire
009	7L121131K	PIPE UNION	7L121131K PIPE UNION	-	1	Enquire
010	7C121077H	RETAINING PLATE	7C121077H RETAINING PLATE	-	1	Enquire
011	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	N10156206 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
012	7L121030B	COOLANT HOSE	7L121030B COOLANT HOSE	-	1	Enquire
013	7L103121R	SEAL	7L103121R SEAL	-	1	Enquire
015	N10700201	HEXAGON SOCKET HEAD BOLT	N10700201 HEXAGON SOCKET HEAD BOLT	-	3	Enquire
017	59919523F	TEMPERATURE SENSOR	59919523F TEMPERATURE SENSOR	-	2	Enquire
018	7L121133J	WATER CONNECTION	7L121133J WATER CONNECTION	-	1	Enquire
019	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	2	Enquire
020	7L121237B	Water Pipe	7L121237B Water Pipe	-	1	Enquire
021	7L115009AC	PUMP	7L115009AC PUMP	-	1	Enquire
022	79121115BM	COOLANT REGULATOR HOUSING WITH THERMOSTAT	79121115BM COOLANT REGULATOR HOUSING WITH THERMOSTAT	-	1	Enquire
023	N10700201	HEXAGON SOCKET HEAD BOLT	N10700201 HEXAGON SOCKET HEAD BOLT	-	13	Enquire
024	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
025	N91008501	O-RING	N91008501 O-RING	-	1	Enquire
026	420121082A	PIPE	420121082A PIPE	-	1	Enquire
027	N90926501	SPRING BAND CLAMP	N90926501 SPRING BAND CLAMP	-	2	Enquire
028	420819370A	PIPE	420819370A PIPE	-	1	Enquire
029	N90687101	SPRING BAND CLAMP	N90687101 SPRING BAND CLAMP	-	2	Enquire
030	420121101D	PIPE	420121101D PIPE	-	1	Enquire
031	N90926501	SPRING BAND CLAMP	N90926501 SPRING BAND CLAMP	-	2	Enquire
032	400121481A	PIPE	400121481A PIPE	-	1	Enquire
033	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
034	400819371A	PIPE	400819371A PIPE	-	1	Enquire
035	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	-	2	Enquire
036	WHT003868	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT003868 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	5	Enquire
037	WHT003732	O-RING	WHT003732 O-RING	-	1	Enquire
038	WHT003731	O-RING 27 X 3.5	WHT003731 O-RING 27 X 3.5	-	1	Enquire
039	7L121119B	O-RING ARRIVING SOON	7L121119B O-RING ARRIVING SOON	-	1	Enquire
040	7L115446A	ENGINE OIL PUMP SEAL	7L115446A ENGINE OIL PUMP SEAL	-	1	Enquire
041	7L103081	OIL STRAINER	7L103081 OIL STRAINER	-	8	Enquire
044	7L121127B	WATER CONNECTION	7L121127B WATER CONNECTION	-	1	Enquire
045	79121119C	SEAL	79121119C SEAL	-	1	Enquire
