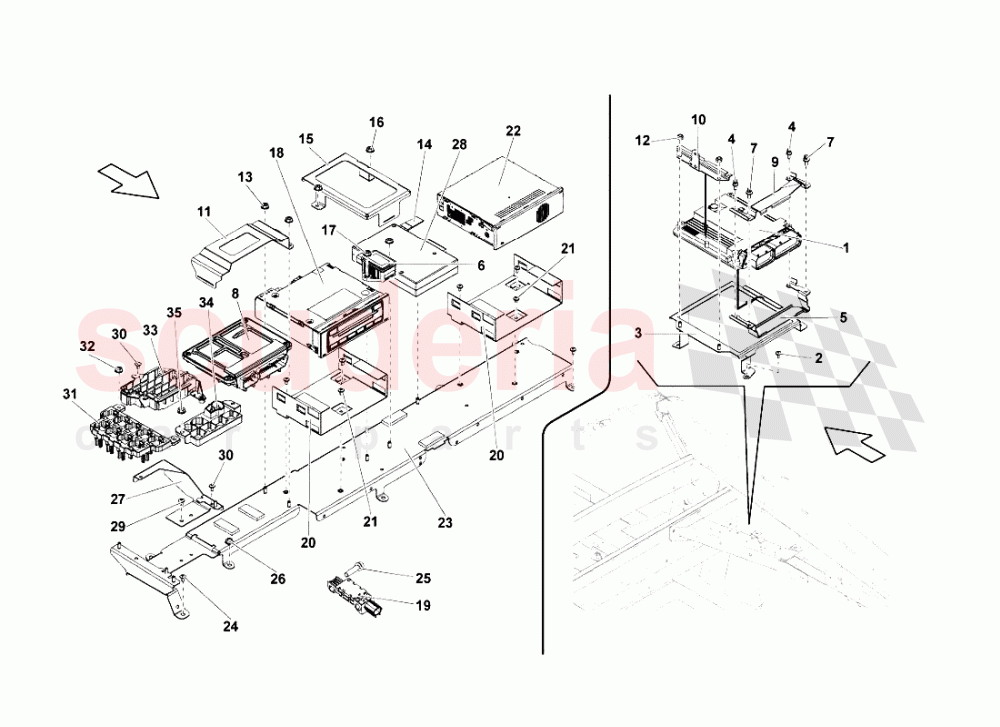

Lamborghini Gallardo LP560 Coupe - Electrical System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400907552E	LIE CONTROL UNIT - 2WD (NOT FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	400907552E LIE CONTROL UNIT - 2WD (NOT FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	$5,672.05	2
001	400907552C	LIE CONTROL UNIT - 4WD (NOT FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	400907552C LIE CONTROL UNIT - 4WD (NOT FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	$3,264.05	2
001	400907552K	LIE CONTROL UNIT - 2WD (VALID FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	400907552K LIE CONTROL UNIT - 2WD (VALID FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	$2,580.64	2
001	400907552J	LIE CONTROL UNIT - 4WD (VALID FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	400907552J LIE CONTROL UNIT - 4WD (VALID FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	$5,665.30	2
002	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	N91096601 HEXAGON SOCKET FLAT HEAD BOLT	$0.51 MSRP: ~~7.33~~ (93% off)	6
003	408907324A	RH BRACKET	408907324A RH BRACKET	$1,181.46	1
003	408907348B	LH BRACKET	408907348B LH BRACKET	$91.54	1
004	N91217601	SHEAR BOLT	N91217601 SHEAR BOLT	$1.47	4
005	8E0907411J	BRACKET	8E0907411J BRACKET	$62.77	2
006	420907637	YAWRATE SENSOR (ESP)	420907637 YAWRATE SENSOR (ESP)	$1,143.83	1
007	N90980304	SCREW M6X12	N90980304 SCREW M6X12	$1.55 MSRP: ~~7.20~~ (78.5% off)	4
008	400927156C	E-GEAR CONTROL UNIT (2WD - SOUTH KOREA)	400927156C E-GEAR CONTROL UNIT (2WD - SOUTH KOREA)	$1,646.50	1
008	400927156B	E-GEAR CONTROL UNIT (2WD)	400927156B E-GEAR CONTROL UNIT (2WD)	$1,646.50	1
008	400927156E	E-GEAR CONTROL UNIT (4WD - SOUTH KOREA)	400927156E E-GEAR CONTROL UNIT (4WD - SOUTH KOREA)	$1,646.50	1
008	400927156D	E-GEAR CONTROL UNIT (4WD)	400927156D E-GEAR CONTROL UNIT (4WD)	$7,513.41	1
009	8E0907500J	BRACKET	8E0907500J BRACKET	$40.52	2
010	408907649A	RH BRACKET	408907649A RH BRACKET	$15.47	1
010	408907354A	LH BRACKET	408907354A LH BRACKET	$15.47	1
011	408907347B	BRACKET (E-GEAR)	408907347B BRACKET (E-GEAR)	$31.53	1
012	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	4
013	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	2
014	8P0035503M	ANTENNA BLUETOOTH	8P0035503M ANTENNA BLUETOOTH	$32.14	1
015	408862399	BRACKET (BLUETOOTH CONTROL UNIT)	408862399 BRACKET (BLUETOOTH CONTROL UNIT)	$43.76	1
016	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	2
017	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	2
019	400980655	AIR BAG SENSOR	400980655 AIR BAG SENSOR	$153.25	2
021	N91020102	SCREW M6X14	N91020102 SCREW M6X14	$0.70 MSRP: ~~7.31~~ (90.4% off)	6
023	408035643B	SUPPORT	408035643B SUPPORT	$155.91	1
024	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	N91096601 HEXAGON SOCKET FLAT HEAD BOLT	$0.51 MSRP: ~~7.33~~ (93% off)	7
025	N10227805	SCREW M6X20.0	N10227805 SCREW M6X20.0	$0.48 MSRP: ~~7.33~~ (93.5% off)	2
026	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	1
027	420971845R	BRACKET	420971845R BRACKET	$19.91	1
028	8P1862335A	BLUETOOTH CONTROL UNIT	8P1862335A BLUETOOTH CONTROL UNIT	$743.29	1
029	N91020102	SCREW M6X14	N91020102 SCREW M6X14	$0.70 MSRP: ~~7.31~~ (90.4% off)	2
030	N10595002	ROUND HD. SCREW	N10595002 ROUND HD. SCREW	$1.47	2
031	4F0937503	SUPPORT (ENGINE RELAY BOX WIRING HARNESS)	4F0937503 SUPPORT (ENGINE RELAY BOX WIRING HARNESS)	$11.17	1
032	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	2
033	4F1971845A	RETAINER FOR FUSE SOCKET	4F1971845A RETAINER FOR FUSE SOCKET	$13.97	1
034	4F1937545	SUPPORT (CENTRAL WIRING HARNESS)	4F1937545 SUPPORT (CENTRAL WIRING HARNESS)	$7.27	1
035	N10597201	HEXAGON COLLAR NUT SELF-LOCKING	N10597201 HEXAGON COLLAR NUT SELF-LOCKING	$2.23 MSRP: ~~7.28~~ (69.4% off)	2
