Lamborghini Gallardo LP560 Coupe - Hi-fi System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

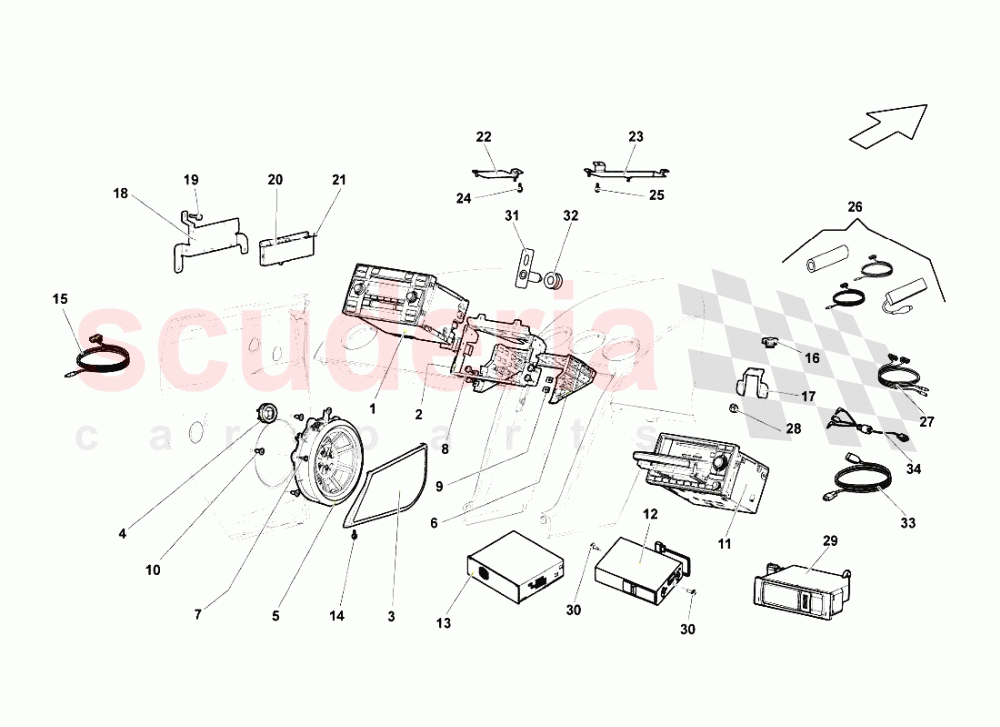

Hi-fi System of Lamborghini Lamborghini Gallardo LP560 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 400035311D
SUPPORT 		$168.69 1
003 400035420A
RH LOUDSPEAKER GRID 		$249.34 1
003 400035419A
LH LOUDSPEAKER GRID 		$261.43 1
004 8E0035399
TWEETER 		$56.59 2
005 8E0035411
LOUDSPEAKER 		$82.12 2
006 8E0858075
RADIO SUPPORT (RNSE) 		$39.52 1
007 N0902941
SCREW ST4.2X19 		$0.80 (89% off) 6
008 N90729003
SCREW M5X16 		$0.62 (91.5% off) 6
009 N90777702
SPEED NUT 		$1.16 (84% off) 4
010 N90821401
EXPANDING NUT 		$1.32 (81.7% off) 6
011 400035192N
RADIO AND NAVIGATOR SYSTEM 		$5,268.80 1
011 400035053A
RADIO AND NAVIGATOR SYSTEM (KENWOOD CHINA) 		$5,887.08 1
014 N90659901
OVAL HEXAGON SOCKET HEAD BOLT 		$3.21 (54.5% off) 2
016 8Z0919889
AERIAL GPS 		$338.70 1
017 400919909A
GPS ANTENNA BRACKET 		$24.34 1
023 400035536
BRACKET (ANTENNA AMPLIFIER AM/FM) 		$13.85 1
024 N90693702
SCREW M5X20 		$0.58 (92.1% off) 2
025 N90693702
SCREW M5X20 		$0.58 (92.1% off) 2
028 N01508213
HEXAGON COLLAR NUT 		$0.21 2
