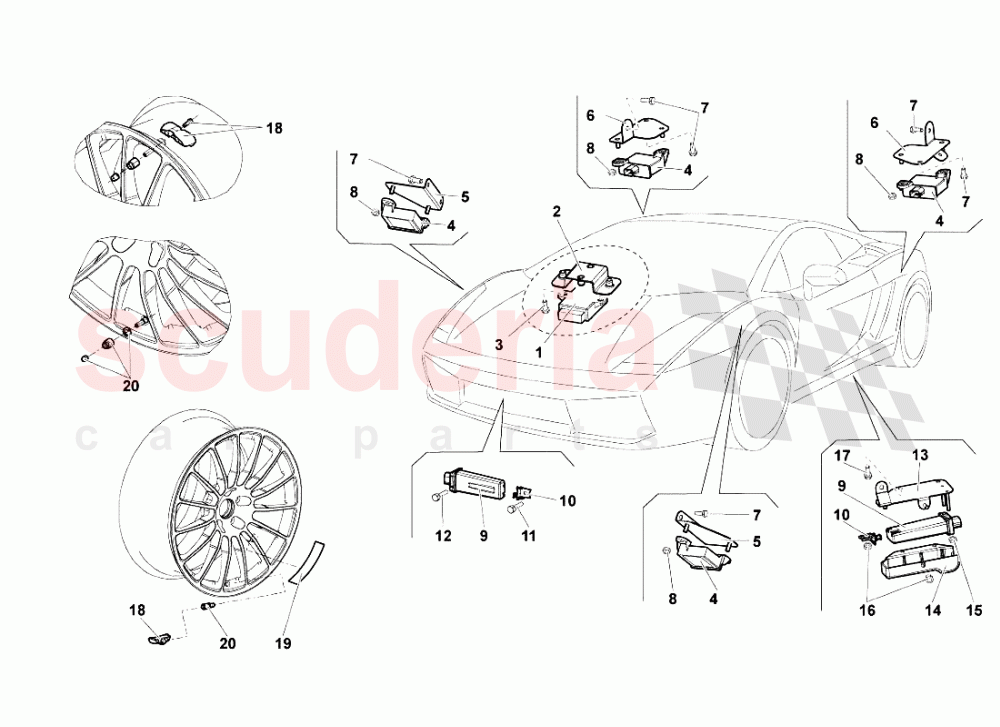

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400907273B	TPMS CONTROL UNIT	400907273B TPMS CONTROL UNIT	-	1	Enquire
004	4F0907283	CONTROL UNIT (TRANSMITTING UNIT)	4F0907283 CONTROL UNIT (TRANSMITTING UNIT)	-	4	Enquire
005	400907731	BRACKET	400907731 BRACKET	-	2	Enquire
006	400907732	BRACKET	400907732 BRACKET	-	2	Enquire
007	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	8	Enquire
008	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	8	Enquire
009	8E0907277A	AERIAL	8E0907277A AERIAL	-	2	Enquire
009	8E0907277	AERIAL	8E0907277 AERIAL	-	2	Enquire
010	3W0907323	CLIP	3W0907323 CLIP	-	2	Enquire
011	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
012	N10703301	HEX SOCKET OVAL HEAD COLLARED	N10703301 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
013	400907525A	BRACKET	400907525A BRACKET	-	1	Enquire
015	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT	-	2	Enquire
016	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
017	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	3	Enquire
018	4F0907275H	TPMS SENSOR (315 MHZ CHINA)	4F0907275H TPMS SENSOR (315 MHZ CHINA)	-	4	Enquire
018	4F0907275D	TPMS SENSOR (433 MHZ)	4F0907275D TPMS SENSOR (433 MHZ)	-	4	Enquire
019	400010502C	TPMS STICKER	400010502C TPMS STICKER	-	4	Enquire
020	400601361A	Metal Valve (9mm)	400601361A Metal Valve (9mm)	-	4	Enquire
020	400601361C	VALVE 21 MM (FOR CALLISTO)	400601361C VALVE 21 MM (FOR CALLISTO)	-	4	Enquire
