Name: Oil Cooler 1
Rating: 5.0 (1 reviews)

View All

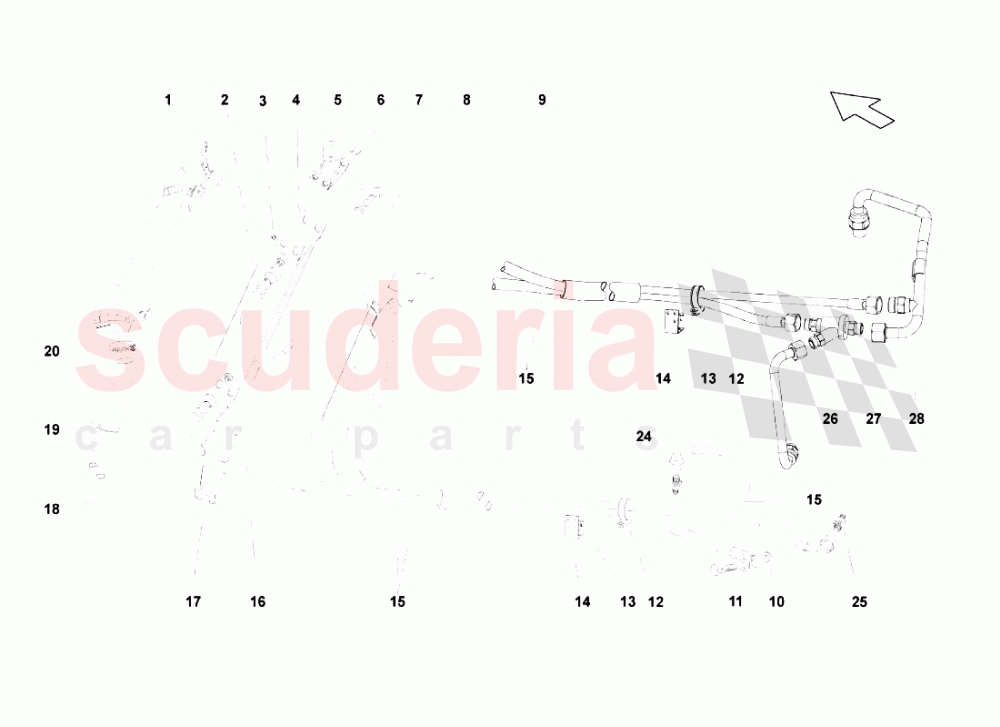

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N0138481	WASHER	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	N0210725	SCREW (UNTIL THE VIN 5LA02429)	$6.86	To Order

Photo	Part No	Description	Price (each)	Stock
	86317171A	CLAMP	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	N90216903	SCREW	$2.90	To Order

Photo	Part No	Description	Price (each)	Stock
	86317829	BRACKET	$39.59	To Order

Photo	Part No	Description	Price (each)	Stock
	400317806	PIPES SET (UNTIL THE VIN 5LA02429)	$2,405.92	To Order

Photo	Part No	Description	Price (each)	Stock
	400121539C	GASKET	$17.28	To Order

Photo	Part No	Description	Price (each)	Stock
	400317829B	BRACKET	$373.66	To Order

Photo	Part No	Description	Price (each)	Stock
	400903667	PIPE SET	$281.59	To Order

Photo	Part No	Description	Price (each)	Stock
	400131437	RING	$19.69	To Order

Photo	Part No	Description	Price (each)	Stock
	N91115301	CLAMP	$8.56	To Order

Photo	Part No	Description	Price (each)	Stock
	86122265	CONNECTOR (UNTIL THE VIN 5LA02429)	$16.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	400317026	RH CONVEYOR	400317026 RH CONVEYOR	$670.19	1
02	400121539E	GASKET	400121539E GASKET	$22.58	4
04	86317019A	OIL COOLER (UNTIL THE VIN 5LA02429)	86317019A OIL COOLER (UNTIL THE VIN 5LA02429)	$2,130.39	1
05	400317830A	BRACKET	400317830A BRACKET	$53.77	1
06	N90533002	SCREW	N90533002 SCREW	$1.74 MSRP: ~~7.11~~ (75.5% off)	4
07	N90533002	SCREW	N90533002 SCREW	$1.74 MSRP: ~~7.11~~ (75.5% off)	2
08	N10082911	SCREW M6X16	N10082911 SCREW M6X16	$0.68	2
09	400117336	COOLER EXIT CONE	400117336 COOLER EXIT CONE	$723.11	1
10	N0138481	WASHER	N0138481 WASHER	$0.70 MSRP: ~~7.28~~ (90.4% off)	2
11	N0210725	SCREW (UNTIL THE VIN 5LA02429)	N0210725 SCREW (UNTIL THE VIN 5LA02429)	$6.86	1
12	86317171A	CLAMP	86317171A CLAMP	$2.78	1
13	N90216903	SCREW	N90216903 SCREW	$2.90	2
14	86317829	BRACKET	86317829 BRACKET	$39.59	2
15	400317806	PIPES SET (UNTIL THE VIN 5LA02429)	400317806 PIPES SET (UNTIL THE VIN 5LA02429)	$2,405.92	1
16	400121539C	GASKET	400121539C GASKET	$17.28	2
17	400317829B	BRACKET	400317829B BRACKET	$373.66	1
18	400903667	PIPE SET	400903667 PIPE SET	$281.59	1
19	400131437	RING	400131437 RING	$19.69	1
20	N91115301	CLAMP	N91115301 CLAMP	$8.56	1
25	86122265	CONNECTOR (UNTIL THE VIN 5LA02429)	86122265 CONNECTOR (UNTIL THE VIN 5LA02429)	$16.15	1
