Air Filter Box

Lamborghini Gallardo (2006-2007)

Find Your Part

Lamborghini Gallardo (2006-2007) - Air Filter Box

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7L133843D Air Filter Enquire To Order
Photo Part No Description Price (each) Stock
7L133919 COVER Enquire To Order
Photo Part No Description Price (each) Stock
7L115657A PIPE Enquire To Order
Photo Part No Description Price (each) Stock
N90442501 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
7L115114 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
7L129793 FLAME TRAP Enquire To Order
Photo Part No Description Price (each) Stock
N90937701 CABLE TIES Enquire To Order
Photo Part No Description Price (each) Stock
400103587 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
N0245085 HOSE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
7L129627 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
400133001A SCREW M6X12 Enquire To Order
View All

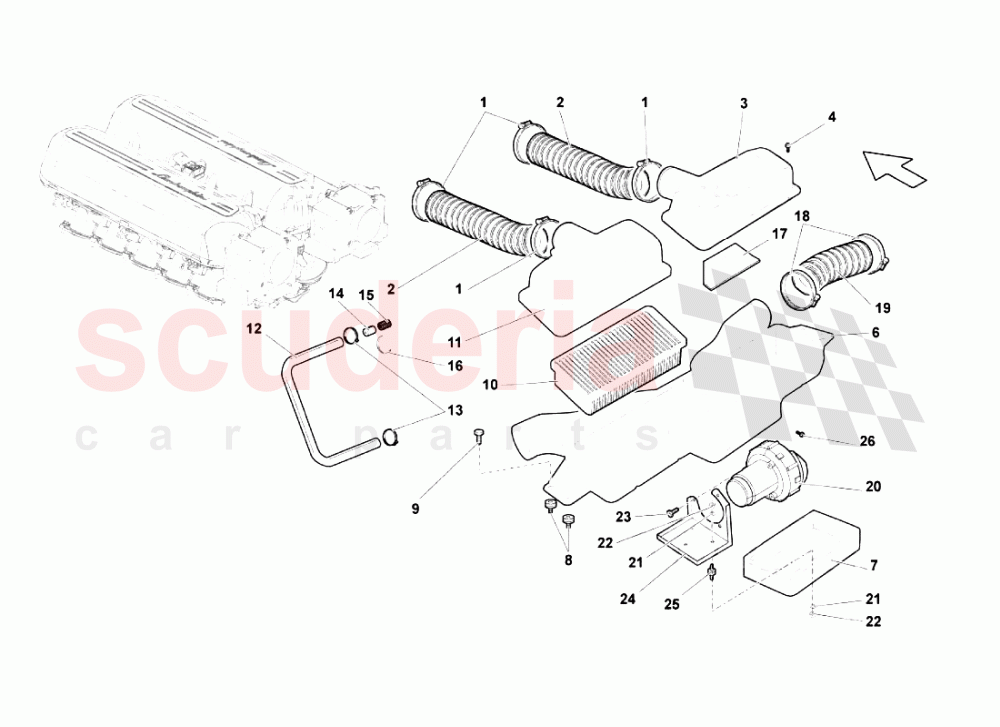

Air Filter Box of Lamborghini Lamborghini Gallardo (2006-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 N0245184
HOSE CLAMP 		- 4 Enquire
02 7L131843A
PIPE 		- 2 Enquire
03 7L133849
COVER 		- 1 Enquire
04 400133001
SCREW M6X26 		- 8 Enquire
06 7L133839
AIR FILTER BOX 		- 1 Enquire
07 7L133845
COVER 		- 1 Enquire
08 7L133741
SUPPORT 		- 5 Enquire
09 N0902322
SCREW 		- 5 Enquire
10 7L133843D
Air Filter 		- 2 Enquire
11 7L133919
COVER 		- 1 Enquire
12 7L115657A
PIPE 		- 1 Enquire
13 N90442501
CLAMP 		- 2 Enquire
14 7L115114
BUSHING 		- 1 Enquire
15 7L129793
FLAME TRAP 		- 1 Enquire
16 N90937701
CABLE TIES 		- 2 Enquire
17 400103587
BRACKET 		- 1 Enquire
18 N0245085
HOSE CLAMP 		- 4 Enquire
19 7L129627
PIPE 		- 2 Enquire
26 400133001A
SCREW M6X12 		- 4 Enquire
