Name: Left Head Timing System
Rating: 5.0 (1 reviews)

Left Head Timing System of Lamborghini Lamborghini Gallardo (2006-2007)

View All

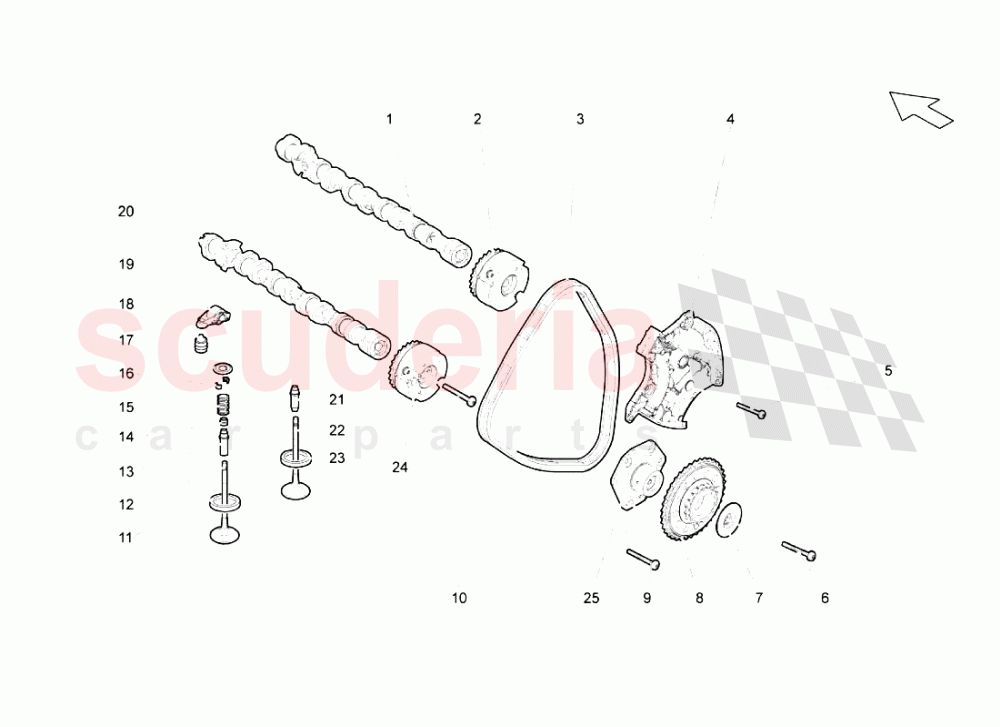

Lamborghini Gallardo (2006-2007) - Left Head Timing System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N91042802	FLAT HEAD MULTI-POINT SOCKET BOLT	$6.31	To Order

Photo	Part No	Description	Price (each)	Stock
	6D103441L	EXHAUST VALVE SEAT	$8.66	To Order

Photo	Part No	Description	Price (each)	Stock
	6D109611H	EXHAUST VALVE	$1,020.17	To Order

Photo	Part No	Description	Price (each)	Stock
	6D103415F	EXHAUST GUIDE	$88.18	To Order

Photo	Part No	Description	Price (each)	Stock
	57109675	VALVE STEM SEAL	$30.13	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109623	SPRING	$47.84	To Order

Photo	Part No	Description	Price (each)	Stock
	36109651	COTTER, SPLIT	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109641A	SPRING DISC	$18.57	To Order

Photo	Part No	Description	Price (each)	Stock
	57109521	HYDRAULIC ELEMENT	$29.39	To Order

Photo	Part No	Description	Price (each)	Stock
	6D109417F	LEVER	$90.87	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109102Q	EXHAUST CAMSHAFT	$469.08	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103415	INTAKE GUIDE	$88.18	To Order

Photo	Part No	Description	Price (each)	Stock
	79109601B	INTAKE VALVE -	$52.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6D103431L	INTAKE VALVE SEAT	$6.72	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109084C	PHASE TRANSFORMER	$357.54	To Order

Photo	Part No	Description	Price (each)	Stock
	79109511G	LEFT SUPPORT	$516.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	7L109101S	INTAKE CAMSHAFT	7L109101S INTAKE CAMSHAFT	$551.09	1
02	7L109083A	PHASE TRANSFORMER	7L109083A PHASE TRANSFORMER	$362.89	1
03	79109229L	Chain	79109229L Chain	$110.76	1
04	6E109217E	CHAIN TIGHTENER	6E109217E CHAIN TIGHTENER	$2,956.98	1
05	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	$1.96 MSRP: ~~7.26~~ (73% off)	6
06	N90941703	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 45	N90941703 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 45	$4.10 MSRP: ~~7.03~~ (41.7% off)	1
07	79109435G	WASHER	79109435G WASHER	$22.05	1
08	79109569K	GEAR	79109569K GEAR	$332.67	1
09	N10505402	SCREW M6X20	N10505402 SCREW M6X20	$0.42	3
10	N91042802	FLAT HEAD MULTI-POINT SOCKET BOLT	N91042802 FLAT HEAD MULTI-POINT SOCKET BOLT	$6.31	2
11	6D103441L	EXHAUST VALVE SEAT	6D103441L EXHAUST VALVE SEAT	$8.66	10
12	6D109611H	EXHAUST VALVE	6D109611H EXHAUST VALVE	$1,020.17	10
13	6D103415F	EXHAUST GUIDE	6D103415F EXHAUST GUIDE	$88.18	10
14	57109675	VALVE STEM SEAL	57109675 VALVE STEM SEAL	$30.13	20
15	6E109623	SPRING	6E109623 SPRING	$47.84	10
16	36109651	COTTER, SPLIT	36109651 COTTER, SPLIT	$2.78	40
17	6E109641A	SPRING DISC	6E109641A SPRING DISC	$18.57	10
18	57109521	HYDRAULIC ELEMENT	57109521 HYDRAULIC ELEMENT	$29.39	10
19	6D109417F	LEVER	6D109417F LEVER	$90.87	10
20	7L109102Q	EXHAUST CAMSHAFT	7L109102Q EXHAUST CAMSHAFT	$469.08	1
21	7L103415	INTAKE GUIDE	7L103415 INTAKE GUIDE	$88.18	10
22	79109601B	INTAKE VALVE -	79109601B INTAKE VALVE -	$52.74	10
23	6D103431L	INTAKE VALVE SEAT	6D103431L INTAKE VALVE SEAT	$6.72	10
24	7L109084C	PHASE TRANSFORMER	7L109084C PHASE TRANSFORMER	$357.54	1
25	79109511G	LEFT SUPPORT	79109511G LEFT SUPPORT	$516.15	1
