Air Conditioning System 2 of Lamborghini Lamborghini Gallardo (2008)

View All

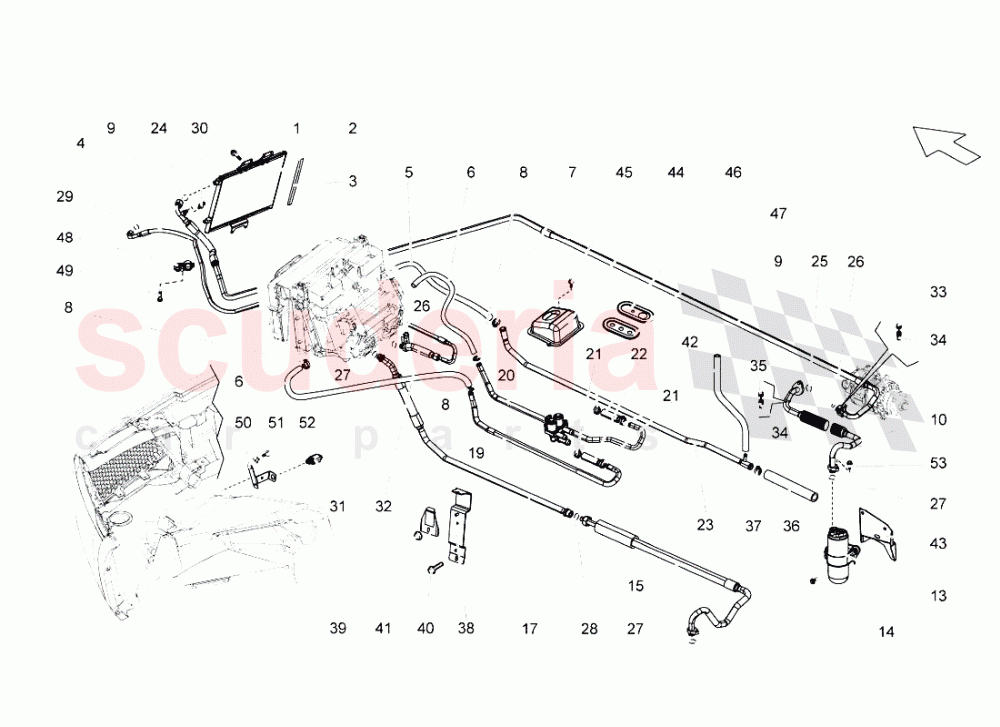

Lamborghini Gallardo (2008) - Air Conditioning System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.68	6
002	400260401B	A/C CONDENSER IN STOCK	400260401B A/C CONDENSER IN STOCK	$673.31	1
003	400820261	GASKET	400820261 GASKET	$151.89	2
004	400260709	PIPE	400260709 PIPE	$1,051.07	1
005	400819371	SLEEVE	400819371 SLEEVE	$143.17	1
006	400819370	SLEEVE	400819370 SLEEVE	$16.74	2
007	N10166201	CLAMP	N10166201 CLAMP	$1.19	2
008	N10255601	CLAMP IN STOCK	N10255601 CLAMP IN STOCK	$1.96 MSRP: ~~7.10~~ (72.4% off)	4
009	400260701B	PIPE	400260701B PIPE	$799.73	1
010	400260741A	PIPE	400260741A PIPE	$759.41	1
013	400820194	DEHYDRATOR FILTER (INCLUDES REF. 14 ) IN STOCK	400820194 DEHYDRATOR FILTER (INCLUDES REF. 14 ) IN STOCK	$204.10	1
014	N0903411	SCREW (M6X62.00)	N0903411 SCREW (M6X62.00)	$3.16	3
015	400260740B	PIPE	400260740B PIPE	$222.44	1
017	400260740	PIPE	400260740 PIPE	$350.83	1
019	400819270	LH PIPE	400819270 LH PIPE	$59.68	1
020	400819269	RH PIPE	400819269 RH PIPE	$57.93	1
021	N0245107	CLAMP	N0245107 CLAMP	$4.98	4
022	400819372	SLEEVE	400819372 SLEEVE	$14.06	2
023	400820665	PIPE	400820665 PIPE	$94.63	1
024	8A0260749AJ	O-RING	8A0260749AJ O-RING	$5.39	1
025	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.66 MSRP: ~~7.09~~ (20.2% off)	1
026	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING IN STOCK	$6.67 MSRP: ~~7.06~~ (5.5% off)	2
027	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.66 MSRP: ~~7.09~~ (20.2% off)	3
028	8A0260749AH	O-RING IN STOCK	8A0260749AH O-RING IN STOCK	$0.42 MSRP: ~~7.33~~ (94.3% off)	1
029	8A0260749AK	O-RING IN STOCK	8A0260749AK O-RING IN STOCK	$2.02	1
030	3R0959126	PRESSURE SENSOR IN STOCK	3R0959126 PRESSURE SENSOR IN STOCK	$127.46	1
031	8Z0820535	EXTERNAL TEMPERATURE SENSOR	8Z0820535 EXTERNAL TEMPERATURE SENSOR	$39.73	1
033	400820853A	PLUG	400820853A PLUG	$9.61	1
034	400820855	VALVE	400820855 VALVE	$23.99	2
035	400820853	PLUG	400820853 PLUG	$9.61	1
036	400819268A	PIPE	400819268A PIPE	$41.13	1
037	N0245203	CLAMP IN STOCK	N0245203 CLAMP IN STOCK	$6.77	2
038	400121079A	BRACKET	400121079A BRACKET	$22.66	2
039	N90367502	NUT	N90367502 NUT	$0.76	4
040	N90533002	SCREW	N90533002 SCREW	$1.74 MSRP: ~~7.11~~ (75.5% off)	4
041	400121068	BRACKET	400121068 BRACKET	$21.50	2
042	408819377A	PIPE	408819377A PIPE	$64.26	1
043	400260759F	BRACKET	400260759F BRACKET	$452.97	1
044	400820955A	COVER	400820955A COVER	$77.01	1
045	WHT001190	ROUND HD. SCREW IN STOCK	WHT001190 ROUND HD. SCREW IN STOCK	$0.53	2
046	400820099A	GASKET	400820099A GASKET	$35.91	1
047	400819028A	GASKET	400819028A GASKET	$34.75	1
048	8E0260759AP	BRACKET FOR REFRIGERANT HOSE	8E0260759AP BRACKET FOR REFRIGERANT HOSE	$4.90	1
049	N10470703	ROUND HD. SCREW IN STOCK	N10470703 ROUND HD. SCREW IN STOCK	$2.08 MSRP: ~~7.13~~ (70.8% off)	1
050	400820536A	BRACKET	400820536A BRACKET	$12.03	1
051	N0454281	CLIP IN STOCK	N0454281 CLIP IN STOCK	$0.92 MSRP: ~~7.24~~ (87.3% off)	2
052	N10405502	SCREW	N10405502 SCREW	$0.62	2
053	N0903786	SCREW M8X25	N0903786 SCREW M8X25	$2.96 MSRP: ~~7.19~~ (58.8% off)	4
