Water Cooling System 4 of Lamborghini Lamborghini Gallardo (2008)

View All

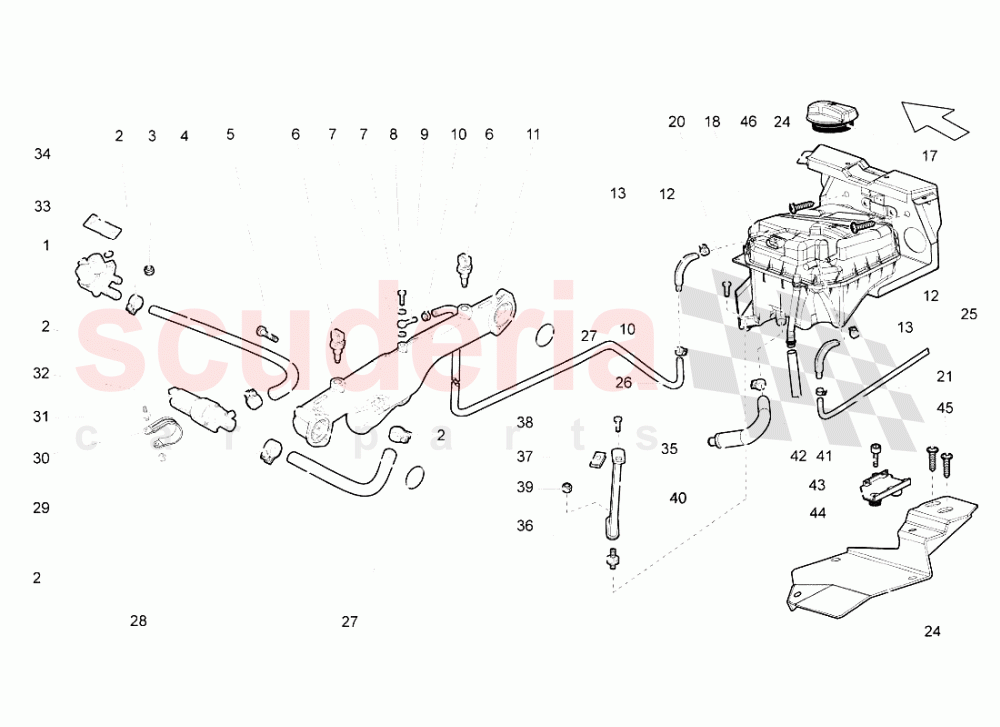

Lamborghini Gallardo (2008) - Water Cooling System 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400820036A	Heater Control Valve IN STOCK	400820036A Heater Control Valve IN STOCK	$620.56	1
002	N0245203	CLAMP IN STOCK	N0245203 CLAMP IN STOCK	$6.77	6
003	N90367502	NUT	N90367502 NUT	$0.76	1
004	400819362	SLEEVE	400819362 SLEEVE	$409.95	1
005	N10117405	SCREW	N10117405 SCREW	$1.89	2
006	7L919501A	Water Temperature Sensor IN STOCK	7L919501A Water Temperature Sensor IN STOCK	$359.56	2
007	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.27 MSRP: ~~7.33~~ (55.4% off)	4
008	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$24.66	2
009	N91104301	BANJO FITTING	N91104301 BANJO FITTING	$36.43	2
010	400251189	CLAMP	400251189 CLAMP	$10.76	1
011	7L121045	CONNECTOR	7L121045 CONNECTOR	$434.16	1
012	400251189E	CLAMP	400251189E CLAMP	$14.38	1
013	7L121434A	CONNECTOR	7L121434A CONNECTOR	$97.57	1
017	1J0121321B	PLUG	1J0121321B PLUG	$20.37	1
018	420121403	RESERVOIR IN STOCK	420121403 RESERVOIR IN STOCK	$467.87	1
020	N10158605	BOLT,HEX.HD.WITH SHOUL.(COMBI) IN STOCK	N10158605 BOLT,HEX.HD.WITH SHOUL.(COMBI) IN STOCK	$0.83 MSRP: ~~7.29~~ (88.6% off)	1
021	7L121103	HOSE IN STOCK	7L121103 HOSE IN STOCK	$65.06	1
024	400121409A	BRACKET	400121409A BRACKET	$1,151.89	1
025	N91130601	CLAMP IN STOCK	N91130601 CLAMP IN STOCK	$36.64 MSRP: ~~59.60~~ (38.5% off)	1
025	400251189	CLAMP	400251189 CLAMP	$10.76	1
026	7L121109	HOSE IN STOCK	7L121109 HOSE IN STOCK	$18.94	1
027	N10129201	O-RING IN STOCK	N10129201 O-RING IN STOCK	$5.14	1
028	400819159A	JUNCTION	400819159A JUNCTION	$119.22	1
029	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	1
030	8834003	CLAMP	8834003 CLAMP	$9.67	1
031	400972081C	FLEXIBLE SUPPORT	400972081C FLEXIBLE SUPPORT	$18.41	1
032	78965561	WATER PUMP	78965561 WATER PUMP	$299.75	1
033	400864179	RUBBER WASHER	400864179 RUBBER WASHER	$2.02	2
034	400820761	BRACKET	400820761 BRACKET	$752.69	1
040	7L121167B	HOSE	7L121167B HOSE	$124.73	1
041	7L121428A	PIPE	7L121428A PIPE	$674.73	1
042	N10255601	CLAMP IN STOCK	N10255601 CLAMP IN STOCK	$1.96 MSRP: ~~7.10~~ (72.4% off)	1
043	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.96 MSRP: ~~7.26~~ (73% off)	2
044	7L0121093A	BRACKET	7L0121093A BRACKET	$15.54	1
045	N90365912	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90365912 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.43 MSRP: ~~7.31~~ (80.4% off)	2
046	WHT002225A	HEXAGON SOCKET HEAD BOLT IN STOCK	WHT002225A HEXAGON SOCKET HEAD BOLT IN STOCK	$1.43 MSRP: ~~7.16~~ (80% off)	2
