Water Cooling System 3 of Lamborghini Lamborghini Gallardo (2008)

View All

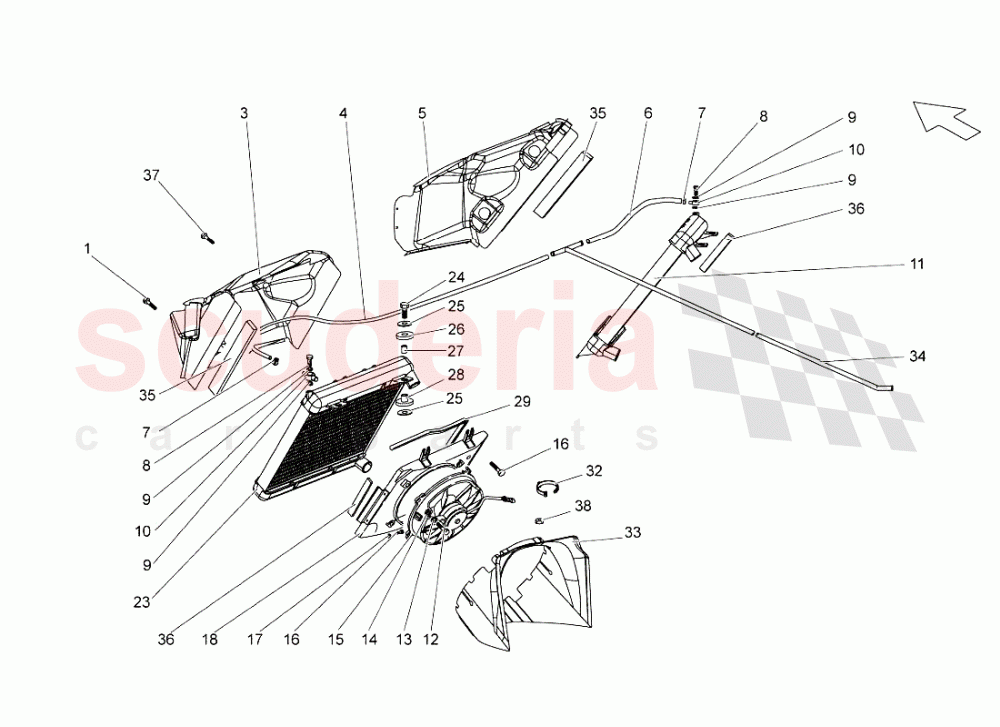

Lamborghini Gallardo (2008) - Water Cooling System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	4	Enquire
003	400807157B	LH CONVEYOR	400807157B LH CONVEYOR	-	1	Enquire
004	7L121101	HOSE	7L121101 HOSE	-	1	Enquire
005	400807158B	RH CONVEYOR	400807158B RH CONVEYOR	-	1	Enquire
006	7L121102	HOSE	7L121102 HOSE	-	1	Enquire
007	N91130601	CLAMP	N91130601 CLAMP	-	3	Enquire
008	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	-	2	Enquire
009	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	4	Enquire
010	N91104301	BANJO FITTING	N91104301 BANJO FITTING	-	2	Enquire
011	400121252A	RH WATER RADIATOR	400121252A RH WATER RADIATOR	-	1	Enquire
012	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	-	8	Enquire
013	WHT000769A	WASHER	WHT000769A WASHER	-	8	Enquire
014	WHT000778	WASHER	WHT000778 WASHER	-	8	Enquire
015	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	-	2	Enquire
016	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	6	Enquire
016	N01021224	SCREW M6X12	N01021224 SCREW M6X12	-	8	Enquire
017	WHT002961	WASHER	WHT002961 WASHER	-	8	Enquire
018	400122193	LH SUPPORT	400122193 LH SUPPORT	-	1	Enquire
018	400122194	RH SUPPORT	400122194 RH SUPPORT	-	1	Enquire
023	400121253A	LH WATER RADIATOR	400121253A LH WATER RADIATOR	-	1	Enquire
024	N10344302	HEXAGON HEAD BOLT (COMBI)	N10344302 HEXAGON HEAD BOLT (COMBI)	-	8	Enquire
025	WHT001942	WASHER	WHT001942 WASHER	-	16	Enquire
026	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	8	Enquire
027	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	-	8	Enquire
028	400121268	RUBBER BUSH	400121268 RUBBER BUSH	-	8	Enquire
029	400121539	GASKET	400121539 GASKET	-	2	Enquire
032	N90937701	CABLE TIES	N90937701 CABLE TIES	-	4	Enquire
033	400807028	RH REAR DIFFUSING AIR	400807028 RH REAR DIFFUSING AIR	-	1	Enquire
033	400807027	LH REAR DIFFUSING AIR	400807027 LH REAR DIFFUSING AIR	-	1	Enquire
034	7L121520	PIPE	7L121520 PIPE	-	1	Enquire
035	400121539E	GASKET	400121539E GASKET	-	4	Enquire
036	400121539D	GASKET	400121539D GASKET	-	6	Enquire
037	N10207002	SCREW M6X15.00	N10207002 SCREW M6X15.00	-	6	Enquire
038	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	8	Enquire
