Left Head Timing System

Lamborghini Gallardo (2008)

Find Your Part

Lamborghini Gallardo (2008) - Left Head Timing System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

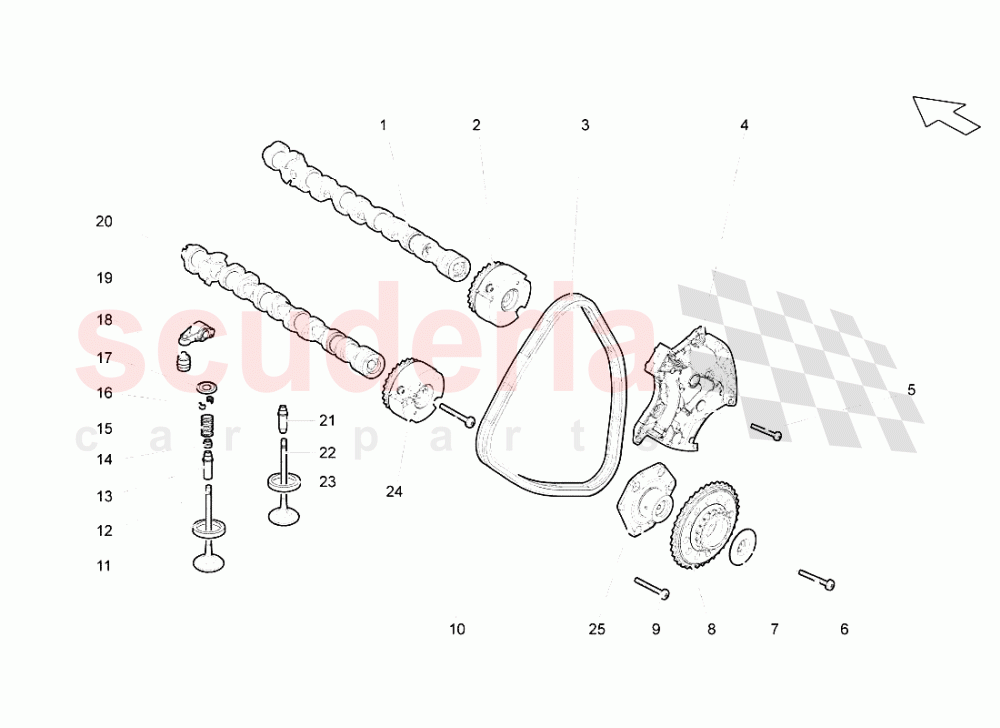

Left Head Timing System of Lamborghini Lamborghini Gallardo (2008) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7L109101S
INTAKE CAMSHAFT 		- 1 Enquire
002 7L109083A
PHASE TRANSFORMER 		- 1 Enquire

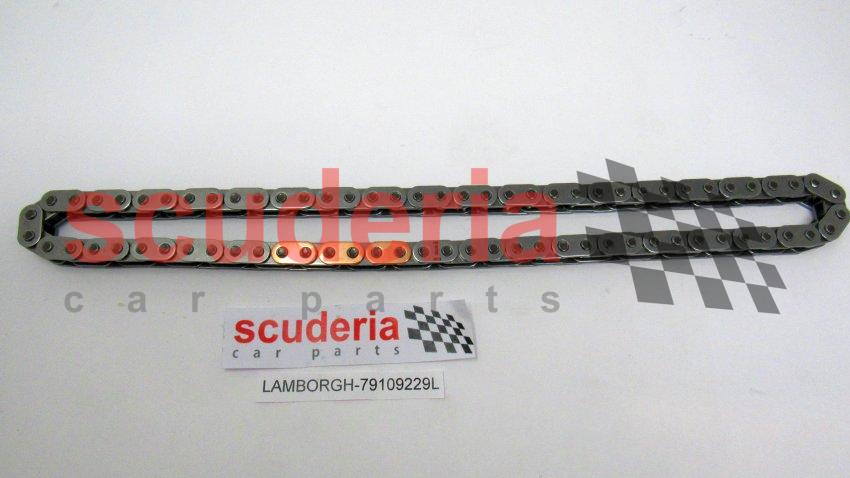

003 79109229L
Chain 		- 1 Enquire

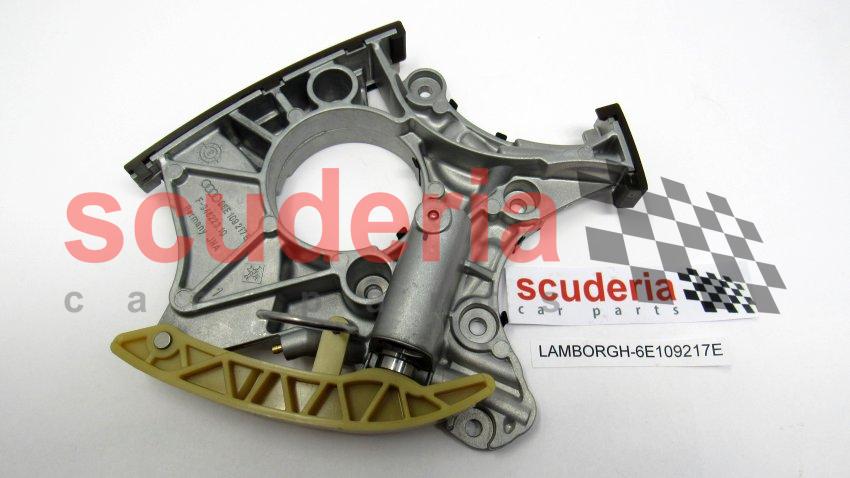

004 6E109217E
CHAIN TIGHTENER 		- 1 Enquire
005 N10124308
OVAL HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
006 N90941703
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 1 Enquire
007 79109435G
WASHER 		- 1 Enquire
008 79109569K
GEAR 		- 1 Enquire
009 N10505404
SCREW M6X20 		- 3 Enquire
010 N91042802
FLAT HEAD MULTI-POINT SOCKET BOLT 		- 2 Enquire
011 6D103441L
EXHAUST VALVE SEAT 		- 10 Enquire
012 6D109611H
EXHAUST VALVE 		- 10 Enquire
013 6D103415F
EXHAUST GUIDE 		- 10 Enquire
014 57109675
VALVE STEM SEAL 		- 20 Enquire
015 6E109623
SPRING 		- 20 Enquire
016 36109651
COTTER, SPLIT 		- 40 Enquire
017 6E109641A
SPRING DISC 		- 20 Enquire
018 57109521
HYDRAULIC ELEMENT 		- 20 Enquire
019 6D109417F
LEVER 		- 20 Enquire
020 7L109102Q
EXHAUST CAMSHAFT 		- 1 Enquire
021 7L103415
INTAKE GUIDE 		- 10 Enquire
022 79109601B
INTAKE VALVE - 		- 10 Enquire
023 6D103431L
INTAKE VALVE SEAT 		- 10 Enquire
024 7L109084C
PHASE TRANSFORMER 		- 1 Enquire
025 79109511G
LEFT SUPPORT 		- 1 Enquire
