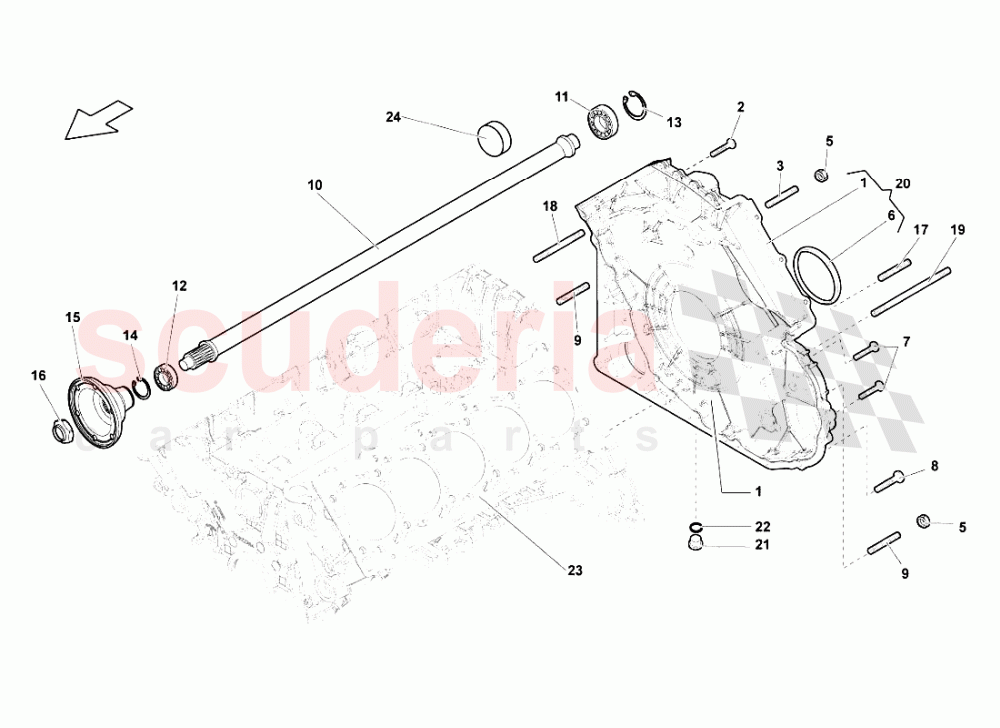

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L103173F	COVER	7L103173F COVER	-	1	Enquire
002	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	-	6	Enquire
003	WHT000198	STUD BOLT M10XM12X84	WHT000198 STUD BOLT M10XM12X84	-	3	Enquire
005	N10261311	HEXAGON NUT IN STOCK	N10261311 HEXAGON NUT IN STOCK	-	9	Enquire
006	7L103051A	O-RING IN STOCK	7L103051A O-RING IN STOCK	-	1	Enquire
007	N10156206	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10156206 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	-	9	Enquire
008	N90462503	SCREW M8X32.0	N90462503 SCREW M8X32.0	-	10	Enquire
009	WHT002302	STUD BOLT M10 2MX59	WHT002302 STUD BOLT M10 2MX59	-	2	Enquire
010	86311101A	INPUT SHAFT PROPELLER SHAFT	86311101A INPUT SHAFT PROPELLER SHAFT	-	1	Enquire
011	86311435A	Ball Bearing (35x52x14) IN STOCK	86311435A Ball Bearing (35x52x14) IN STOCK	-	1	Enquire
012	86311430	BEARING	86311430 BEARING	-	1	Enquire
013	N0123191	RETAINING RING	N0123191 RETAINING RING	-	1	Enquire
014	N0122902	RETAINING RING IN STOCK	N0122902 RETAINING RING IN STOCK	-	1	Enquire
015	86311807B	FLANGE	86311807B FLANGE	-	1	Enquire
016	86311495	HEXAGON NUT IN STOCK	86311495 HEXAGON NUT IN STOCK	-	1	Enquire
017	WHT002302	STUD BOLT M10 2MX59	WHT002302 STUD BOLT M10 2MX59	-	2	Enquire
018	WHT000197	STUD BOLT M10XM12X90	WHT000197 STUD BOLT M10XM12X90	-	1	Enquire
019	WHT002301	STUD BOLT M10 2MX167	WHT002301 STUD BOLT M10 2MX167	-	1	Enquire
