Lamborghini Gallardo LP550 Coupe - Pedal Lever System - Brake Servo 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

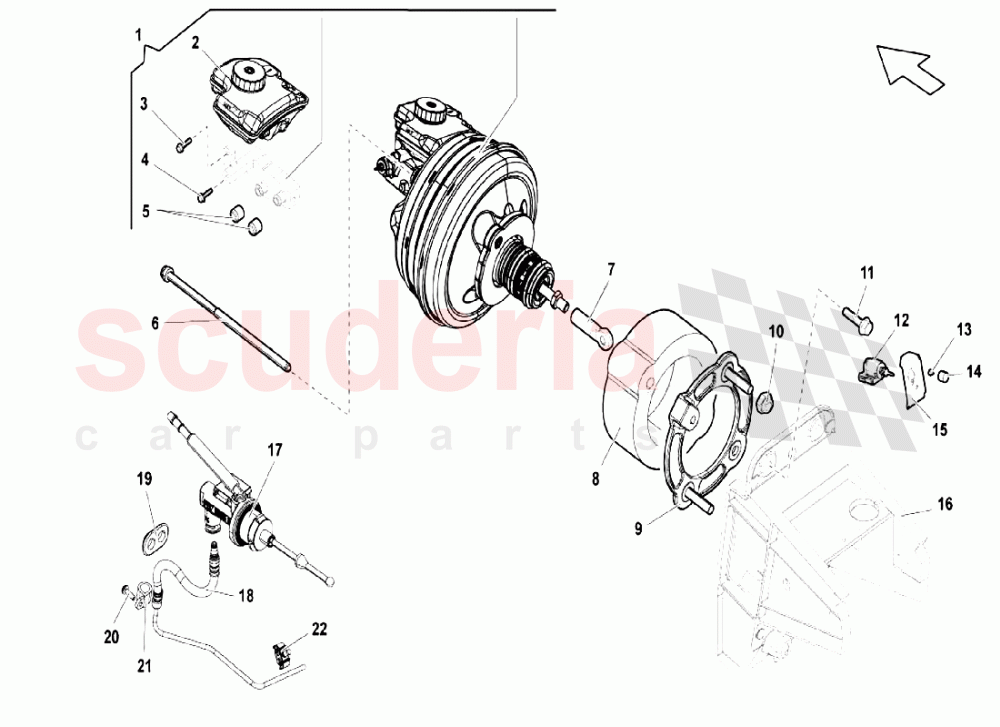

Pedal Lever System - Brake Servo 1 of Lamborghini Lamborghini Gallardo LP550 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400612100G
POWER BRAKE (COMPLETE - CARBOCERAMIC BRAKE) 		- 1 Enquire
002 3D0611301B
RESERVOIR FOR BRAKE FLUID 		- 1 Enquire
003 N90638801
SCREW 		- 1 Enquire
004 N90533002
SCREW 		- 1 Enquire
005 4A0611817A
BUNGS 		- 2 Enquire
006 N91087301
SCREW M8X250X70 		- 2 Enquire
007 402721339
BALL JOINT COUPLING (FOR GDX CARS) 		- 1 Enquire
008 402614209
SPACER 		- 1 Enquire
009 400614130
SPACER 		- 1 Enquire
010 N10609202
HEXAGON COLLAR NUT 		- 2 Enquire
011 N10025004
SCREW 		- 4 Enquire
012 1K2945511
SWITCH (WARNING USE 410721633B) 		- 1 Enquire
013 N10620801
SCREW ST3.5X6.5 		- 2 Enquire
014 400721589A
BUFFER 		- 1 Enquire
015 400721633B
STOP SWITCH SUPPORT 		- 1 Enquire
017 400721401A
CLUTCH PUMP (MANUAL GEARBOX) 		- 1 Enquire
018 402721461C
PIPE (MANUAL GEARBOX) 		- 1 Enquire
019 400721493
FAIRLEAD 		- 1 Enquire
020 N10124304
OVAL HEXAGON SOCKET HEAD BOLT 		- 1 Enquire
021 N0206027
CLAMP 		- 1 Enquire
022 6Q0611797E
BRACKET 		- 1 Enquire
