Drive Shaft 1

Lamborghini Gallardo LP550 Coupe

Find Your Part

Lamborghini Gallardo LP550 Coupe - Drive Shaft 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

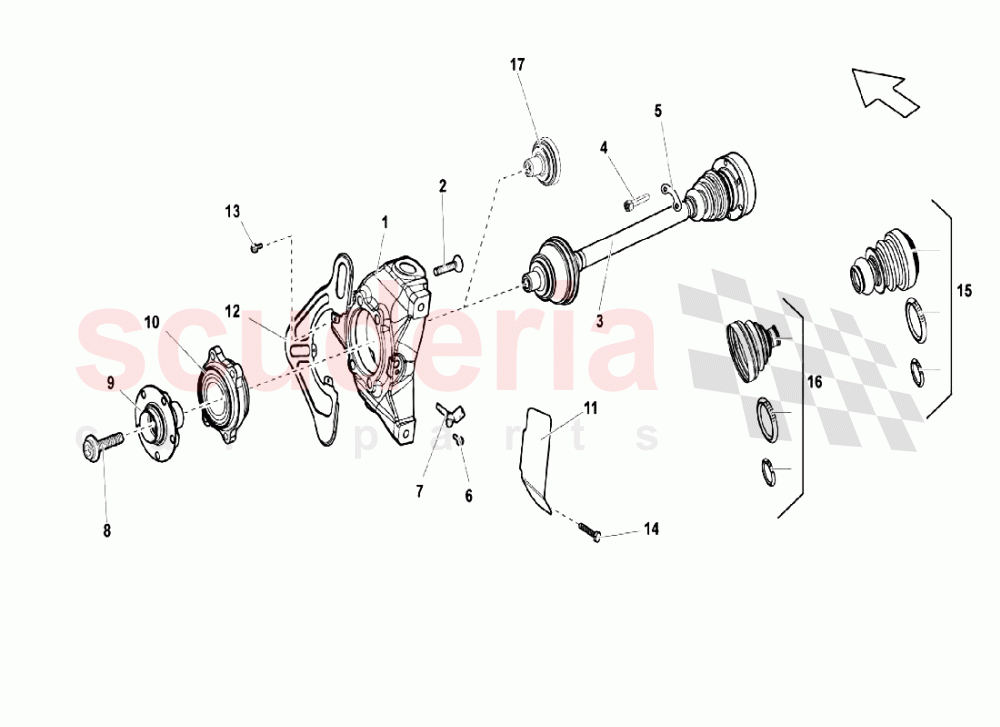

Drive Shaft 1 of Lamborghini Lamborghini Gallardo LP550 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 R1400557
KIT FRONT AXLE (UNTIL THE VIN BLA11070 - INCLUDES: LH RH UPPER - 		- 1 Enquire
001 400407246E
FRONT RIGHT HUB CARRIER 		- 1 Enquire
001 400407245E
FRONT LEFT HUB CARRIER 		- 1 Enquire
002 WHT000237A
TRIPLE SQUARE BOLT M1 2X 1.5 X 45 		- 8 Enquire
003 400407272A
RH FRONT OMOKINETIC DRIVE SHAFT 		- 1 Enquire
003 420407271A
FRONT OMOKINETIC DRIVE SHAFT 		- 2 Enquire
003 400407271A
LH FRONT OMOKINETIC DRIVE SHAFT 		- 1 Enquire
003 420407271A
FRONT OMOKINETIC DRIVE SHAFT 		- 2 Enquire
004 N91108201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 12 Enquire
005 420407357
SPACER 		- 6 Enquire
006 N01474011
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD 		- 2 Enquire
007 4E0927804F
SPEED SENSOR 		- 1 Enquire
007 4E0927803F
SPEED SENSOR 		- 1 Enquire
008 4B0407643A
SHOULDERED BOLT 		- 2 Enquire
009 4D0407613E
WHEEL HUB 		- 2 Enquire
010 4E0407625E
DOUBLE (ANGLED) BALL BEARING WITH FLANGE 		- 2 Enquire
012 420407722A
RH PROTECTION 		- 1 Enquire
012 403407721
LH PROTECTION 		- 1 Enquire
012 403407722
RH PROTECTION 		- 1 Enquire
012 420407721A
LH PROTECTION 		- 1 Enquire
013 N91055501
OVAL HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
017 4E0501117B
STUB AXLE 		- 2 Enquire
