Oil Cooler of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

Lamborghini Gallardo LP550 Coupe - Oil Cooler

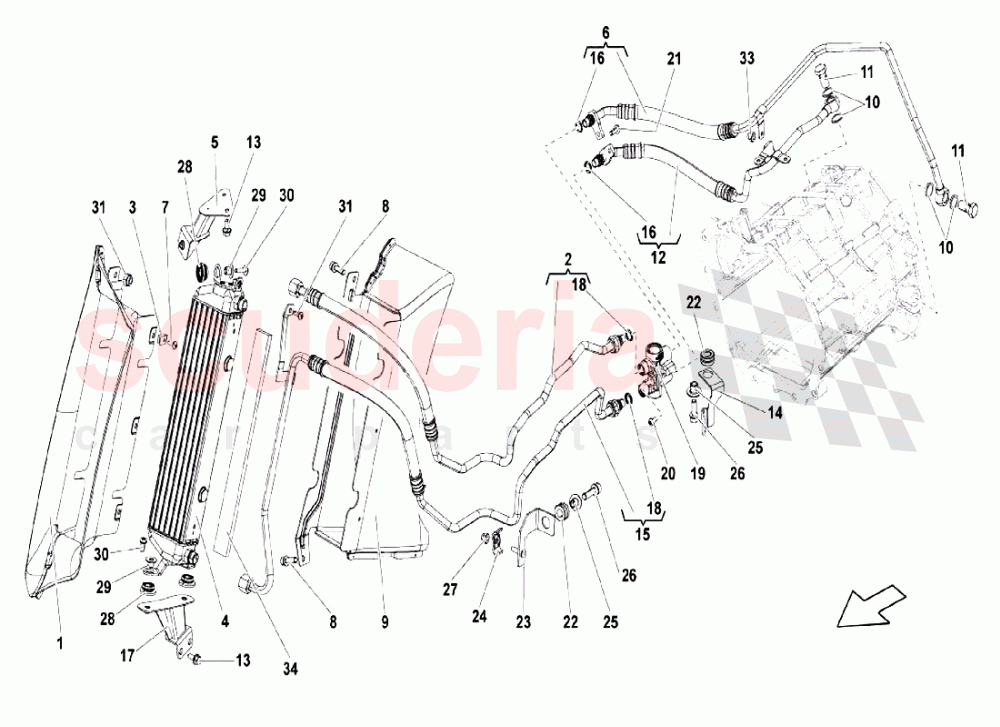

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400317026A	RH CONVEYOR	400317026A RH CONVEYOR	$590.06	1
002	407317826	PIPE	407317826 PIPE	$143.17	1
002	400317826	PIPE	400317826 PIPE	$129.59	1
003	N91195701	SPEED NUT IN STOCK	N91195701 SPEED NUT IN STOCK	$3.24	3
003	N0454281	CLIP IN STOCK	N0454281 CLIP IN STOCK	$0.92 MSRP: ~~7.24~~ (87.3% off)	3
004	420317021D	OIL COOLER	420317021D OIL COOLER	$486.56	1
005	400317830E	BRACKET	400317830E BRACKET	$40.26	1
006	420317818C	PIPE	420317818C PIPE	$307.15	1
007	N10347004	SCREW M6X16 IN STOCK	N10347004 SCREW M6X16 IN STOCK	$0.98 MSRP: ~~7.27~~ (86.5% off)	3
007	N90986803	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.01	1
008	N90575102	SCREW M6X15 IN STOCK	N90575102 SCREW M6X15 IN STOCK	$3.45	3
009	400117336A	COOLER EXIT CONE	400117336A COOLER EXIT CONE	$233.20	1
010	N0138444	WASHER	N0138444 WASHER	$3.16 MSRP: ~~7.28~~ (56.6% off)	4
011	N0210727	SCREW	N0210727 SCREW	$8.56	2
012	420317817A	PIPE	420317817A PIPE	$307.15	1
013	N90533005	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90533005 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.96 MSRP: ~~7.27~~ (73% off)	4
014	420317829A	BRACKET	420317829A BRACKET	$8.28	1
015	400317825	PIPE	400317825 PIPE	$178.13	1
015	407317825	PIPE	407317825 PIPE	$192.88	1
016	N90666003	O-RING IN STOCK	N90666003 O-RING IN STOCK	$4.64	2
017	400317829E	BRACKET	400317829E BRACKET	$266.81	1
018	3W0301323	O-RING 11,1X1,75	3W0301323 O-RING 11,1X1,75	$5.66	2
019	7L0317027A	TEMPERATURE REGULATOR	7L0317027A TEMPERATURE REGULATOR	$135.08	1
020	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	$1.34	1
021	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.29 MSRP: ~~7.26~~ (68.5% off)	1
022	4D0317867A	RUBBER BUSH IN STOCK	4D0317867A RUBBER BUSH IN STOCK	$8.68	2
023	420317827	BRACKET	420317827 BRACKET	$8.28	1
024	4A0317171D	CLAMP	4A0317171D CLAMP	$4.23	1
025	4E0903127	MOUNTING	4E0903127 MOUNTING	$14.99	2
026	N10720901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N10720901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$1.96 MSRP: ~~7.14~~ (72.5% off)	2
027	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	1
028	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$6.11	3
029	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$8.56	3
030	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.55	3
031	N91054101	OVAL HEXAGON SOCKET HEAD BOLT	N91054101 OVAL HEXAGON SOCKET HEAD BOLT	$1.03 MSRP: ~~7.27~~ (85.8% off)	1
033	N10205803	NUT M6	N10205803 NUT M6	$0.92 MSRP: ~~7.24~~ (87.3% off)	1
034	400317070	SELF ADHESIVE GASKET	400317070 SELF ADHESIVE GASKET	$6.72	2
