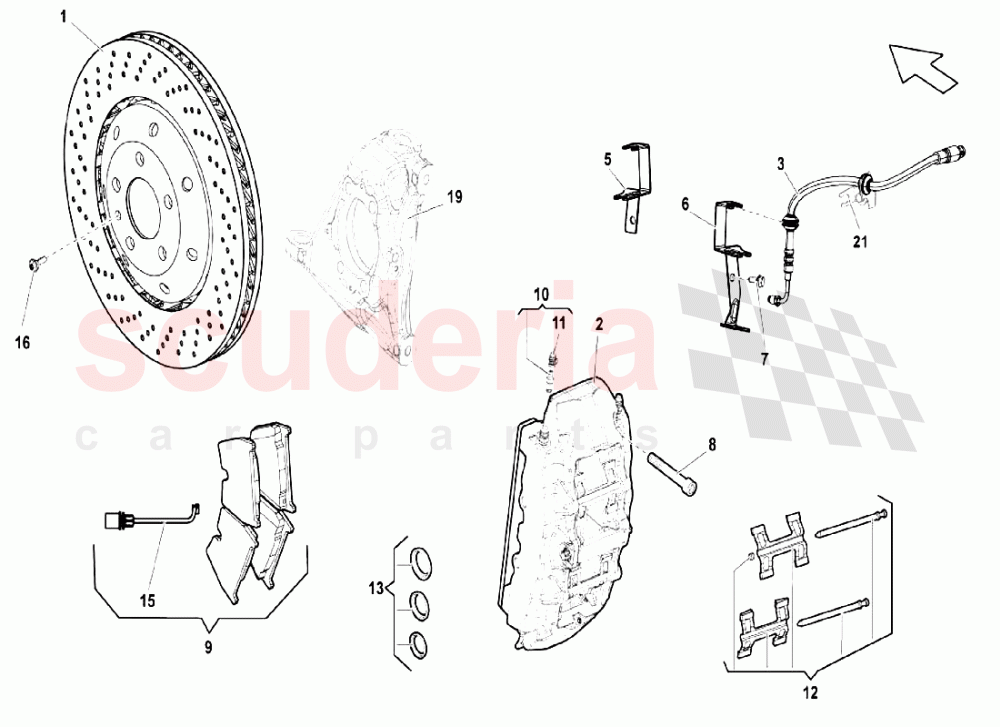

Lamborghini Gallardo LP550 Coupe - Disc Brake 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

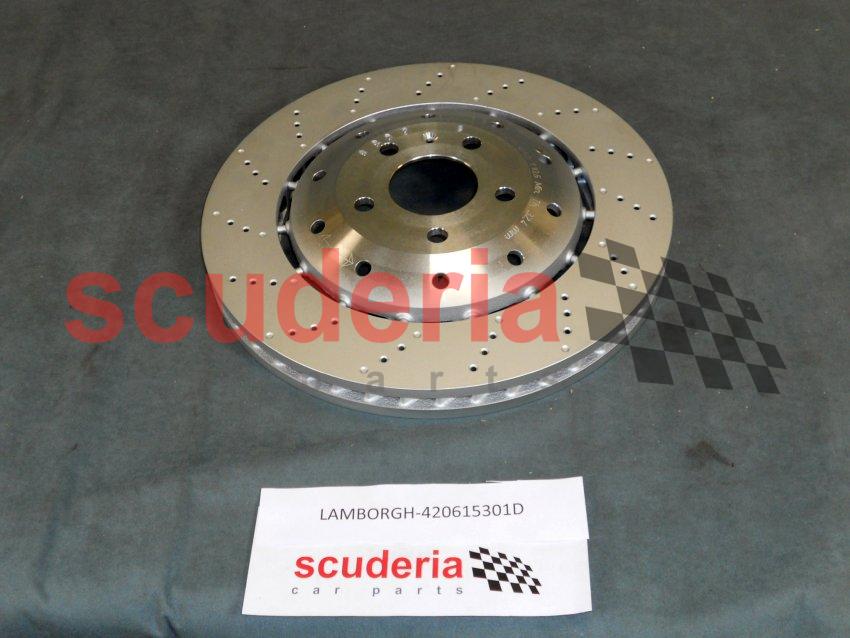

001	420615301D	Front Brake Rotor	420615301D Front Brake Rotor	-	2	Enquire
002	400615105BD	LH FRONT BRAKE CALIPER (BLACK FRONT CALIPERS)	400615105BD LH FRONT BRAKE CALIPER (BLACK FRONT CALIPERS)	-	1	Enquire
002	400615105BJ	Brake Caliper Housing (pinze Anter. Colorate Rosso-left Red)	400615105BJ Brake Caliper Housing (pinze Anter. Colorate Rosso-left Red)	-	1	Enquire

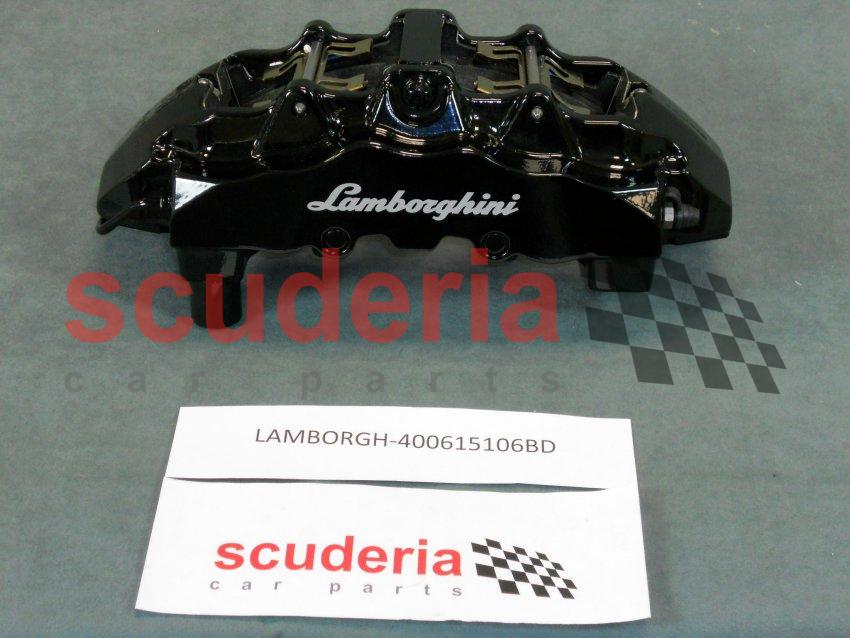

002	400615106BD	RH FRONT BRAKE CALIPER (BLACK FRONT CALIPERS)	400615106BD RH FRONT BRAKE CALIPER (BLACK FRONT CALIPERS)	-	1	Enquire
002	400615105BF	LH FRONT BRAKE CALIPER (GREY FRONT CALIPERS - FROM VIN BLA10052)	400615105BF LH FRONT BRAKE CALIPER (GREY FRONT CALIPERS - FROM VIN BLA10052)	-	1	Enquire
002	400615105BG	LH FRONT BRAKE CALIPER (ORANGE FRONT CALIPERS)	400615105BG LH FRONT BRAKE CALIPER (ORANGE FRONT CALIPERS)	-	1	Enquire
002	400615106BF	RH FRONT BRAKE CALIPER (GREY FRONT CALIPERS - FROM VIN BLA10052)	400615106BF RH FRONT BRAKE CALIPER (GREY FRONT CALIPERS - FROM VIN BLA10052)	-	1	Enquire
002	400615105BE	LH FRONT BRAKE CALIPER (YELLOW FRONT CALIPERS)	400615105BE LH FRONT BRAKE CALIPER (YELLOW FRONT CALIPERS)	-	1	Enquire
002	400615106BG	RH FRONT BRAKE CALIPER (ORANGE FRONT CALIPERS)	400615106BG RH FRONT BRAKE CALIPER (ORANGE FRONT CALIPERS)	-	1	Enquire
002	400615106BE	RH FRONT BRAKE CALIPER (YELLOW FRONT CALIPERS)	400615106BE RH FRONT BRAKE CALIPER (YELLOW FRONT CALIPERS)	-	1	Enquire
002	400615106BJ	Brake Caliper Housing (pinze Anter. Colorate Rosso-right Red)	400615106BJ Brake Caliper Housing (pinze Anter. Colorate Rosso-right Red)	-	1	Enquire
003	420611707B	HOSE	420611707B HOSE	-	2	Enquire
005	420611846A	RH BRACKET	420611846A RH BRACKET	-	1	Enquire
006	420611845B	LH BRACKET	420611845B LH BRACKET	-	1	Enquire
007	N01029316	SCREW M8X16	N01029316 SCREW M8X16	-	2	Enquire
008	WHT001330A	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT001330A SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	2	Enquire
009	400698151E	FRONT BRAKE PAD SET	400698151E FRONT BRAKE PAD SET	-	1	Enquire
010	8A0615273	1 SET BLEEDER VALVES WITH DUST CAP	8A0615273 1 SET BLEEDER VALVES WITH DUST CAP	-	2	Enquire
011	7D0611483	DUST CAP	7D0611483 DUST CAP	-	2	Enquire
012	3D0698269	1 SET ATTACHMENT PARTS	3D0698269 1 SET ATTACHMENT PARTS	-	2	Enquire
013	3D0698472	SEAL RING	3D0698472 SEAL RING	-	2	Enquire
015	400698137A	ELECTRIC CABLE	400698137A ELECTRIC CABLE	-	2	Enquire
016	N10648301	HEX SOCKET COUNTERSUNK BOLT	N10648301 HEX SOCKET COUNTERSUNK BOLT	-	2	Enquire
