Lamborghini Gallardo LP550 Coupe - Disc Brake 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

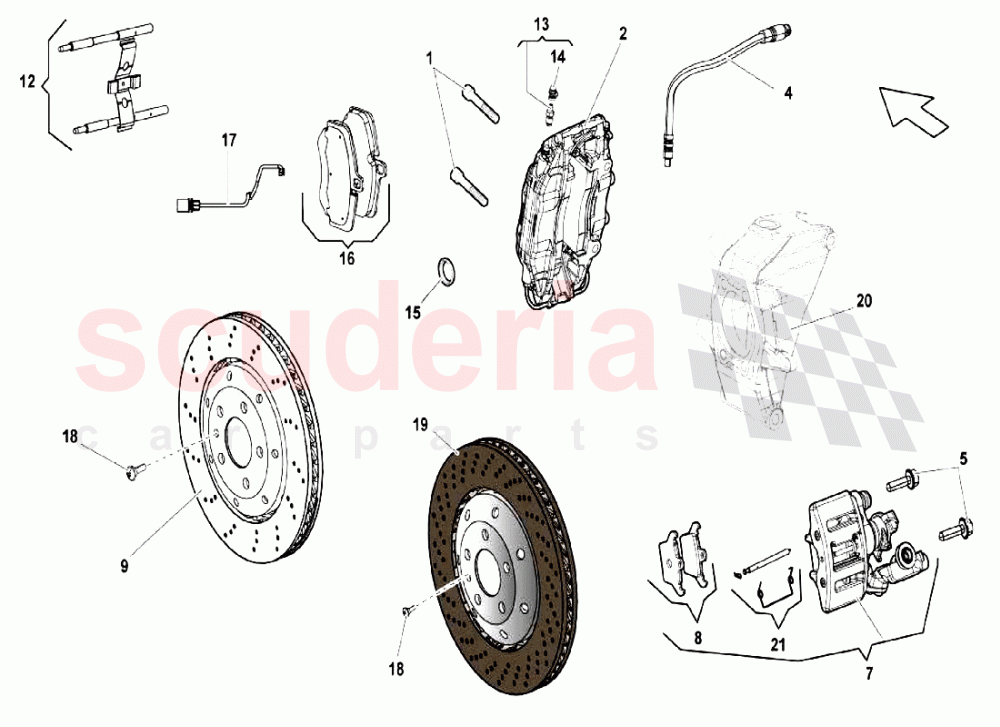

Disc Brake 2 of Lamborghini Lamborghini Gallardo LP550 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N91141801
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		$45.82 2
002 400615405AG
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS - FROM VIN ALA09511) 		$2,432.79 1
002 400615405AH
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW FRONT CALIPERS) 		$3,017.48 1
002 400615406AK
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - ORANGE REAR CALIPERS) 		$3,017.48 1
002 400615406AF
RH REAR BRAKE CALIPER (FROM VIN ALA09295 - ORANGE REAR CALIPERS) 		$1,512.11 1
002 400615405AJ
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) 		$3,998.66 1
002 400615405AC
LH REAR BRAKE CALIPER (FROM VIN ALA09237 - BLACK REAR CALIPERS) 		$1,512.11 1
002 400615405AF
LH REAR BRAKE CALIPER (FROM VIN ALA09295 - ORANGE REAR CALIPERS) 		$1,512.11 1
002 400615406AC
RH REAR BRAKE CALIPER (FROM VIN ALA09237 - BLACK REAR CALIPERS) 		$1,512.11 11
002 400615406AJ
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) 		$3,998.66 1
002 400615405AK
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - ORANGE REAR CALIPERS) 		$3,017.48 1
002 400615406AH
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW REAR CALIPERS) 		$3,017.48 1
004 420611775A
BRAKE HOSE 		$58.34 2
005 N91105601
HEX COLLARED BOLT 		$4.43 2
007 420615403B
LH HAND BRAKE CALIPER (STD/CCB) 		$2,137.10 1
007 420615404B
RH HAND BRAKE CALIPER (STD/CCB) 		$2,594.10 1
008 420698451D
HAND BRAKE PAD SET (STD/CCB) 		$273.51 1

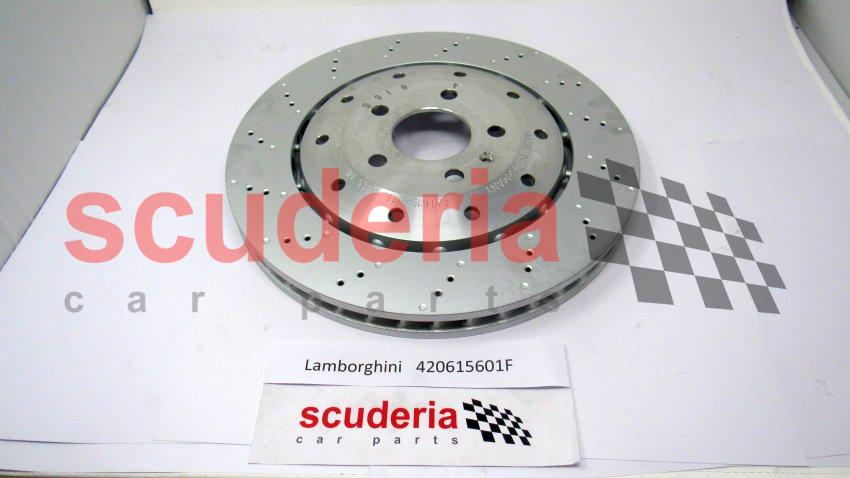

009 420615601F
Rear Brake Disc 		$741.96 2
012 420698269
1 SET ATTACHMENT PARTS 		$76.35 2
013 8A0615273
1 SET BLEEDER VALVES WITH DUST CAP 		$27.87 2
014 7D0611483
DUST CAP 		$15.41 2
015 420698671
SEAL RING 		$48.93 2

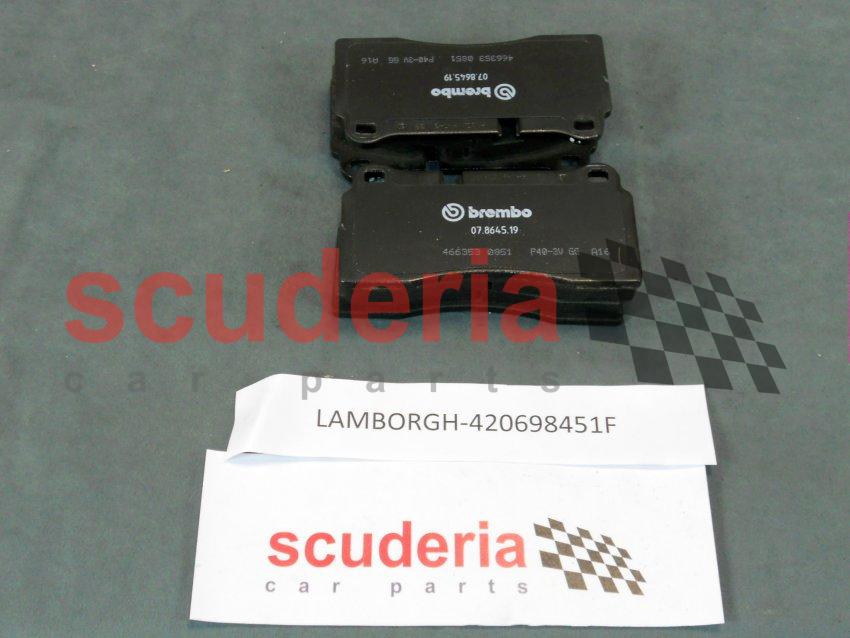

016 420698451F
Rear Brake Pad Set (Carbon Ceramic) 		$727.05 1
016 4S0698451AC
BRAKE PADS ET WITH WEAR INDICATOR 		$595.59 1

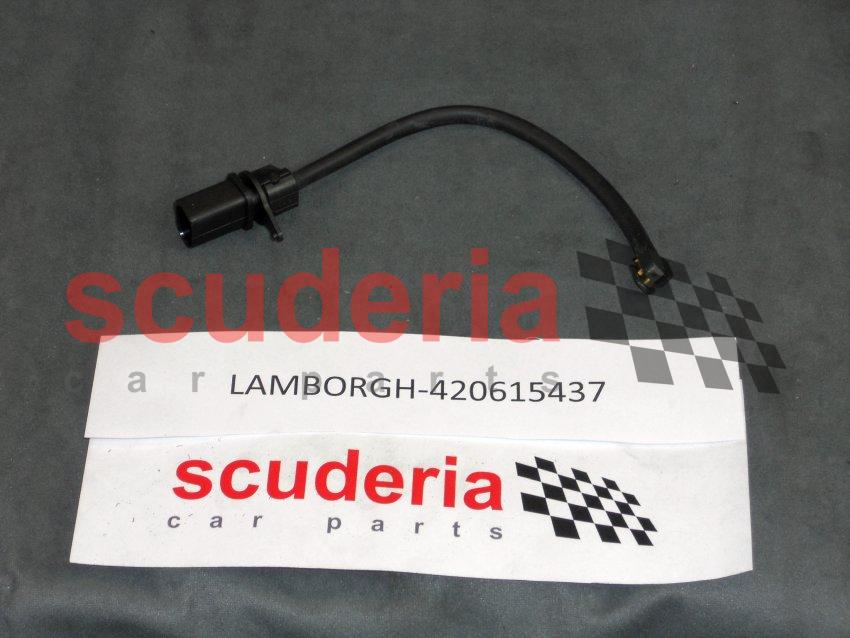

017 420615437
CONTACTS 		$66.80 1
018 N10648301
HEX SOCKET COUNTERSUNK BOLT 		$1.19 (83.7% off) -
019 420615602F
CCM RH REAR BRAKE DISC 		$8,514.76 1
019 420615601L
Rear Brake Disc (LH) 		$8,514.76 1
021 420698269A
JOURNAL AND CLIP SET 		$43.41 2
