Passenger Compartment Trim 1

Lamborghini Diablo VT (1993-1998)

Find Your Part

Lamborghini Diablo VT (1993-1998) - Passenger Compartment Trim 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

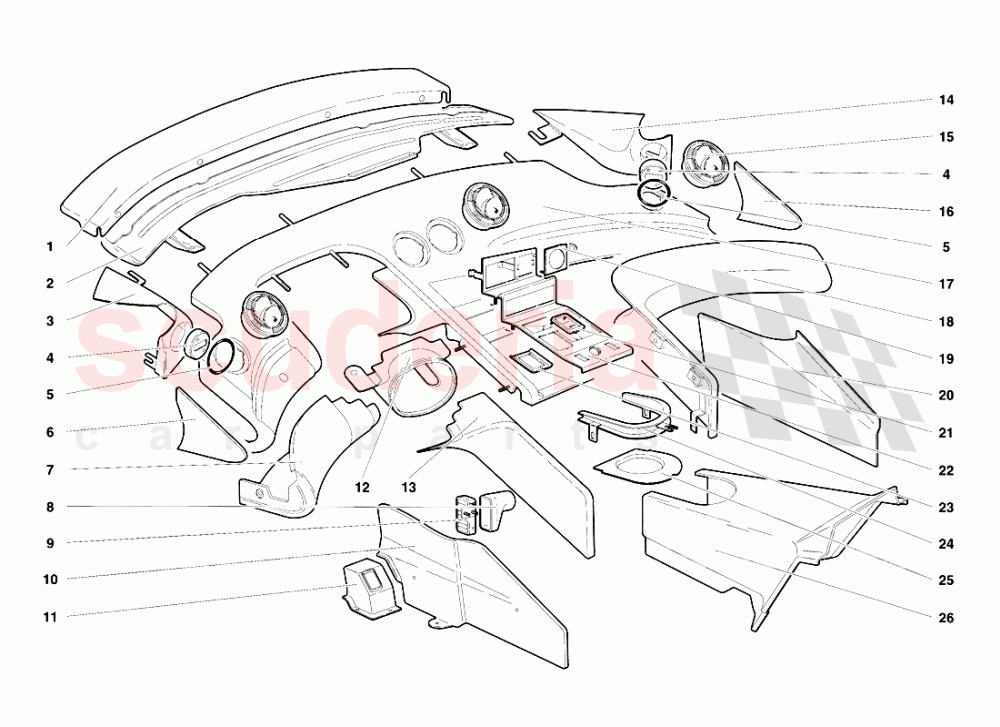

Passenger Compartment Trim 1 of Lamborghini Lamborghini Diablo VT (1993-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9414305
PANEL
PANNELLO SOTTO PARABREZZA 		- 1 Enquire
002 9414019
CONVEYOR
CONVOGLIATORE 		- 1 Enquire
003 9414334
LEFT PANEL
PANNELLO TWEETER SX 		- 1 Enquire
004 9414335
TWEETER SUPPORT
SUPPORTO TWEETER 		- 2 Enquire
005 8604601
RING
ANELLO 		- 2 Enquire
006 9414307
LEFT SIDE PANEL
FIANCHETTO SX 		- 1 Enquire
007 9414301
PANEL
PANNELLO 		- 1 Enquire
008 9458356
UNION
BOCCHETTONE 		- 1 Enquire
009 9458361
GRILLE
GRIGLIA 		- 1 Enquire
010 9414336
PANEL
PANNELLO 		- 1 Enquire
011 9458364
CASE
SCATOLA 		- 1 Enquire
012 9414321
COVERING
RIVESTIMENTO 		- 1 Enquire
013 9414300
PANEL
PANNELLO 		- 1 Enquire
014 9414333
RIGHT PANEL
PANNELLO TWEETER DX 		- 1 Enquire
015 9414507
air vent
BOCCHETTONE 		- 4 Enquire
016 9414306
RIGHT SIDE PANEL
FIANCHETTO DX 		- 1 Enquire
017 9414100
DASHBOARD PANEL
CRUSCOTTO 		- 1 Enquire
018 9414302
PANEL
PANNELLO 		- 1 Enquire
019 9414103
FRAME
CORNICE 		- 1 Enquire
020 9414303
PANEL
PANNELLO 		- 1 Enquire
021 9414112
FRAME
CORNICE 		- 1 Enquire
022 9414111
TUNNEL PANEL
PLANCIA TUNNEL 		- 1 Enquire
023 9414113
PLATE
PIASTRA 		- 1 Enquire
024 9458430
FRAME
CORNICE 		- 1 Enquire
025 9458423
PLATE
PIASTRA 		- 1 Enquire
026 9458401
TUNNEL COVERING
RIVESTIMENTO TUNNEL 		- 1 Enquire
